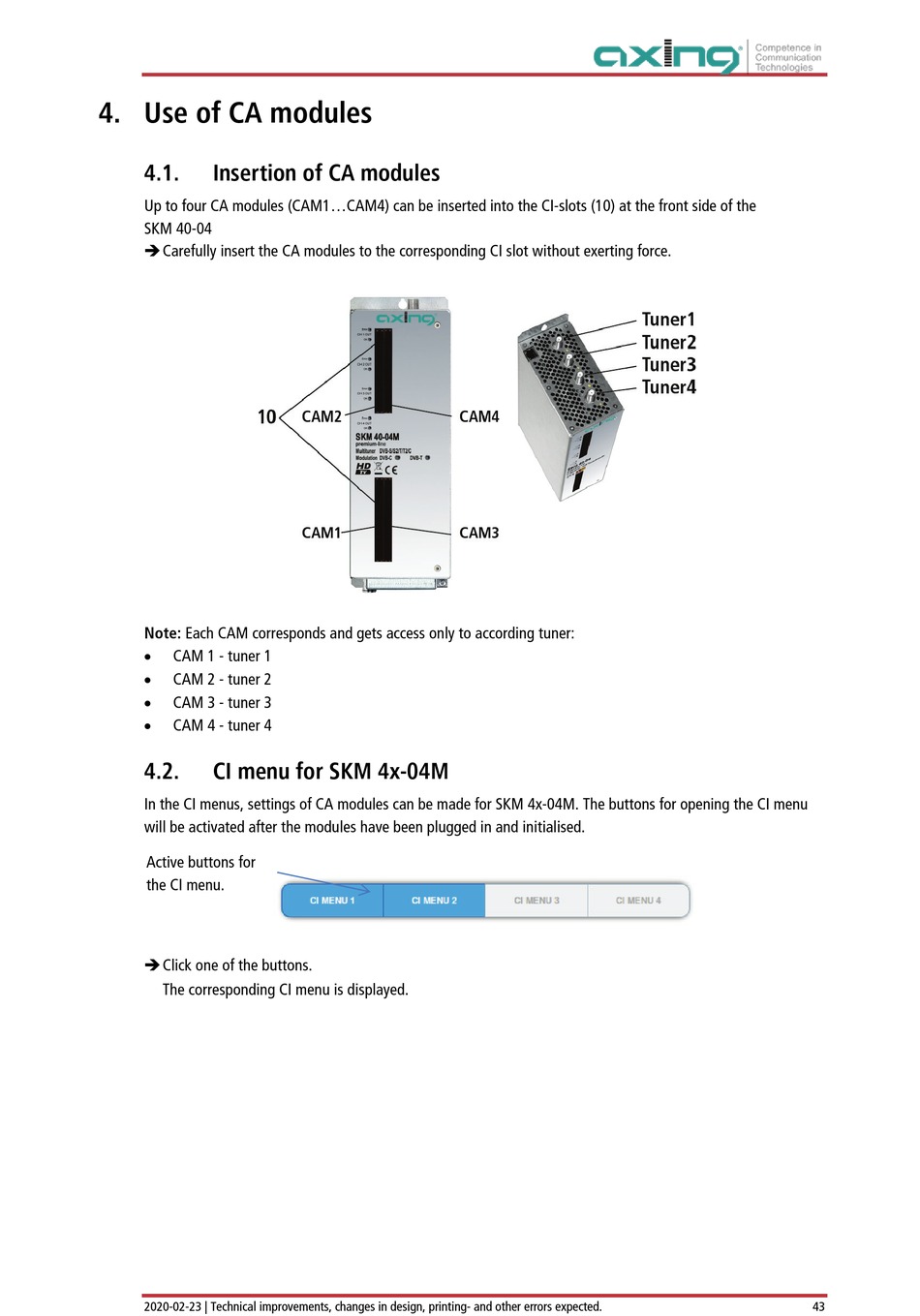

4. Use of CA modules

4.1.

Insertion of CA modules

Up to four CA modules (CAM1...CAM4) can be inserted into the CI-slots (10) at the front side of the
SKM 40­04
 Carefully insert the CA modules to the corresponding CI slot without exerting force.
Note: Each CAM corresponds and gets access only to according tuner:
•
CAM 1 - tuner 1
•
CAM 2 - tuner 2
•
CAM 3 - tuner 3
•
CAM 4 - tuner 4
4.2.

CI menu for SKM 4x-04M

In the CI menus, settings of CA modules can be made for SKM 4x-04M. The buttons for opening the CI menu
will be activated after the modules have been plugged in and initialised.
Active buttons for
the CI menu.
 Click one of the buttons.
The corresponding CI menu is displayed.
2020-02-23 | Technical improvements, changes in design, printing- and other errors expected. 43
