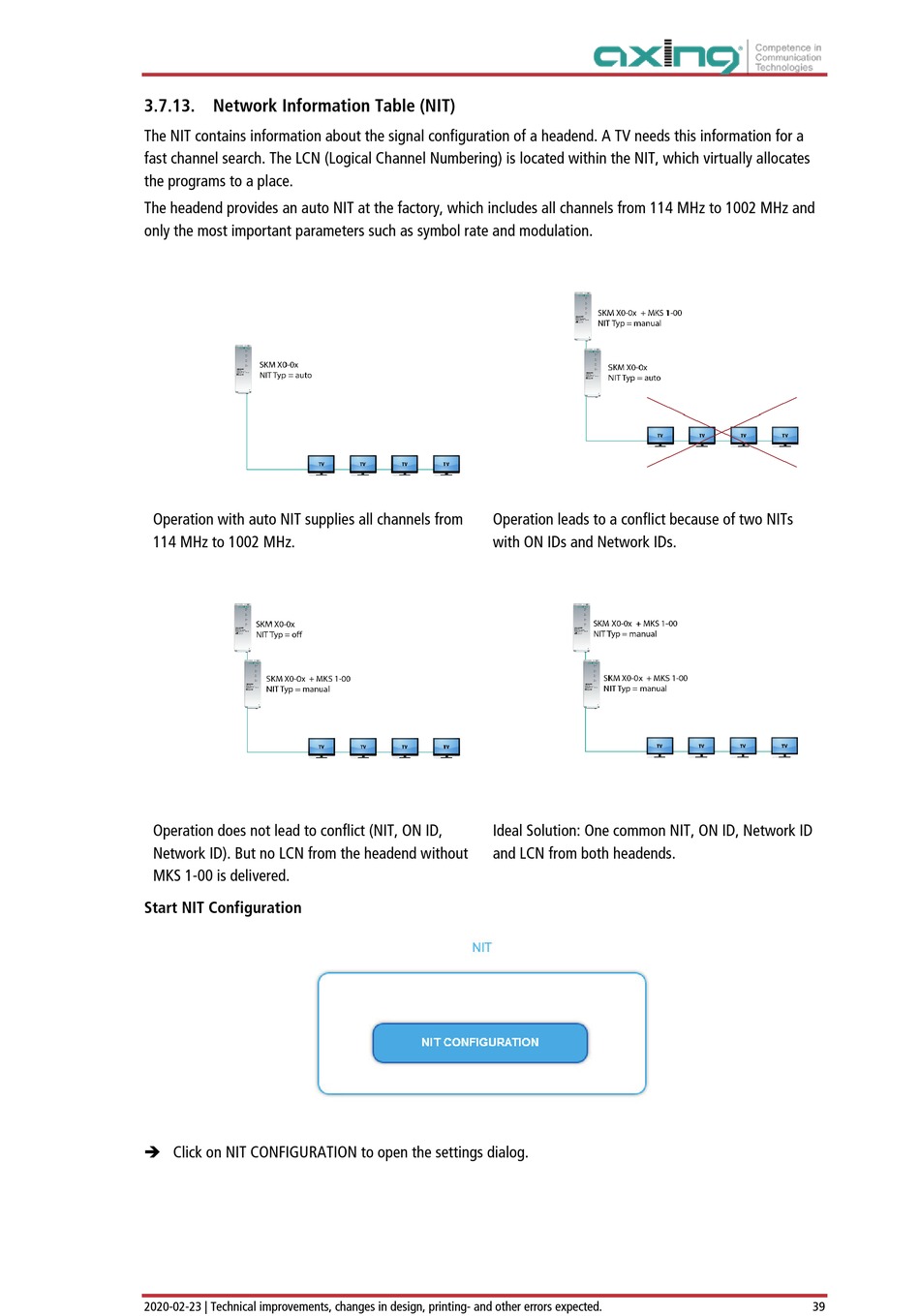

3.7.13. Network Information Table (NIT)

The NIT contains information about the signal configuration of a headend. A TV needs this information for a
fast channel search. The LCN (Logical Channel Numbering) is located within the NIT, which virtually allocates
the programs to a place.
The headend provides an auto NIT at the factory, which includes all channels from 114 MHz to 1002 MHz and
only the most important parameters such as symbol rate and modulation.
Operation with auto NIT supplies all channels from
114 MHz to 1002 MHz.
Operation does not lead to conflict (NIT, ON ID,
Network ID). But no LCN from the headend without
MKS 1-00 is delivered.
Start NIT Configuration
 Click on NIT CONFIGURATION to open the settings dialog.
2020-02-23 | Technical improvements, changes in design, printing- and other errors expected.
Operation leads to a conflict because of two NITs
with ON IDs and Network IDs.
Ideal Solution: One common NIT, ON ID, Network ID
and LCN from both headends.
