General Notices; Double-Ended Bench Grinder - Scheppach BG200W Originalbetriebsanweisung

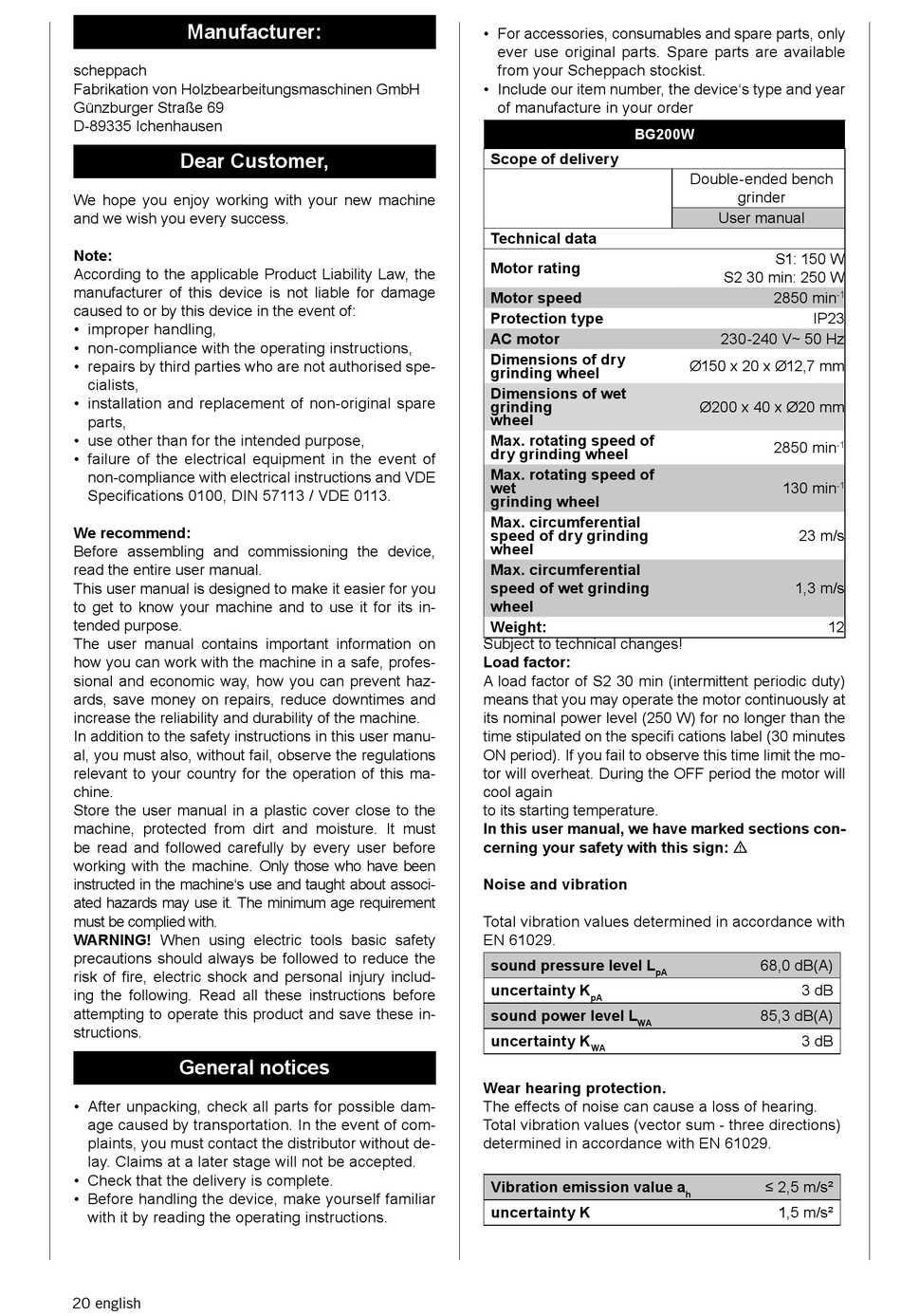

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope you enjoy working with your new machine
and we wish you every success.
Note:
According to the applicable Product Liability Law, the
manufacturer of this device is not liable for damage
caused to or by this device in the event of:
• improper handling,
• non-compliance with the operating instructions,
• repairs by third parties who are not authorised spe-
cialists,
• installation and replacement of non-original spare
parts,
• use other than for the intended purpose,
• failure of the electrical equipment in the event of
non-compliance with electrical instructions and VDE
Specifications 0100, DIN 57113 / VDE 0113.
We recommend:
Before assembling and commissioning the device,
read the entire user manual.
This user manual is designed to make it easier for you
to get to know your machine and to use it for its in-
tended purpose.
The user manual contains important information on
how you can work with the machine in a safe, profes-
sional and economic way, how you can prevent haz-
ards, save money on repairs, reduce downtimes and
increase the reliability and durability of the machine.
In addition to the safety instructions in this user manu-
al, you must also, without fail, observe the regulations
relevant to your country for the operation of this ma-
chine.
Store the user manual in a plastic cover close to the
machine, protected from dirt and moisture. It must
be read and followed carefully by every user before
working with the machine. Only those who have been
instructed in the machine's use and taught about associ-
ated hazards may use it. The minimum age requirement
must be complied with.
WARNING! When using electric tools basic safety
precautions should always be followed to reduce the
risk of fire, electric shock and personal injury includ-
ing the following. Read all these instructions before
attempting to operate this product and save these in-
structions.

General notices

• After unpacking, check all parts for possible dam-
age caused by transportation. In the event of com-
plaints, you must contact the distributor without de-
lay. Claims at a later stage will not be accepted.
• Check that the delivery is complete.
• Before handling the device, make yourself familiar
with it by reading the operating instructions.
20 english
• For accessories, consumables and spare parts, only
ever use original parts. Spare parts are available
from your Scheppach stockist.
• Include our item number, the device's type and year
of manufacture in your order
BG200W
Scope of delivery
Technical data
Motor rating
Motor speed
Protection type
AC motor
Dimensions of dry
grinding wheel
Dimensions of wet
grinding
wheel
Max. rotating speed of
dry grinding wheel
Max. rotating speed of
wet
grinding wheel
Max. circumferential
speed of dry grinding
wheel
Max. circumferential
speed of wet grinding
wheel
Weight:
Subject to technical changes!
Load factor:
A load factor of S2 30 min (intermittent periodic duty)
means that you may operate the motor continuously at
its nominal power level (250 W) for no longer than the
time stipulated on the specifi cations label (30 minutes
ON period). If you fail to observe this time limit the mo-
tor will overheat. During the OFF period the motor will
cool again
to its starting temperature.
In this user manual, we have marked sections con-
cerning your safety with this sign: m
Noise and vibration
Total vibration values determined in accordance with
EN 61029.
sound pressure level L
uncertainty K
pA
sound power level L
WA
uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three directions)
determined in accordance with EN 61029.
Vibration emission value a
uncertainty K
Double-ended bench
grinder
User manual
S1: 150 W
S2 30 min: 250 W
2850 min
IP23
230-240 V~ 50 Hz
Ø150 x 20 x Ø12,7 mm
Ø200 x 40 x Ø20 mm
2850 min
130 min
23 m/s
1,3 m/s
68,0 dB(A)
pA
3 dB
85,3 dB(A)
3 dB
≤ 2,5 m/s²
h
1,5 m/s²
-1
-1
-1
12
