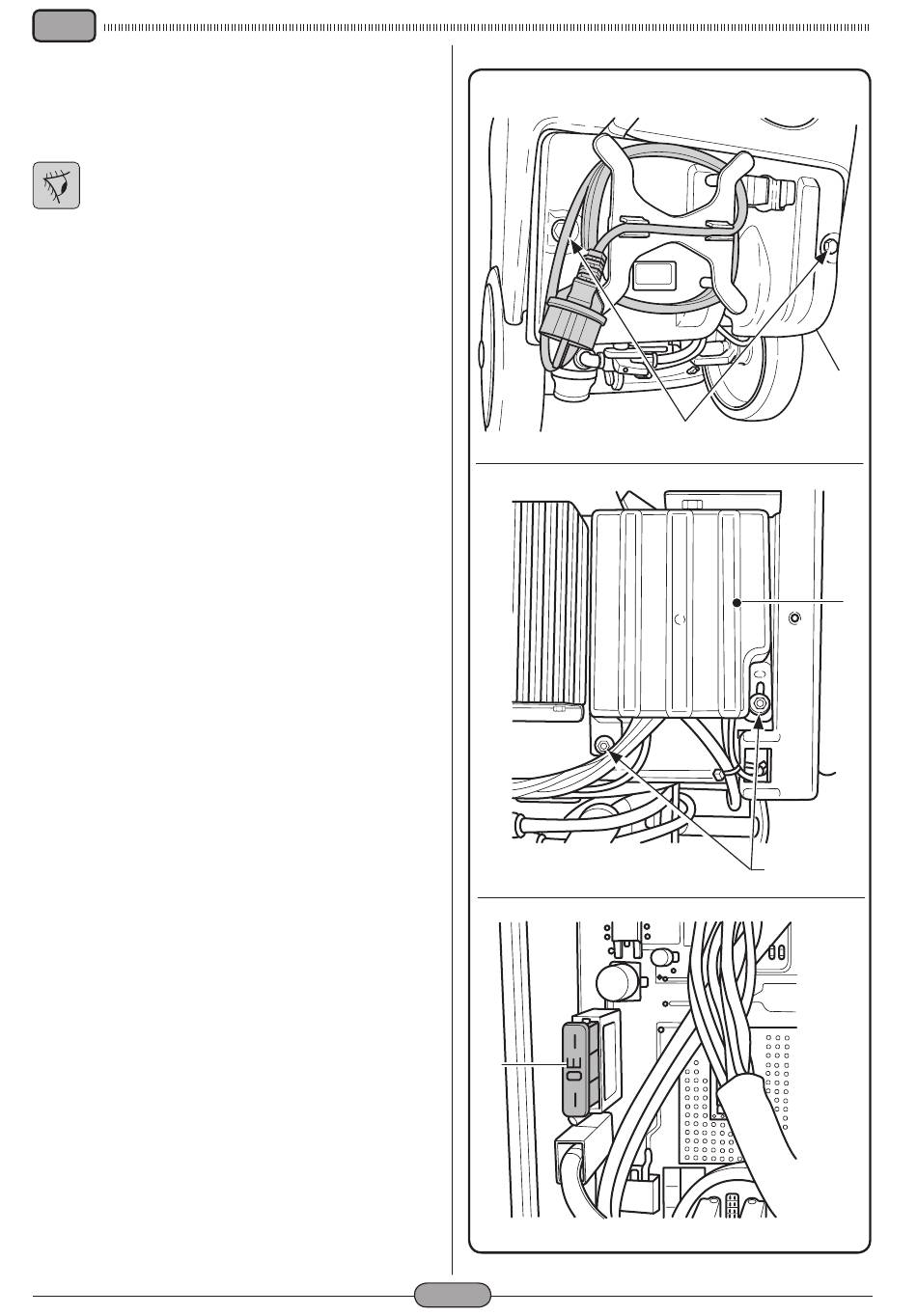

11.1.h - Replacing the fuses
(for CB version only)
(Fig. 20)
WARNING:
Replace the blown fuse with one with the
same amperage.
- Unscrew the two bolts (1) that fasten the
external box (2) and remove it.
- Unscrew the two bolts (3) of the printed
circuit board (4) and remove it.
Fuse (5) Green 30A
Machine general protection.
- Put the cover (4) and the box (2) back
into place in reverse sequence.
