MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)

14 Installation of extension set

If the basic unit of the MSH Basic-FUBO-E-R3 (R2, R5) is
1
concreted in too deeply, it is possible to extend the basic
unit as required by mounting additional compensation
frames (see fi g.: 31).

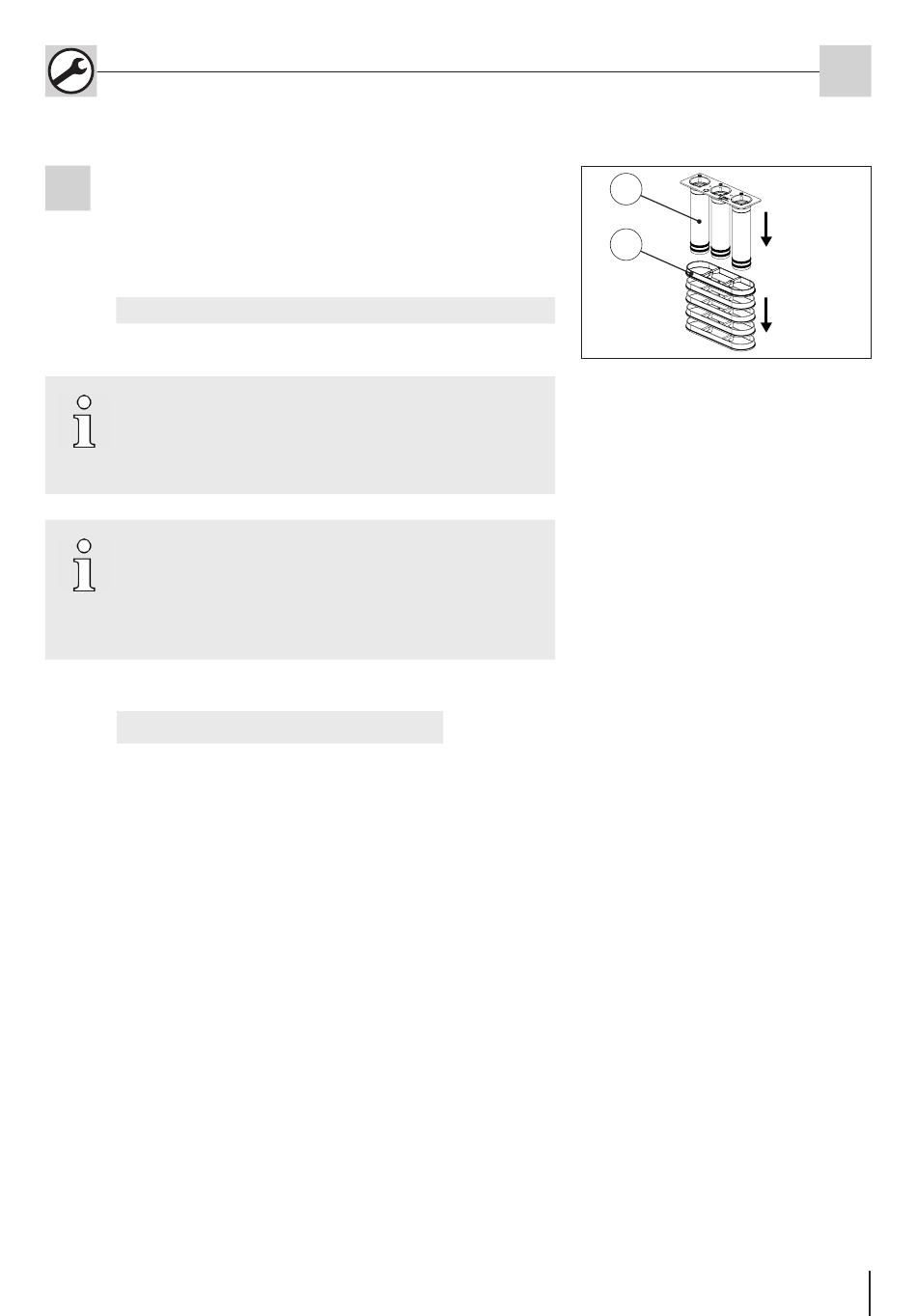

Legend for fi g.: 31
1 MSH Basic-MB-R3 (R2, R5) seal insert – custom length
2 Compensation frames
If the basic unit is to be extended by more than
one compensation frame, a MSH Basic-MB-R3
(R2, R5) seal insert is required in custom length. If
this is the case, please contact our Service Team!
Frame extensions
• 1 frame extension = standard seal insert.
• 2 - 9 frame extensions = extended seal insert.
• from 10 frame extensions, please contact our
Service Team!
Service telephone +49 7322 1333-0
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
1
2
Subject to change�
EN
Fig.: 31
37
