Hauff-Technik MSH Basic-FUBO-E-R3 Montageanweisung Seite 32

MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)

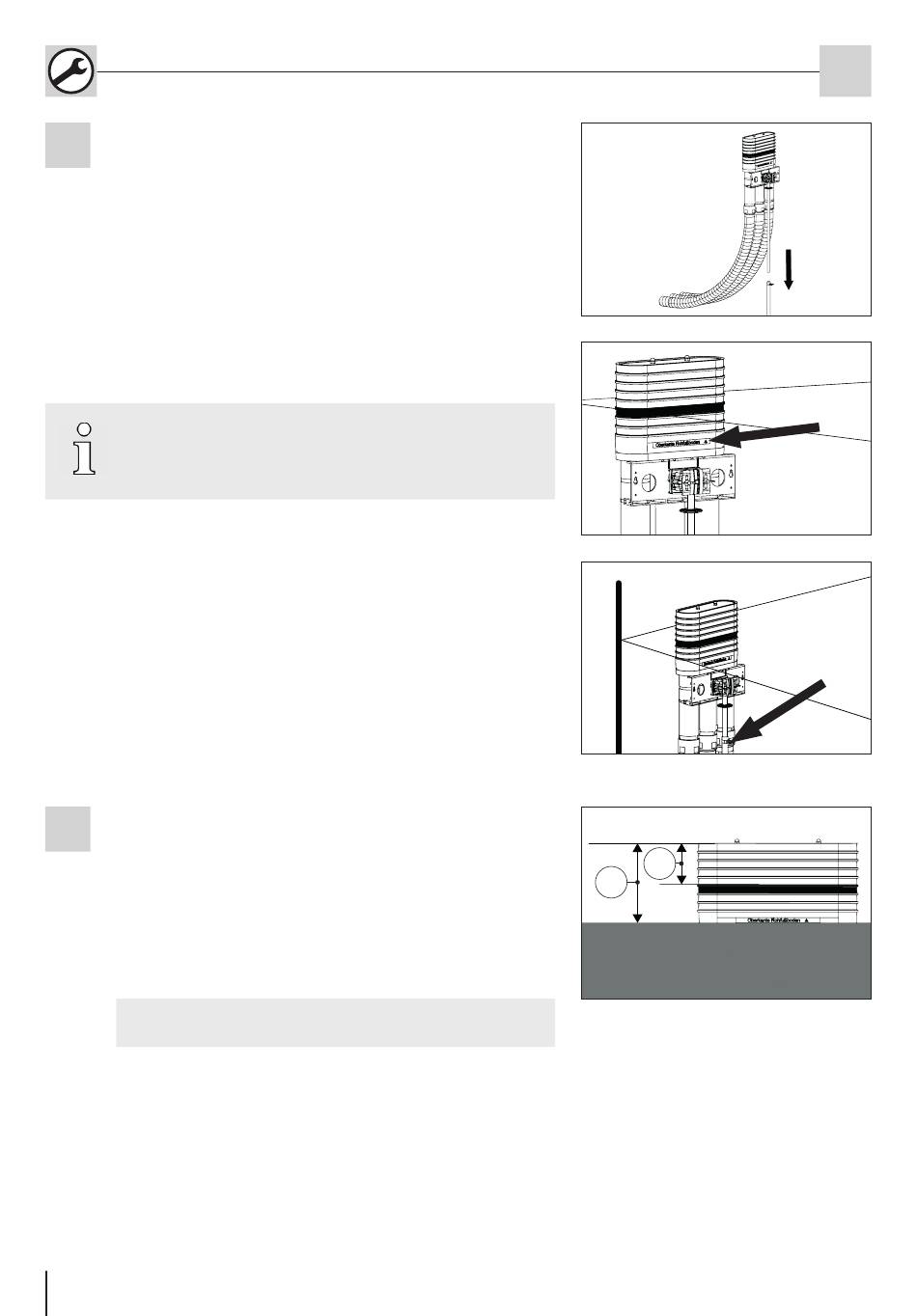

Place the MSH Basic-FUBO-E-R3 (R2, R5) basic unit with
9
inserted KES hose systems onto the ground spike that has
been driven into the ground (see fi g.: 14).
Then align the basic unit with the height of the unfi nished
fl oor level (see fi g.: 15).
The marking "Upper edge of unfi nished fl oor" is
to be found on the MSH Basic-FUBO-E-R3 (R2, R5)
basic unit (see fi g.: 15)!
When height adjustment is complete, fi x the wing screw
so as to fasten the construction (see fi g.: 16).
When correctly positioned, the shell component/
10
wall sleeve is 200 mm above the unfi nished fl oor (see
fi g.:17).
The system allows shortening of the shell component/
wall sleeve to the later fl oor superstructure/ fi nished fl oor
height by 130 mm (see fi g.: 17).
Legend for fi g.: 17
1 Protrusion of shell component/wall sleeve above
unfi nished fl oor 220 mm
2 Range which can be shortened 130 mm
32
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
Fig.: 16
2
1
EN
Fig.: 14
Fig.: 15
Fig.: 17
