MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)

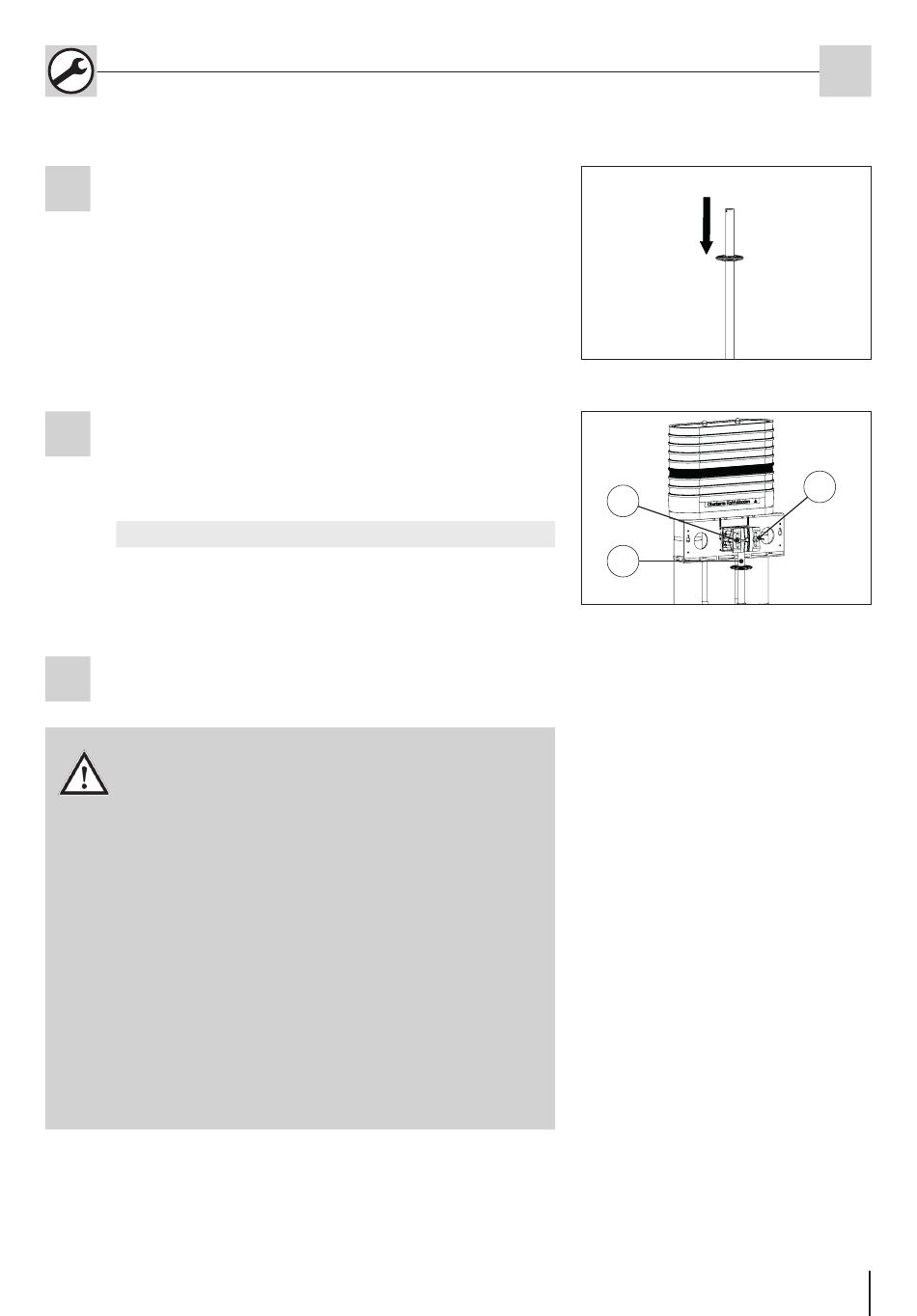

12 Mount MSH Basic-FUBO-E-R3 (R2, R5)

Position the pre-assembled water barrier fl ange on the
1
installation fi xture approx. 15 cm from the edge of the
pipe (see fi g.: 2).
The MSH Basic-FUBO-E-R3 (R2, R5) basic unit and instal-
2
lation fi xture are fi tted together and attached with the
wing screws (see fi g.: 3).
Legend for fi g.: 3
1 Wing screw
2 Installation fi xture
3
NOTE!
No sealing due to incorrect assembly!
Improper installation can result in damage.
• When positioning the multi-line building entry,
care must be taken to ensure that the installation
fi xture does not hinder the empty conduit route
(spiral hose KES).
• Minimum space between inside of wall (fi nished,
plastered wall) to outer side of basic unit: 5 cm.
• The basic unit must not be covered by the inner
walls later (shell wall + plaster).
• The inner pipes should be arranged parallel to
the sides of the wall.
• The position of the MSH Basic-FUBO-E-R3 (R2,
R5) must always be agreed on with the energy
suppliers!
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
1
2
EN
Fig.: 2
1
Fig.: 3
