MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)
11�1 Dimensions
8

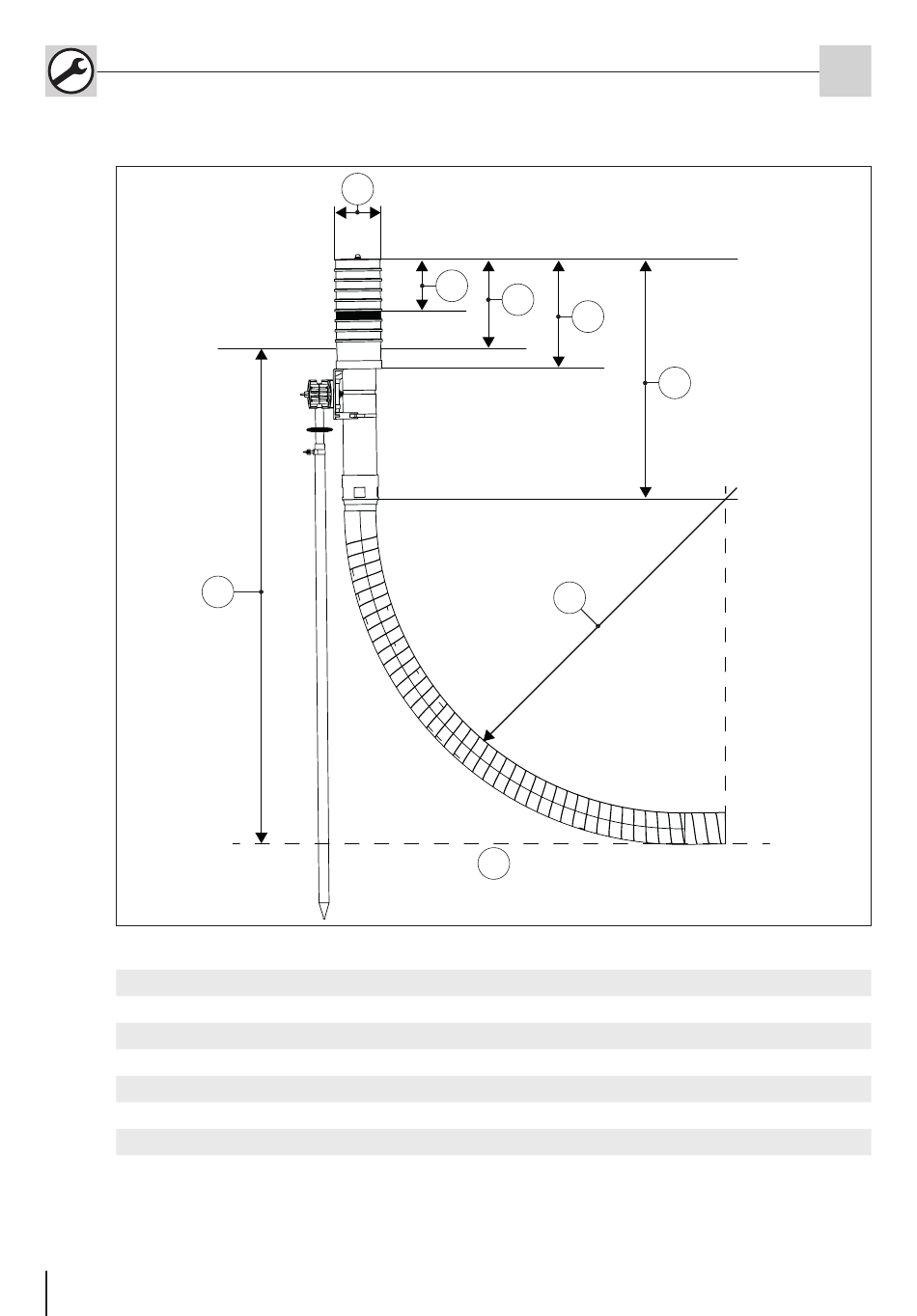

Legend for fig.: MSH Basic-FUBO-E-R3 (R2, R5)
1 Length x Width (R2: 232 x 114 mm, R3: 353 x 114 mm, R5: 595 x 114 mm)
2 Range which can be shortened: 130 mm
3 Marking of unfinished floor upper edge: 220 mm
4 Length Pot: 270 mm
5 Length Total: 607 mm
6 Bend radius ≥ 1000 mm
7 Trench bottom
8 Spacing between trench bottom and upper edge of unfinished floor at least 1500 mm
28
1
2
7
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
3
4
5
6
EN
Fig.: MSH Basic-FUBO-E-R3 (R2, R5)
