Hauff-Technik MSH Basic-FUBO-E-R3 Montageanweisung Seite 31

MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)

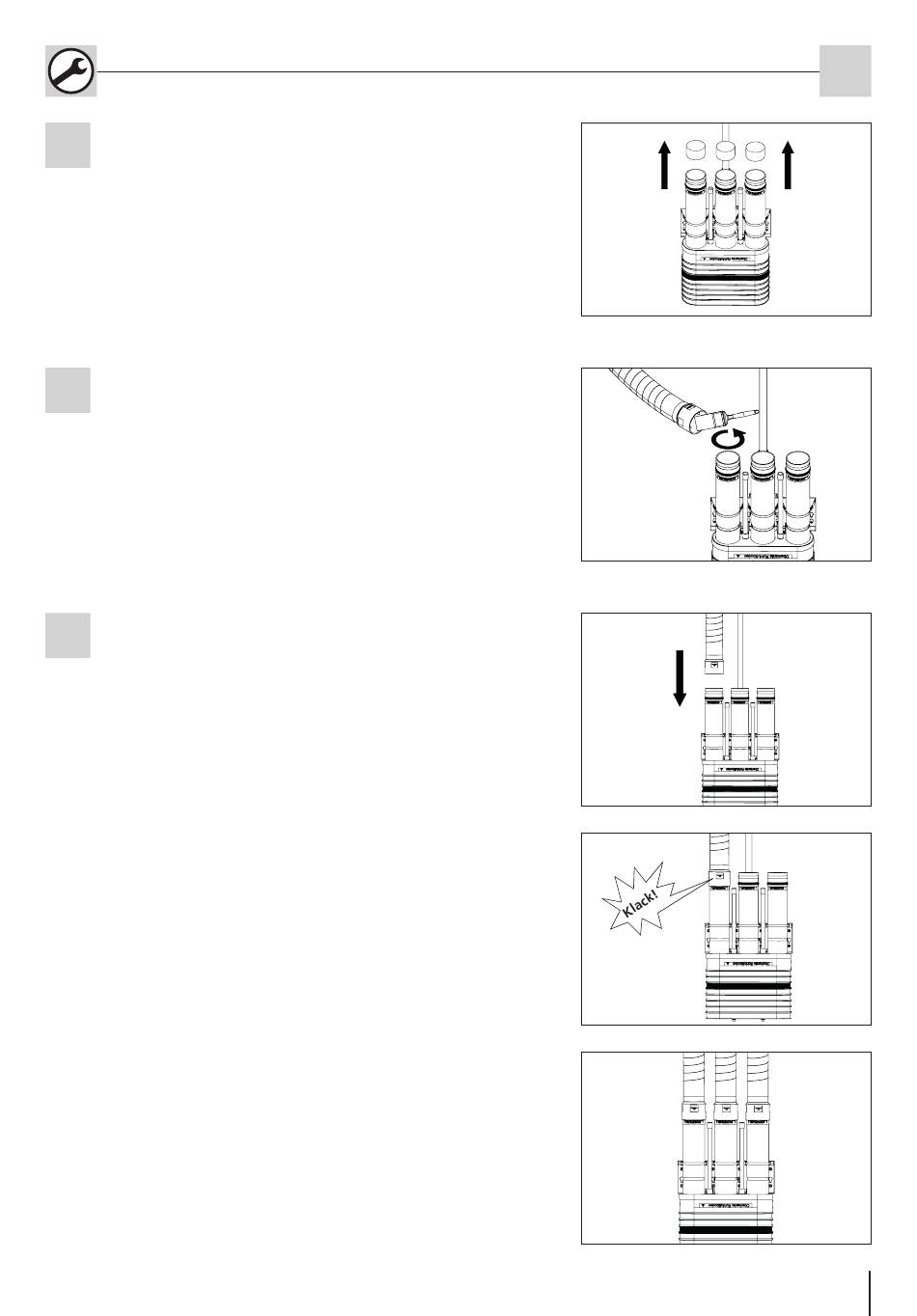

Place MSH Basic-FUBO-E-R3 (R2, R5) basic unit upside
6
down on the ground.
Remove PE closing cover from the pipes (see fig.: 9).
Spread sufficient lubricant (e.g. GMT or GML) on the KES
7
hose systems on the inside of the locking sleeve and the
sealing rings at the end of the pipes (see fig.: 10).
Insert KES hose systems with the locking sleeve side onto the
8
pipe ends until they audibly engage (see fig.: 11 and 12).
► MSH Basic-FUBO-E-R3 (R2, R5) basic unit with inserted
KES hose systems (see fig.: 13).
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
EN
Fig.: 9
Fig.: 10
Fig.: 11
Fig.: 12
Fig.: 13
31
