MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)

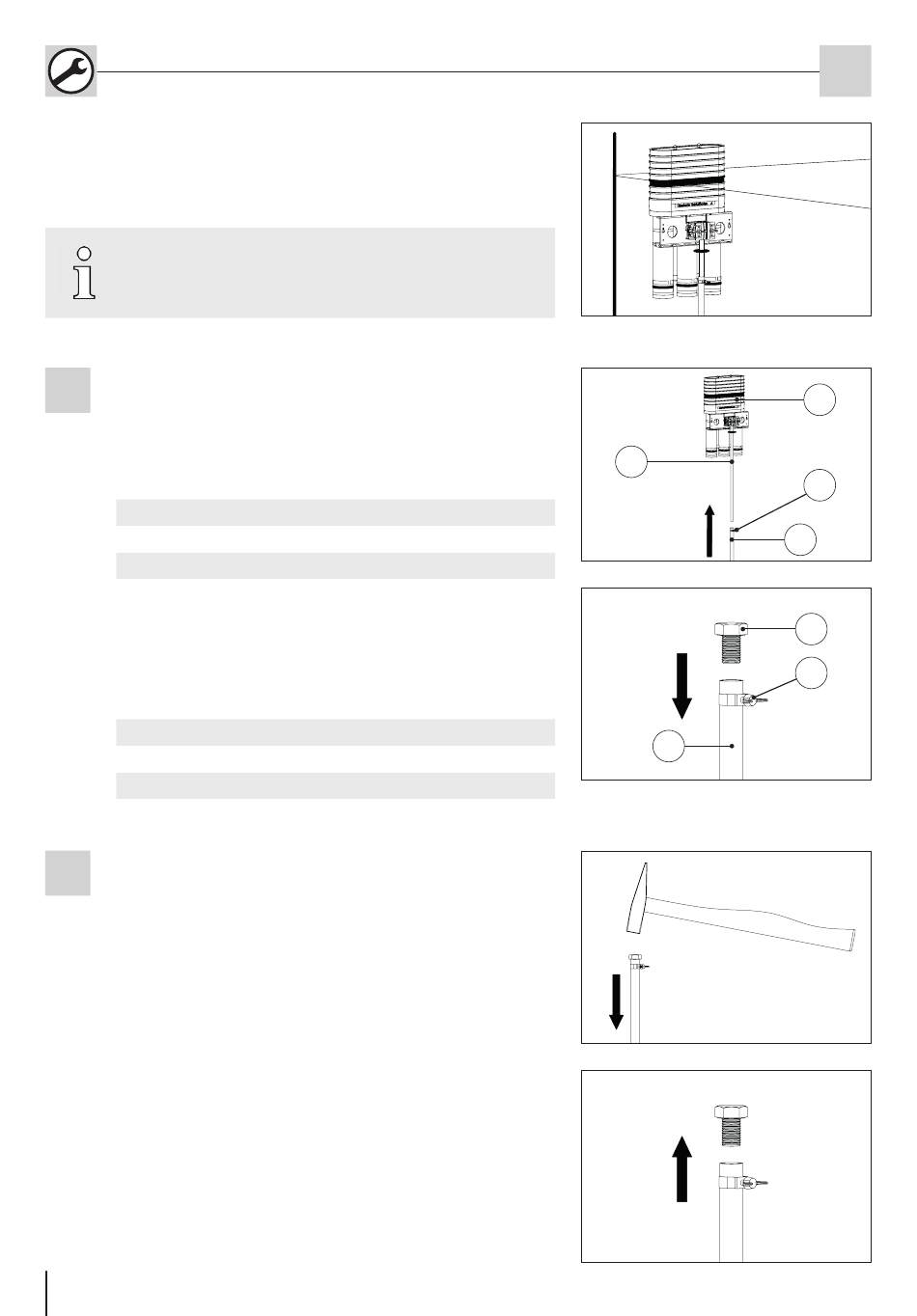

Align the MSH Basic-FUBO-E-R3 (R2, R5) basic unit longi-
tudinally from its position on the batter board.
The exact height position is not yet relevant at this stage
(see fi g.: 4).
Observe recommended wall spacing of at least 5
cm (wall inner side incl. plasterwork)!
Release wing screw on ground spike. Hold onto ground
4
spike and pull MSH Basic-FUBO-E-R3 (R2, R5) basic unit
out of the ground spike together with the installation
fi xture (see fi g.: 5).
Legend for fi g.: 5
1 MSH Basic-FUBO-E-R3 (R2, R5) basic unit
2 Installation fi xture
3 Wing screw
4 Ground spike
Insert the impact screw included in the ground spike and
attach with the wing screw (see fi g.: 6).
Legend for fi g.: 6
1 Impact screw
2 Wing screw
3 Ground spike
Strike the ground spike into the ground by approx. 300
5
mm or until suffi ciently fi rmly inserted (see fi g.: 7).
Open wing screw and remove impact screw once again
(see fi g.: 8).
30
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
2
4
3
EN
Fig.: 4
1
3
Fig.: 5
1
2
Fig.: 6
Fig.: 7
Fig.: 8
