MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)
Now the various connection lines for power, gas, water and
3
telecommunications can be fed in from the outside through
the ducts into the building connection room (see fi g.: 27).
• Consult the supplier before feeding through the
media lines.
• Installation of the section sealing elements
is carried out according to the installation
instructions "PolySafe sealing elements and
sleeve caps".
If a gas fi tting is to be installed, the pre-assembled se-
4
condary sealing element must be spread suffi ciently with
GMT lubricant (see fi g.: 28).
Legend for fi g.: 28
1 Secondary sealing element
Introduce individual sealing elements and gas building
5
entry into the MSH Basic-MB-R3 (R2, R5) seal insert.
Then tighten the fl aps of the sealing element with the M8
x 45 screws until they are fl ush with the inner plate of the
MSH or a torque of 14 Nm has been reached (see fi g.: 29).
IMPORTANT!
No sealing due to incorrect installation!
Improper installation can result in damage.
• All three (or two or fi ve) sealing elements must
be installed, even if only some of the media
channels are to be used.
• If no gas fi tting is to be installed for the time
being, a blind sealing element must be fi tted.
► Ready installed MSH Basic-MB-R3 (R2, R5) seal insert
(see fi g.: 30).
36
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
EN

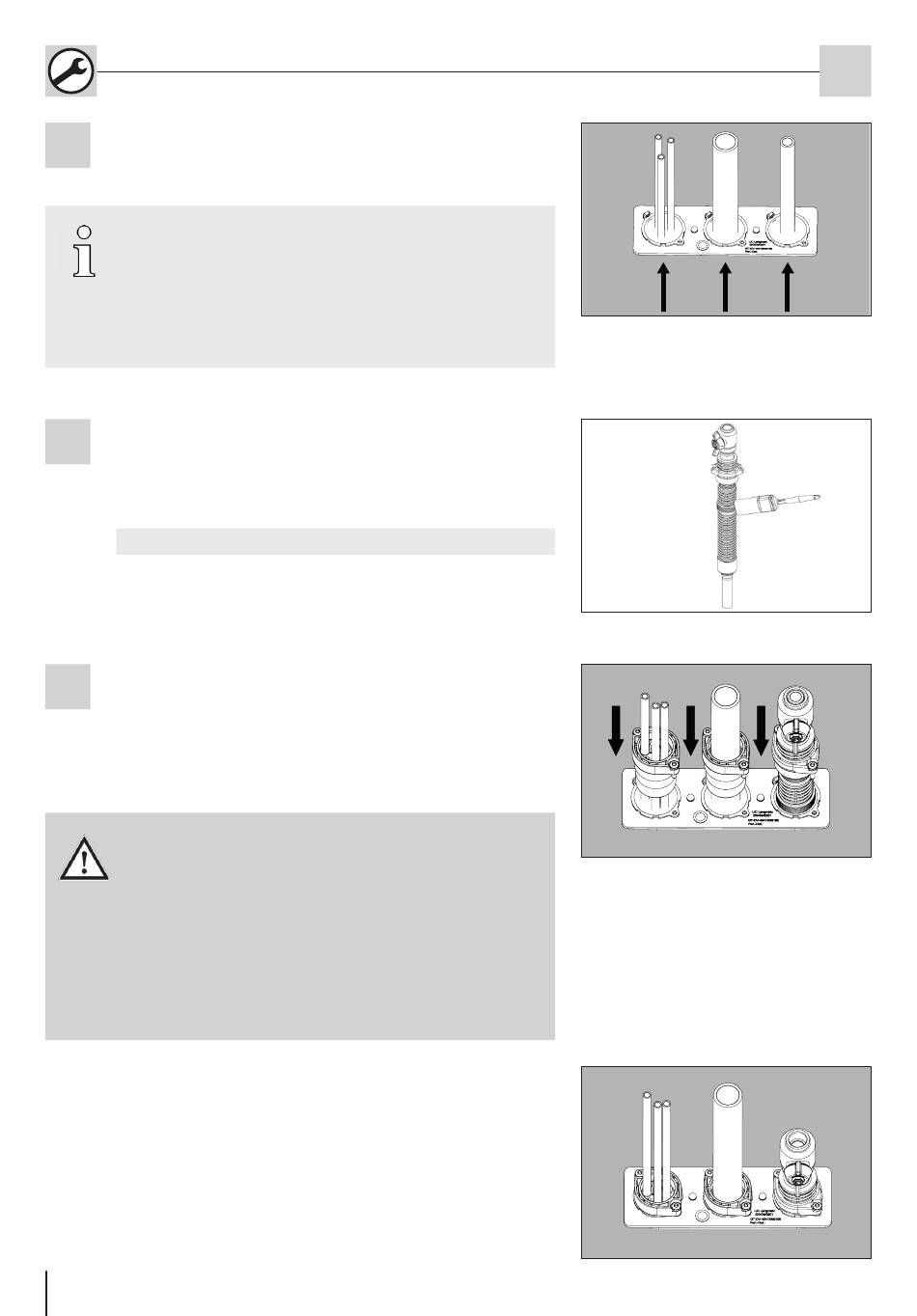

Fig.: 27
