MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)
Shortening of the wall sleeve by removal of the individual
compensation frames (see fi g.: 23).
Legend for fi g.: 23
1 Protrusion of wall sleeve above fi nished fl oor
2 Compensation frames
3 Upper edge of fi nished fl oor
If it is not possible to shorten to fi nished fl oor
height for technical reasons, the wall sleeve may
protrude above the upper edge of the fi nished
fl oor by max. 50 mm!
Then spread suffi cient GMT lubricant on the sealing rings
of the seal insert and the inside of the adaptation pipes
of the basic unit (see fi g.: 24).
Now insert the seal insert completely from the building
2
connection room into the concreted MSH Basic-FUBO-E-R3
(R2, R5) wall sleeve until the fl ange is resting on the fi nished
fl oor (see fi g.: 25).
Legend for fi g.: 25
1 MSH Basic-MB-R3 (R2, R5) seal insert
Then screw the seal insert tight with the previously removed
cap nuts/threaded rods (see fi g.: 26).
Legend for fi g.: 26
1 Cap nut
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
2
1
1
1 1
EN
3

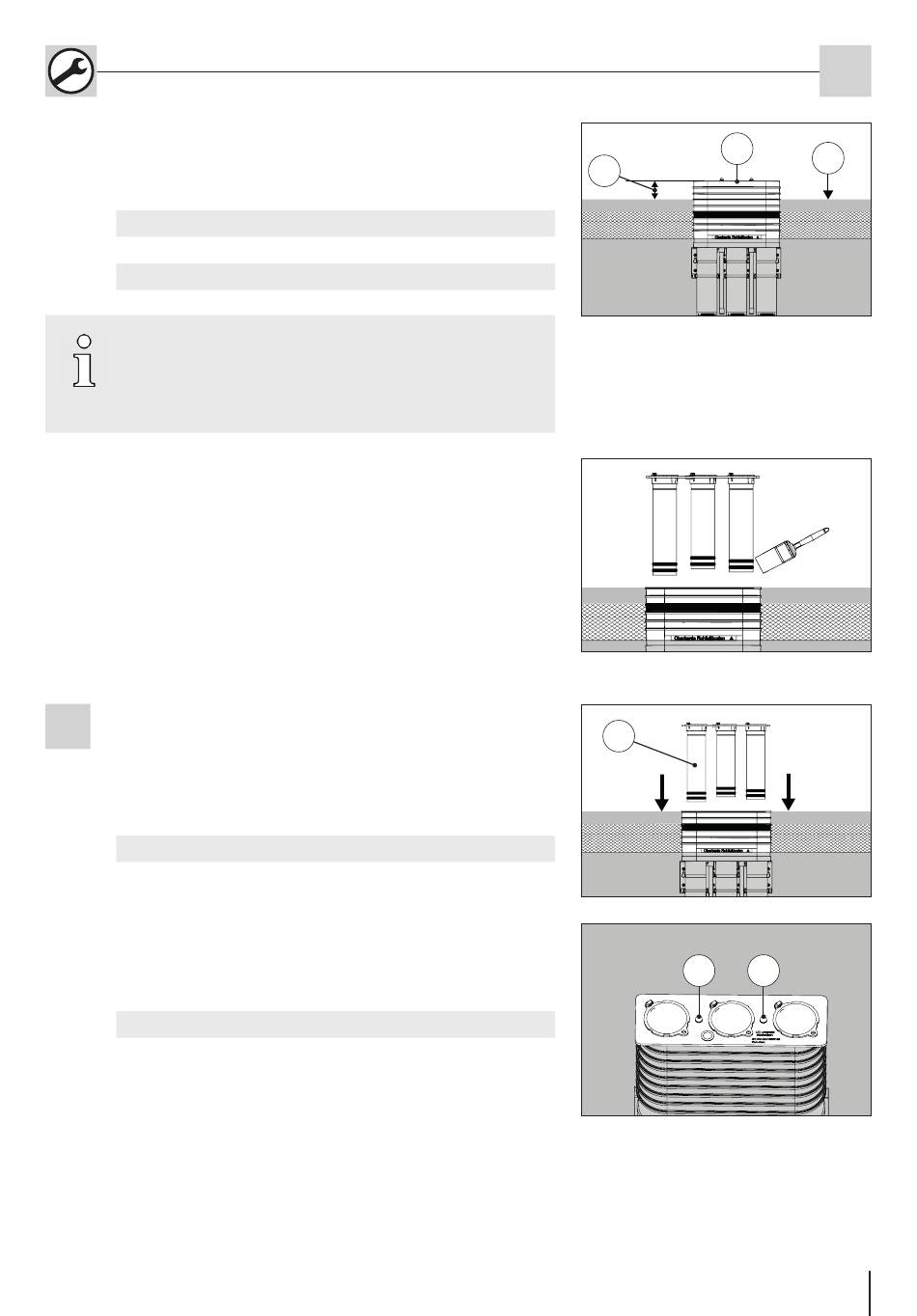

Fig.: 23
