Hauff-Technik MSH Basic-FUBO-E-R3 Montageanweisung Seite 33

MSH Basic-FUBO-E-R3 (R2, R5) with seal insert MSH
Basic-MB-R3 (R2, R5)
NOTE!
No sealing due to incorrect assembly!
Improper installation can result in damage.
• The shortening ranged marked in red is within
the range of the fi nished fl oor level (important
in the case of superstructures larger than 220
mm and smaller than 130 mm) (see fi g.: 17).
• If it is not possible to shorten to fi nished fl oor
height for technical reasons, the wall sleeve may
protrude above the upper edge of the fi nished
fl oor by max� 50 mm.
• If the basic unit of the MSH Basic-FUBO-R3 (R2,
R5) is concreted in too deeply, it is possible to
extend the basic unit as required by mounting
additional compensation frames. If the basic unit
is to be extended by more than one compensation
frame, a MSH Basic-MB-R3 (R2, R5) seal insert
is required in custom length. If this is the case,
please contact our Service Team.
After fi xing the height, align the shell component/wall
11
sleeve in terms of position (see fi g.: 18).
► MSH Basic-FUBO-E-R3 (R2, R5) basic unit with the
KES hose systems correctly aligned with the batter
board in terms of height and position (siehe Abb.:
19).
When attached to the installation fi xture, the MSH
Basic-FUBO-E-R2 (R2, R5) does not yet have absolute
stability.
Art. Nr.: 5090031112 Rev.: 01/2018-09-17
EN

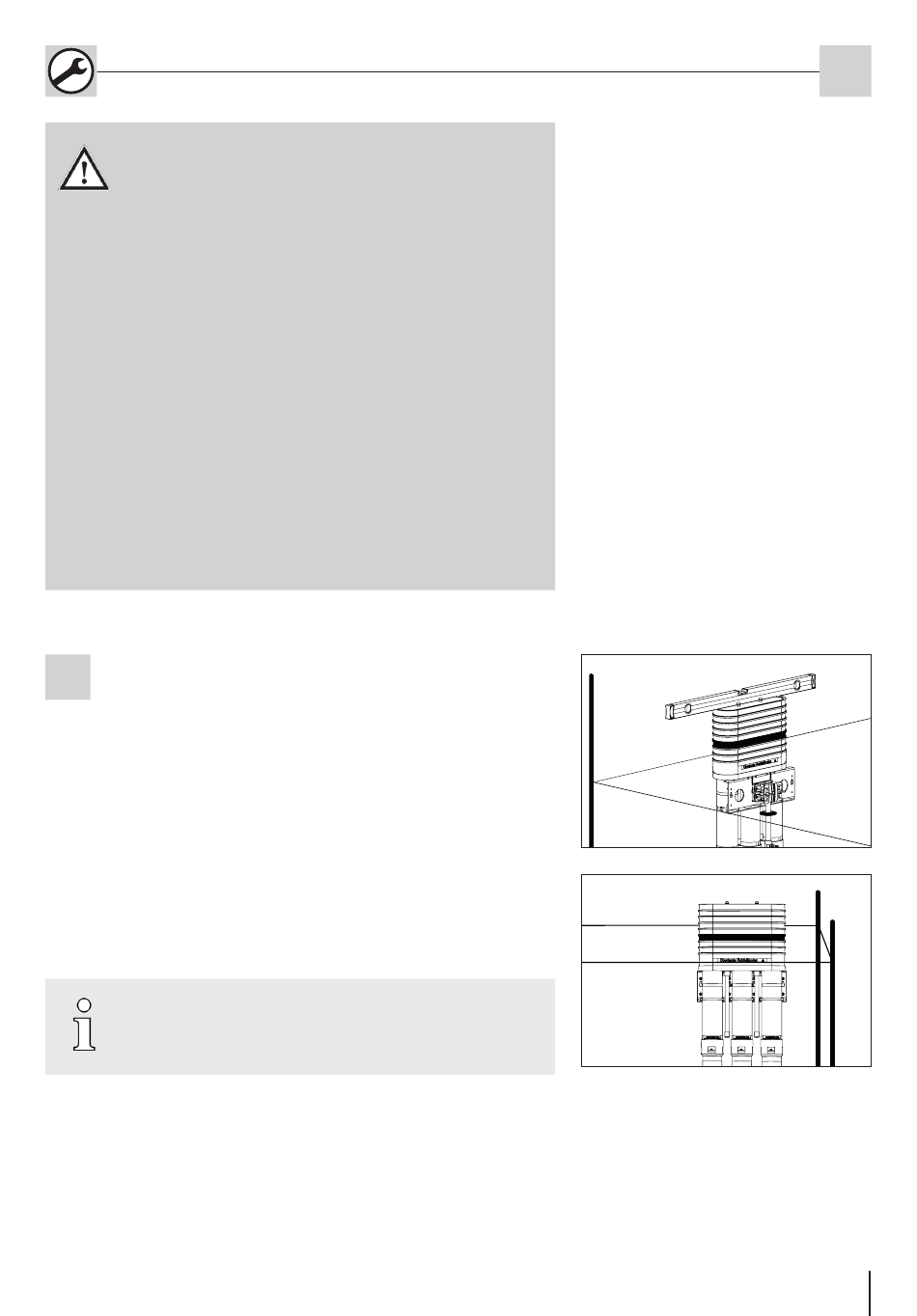

Fig.: 18
