7.7 LED illuminators installation

To work properly both illuminators must be
installed together.
From Pan & Tilt, it is only possible to install
VIDEOTEC illuminators.

7.7.1 Fitting the bracket

Position the bracket (01) on the bottom of the
housing as shown in figure. Install the screws and the
washers (02) in the holes (03) and tighten them. Make
sure the bracket is fastened down firmly. Use only the
material supplied with the kit.
03
01
02

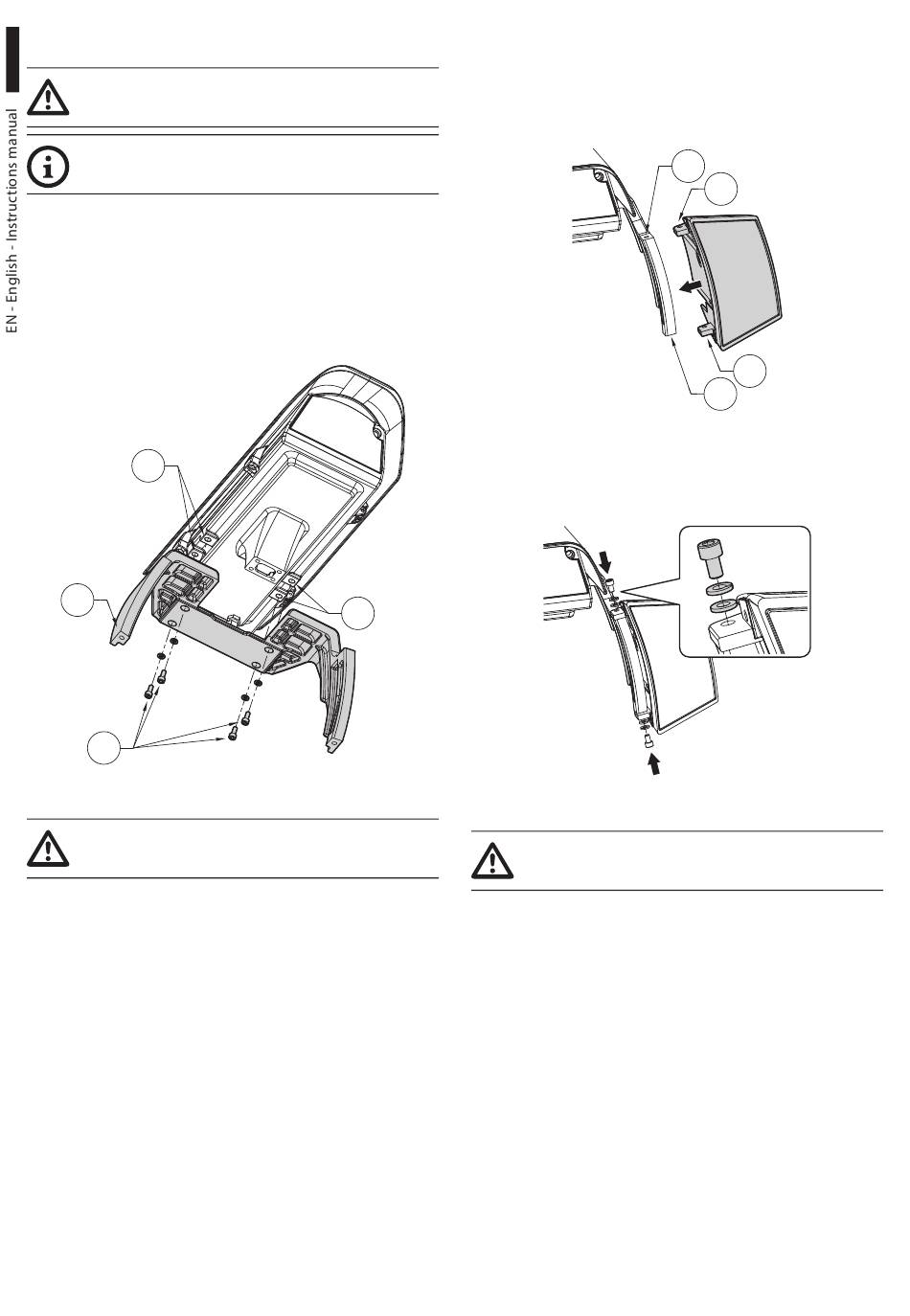

Fig. 22
Pay attention to the fixing. Tightening
torque: 4Nm.
18
7.7.2 Fitting the illuminator on the
bracket
Place the fixings of the illuminator (01) on those of
the bracket (02).
Fig. 23
Tighten the screws with the washers previously
removed.
03
Fig. 24
02
Pay attention to the fixing. Tightening
torque: 6Nm.
MNVCUPKPLUS_1514_EN
01
01
02
