6.3 Contents
Check the contents to make sure they correspond
with the list of materials as below:
• Positioning unit
• Power supply base
• Accessories package:
• Serial adapter
• Serial extension cable
• Allen wrenches
• Label
• Ties
• Silicon sheath
• Reduction gaskets for cable glands
• Instructions manual
• Bolts and screws
• Bracket for attachment of LED illuminators
(available in the versions with LED illuminators)
• Sunshield
6.4 Safely disposing of packaging
material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
When returning a faulty product we recommend
using the original packaging for shipping.
MNVCUPKPLUS_1514_EN
6.5 Preparatory work before

installation

6.5.1 Attaching the bracket

Different types of supports are available (10
Accessories, page 31). Choose a suitable bracket for
the installation and follow all the instructions in the
suggested chapter.
Take special care when attaching and
fastening down the apparatus. The
clamping system must be able to support
at least 4 times the weight of the entire
equipment, including P&T, lenses and
camera.
The device should be assembled vertically.
Any other position could impair the
performance of the appliance.
Do not attach the device upside down.

6.5.2 Cables management

The connection cables should not be
accessible from the outside. It is necessary
to fasten the cables securely to the support
in order to prevent excessive weight pulling
them out accidentaly.
You must use cables suited to the type of
installation.

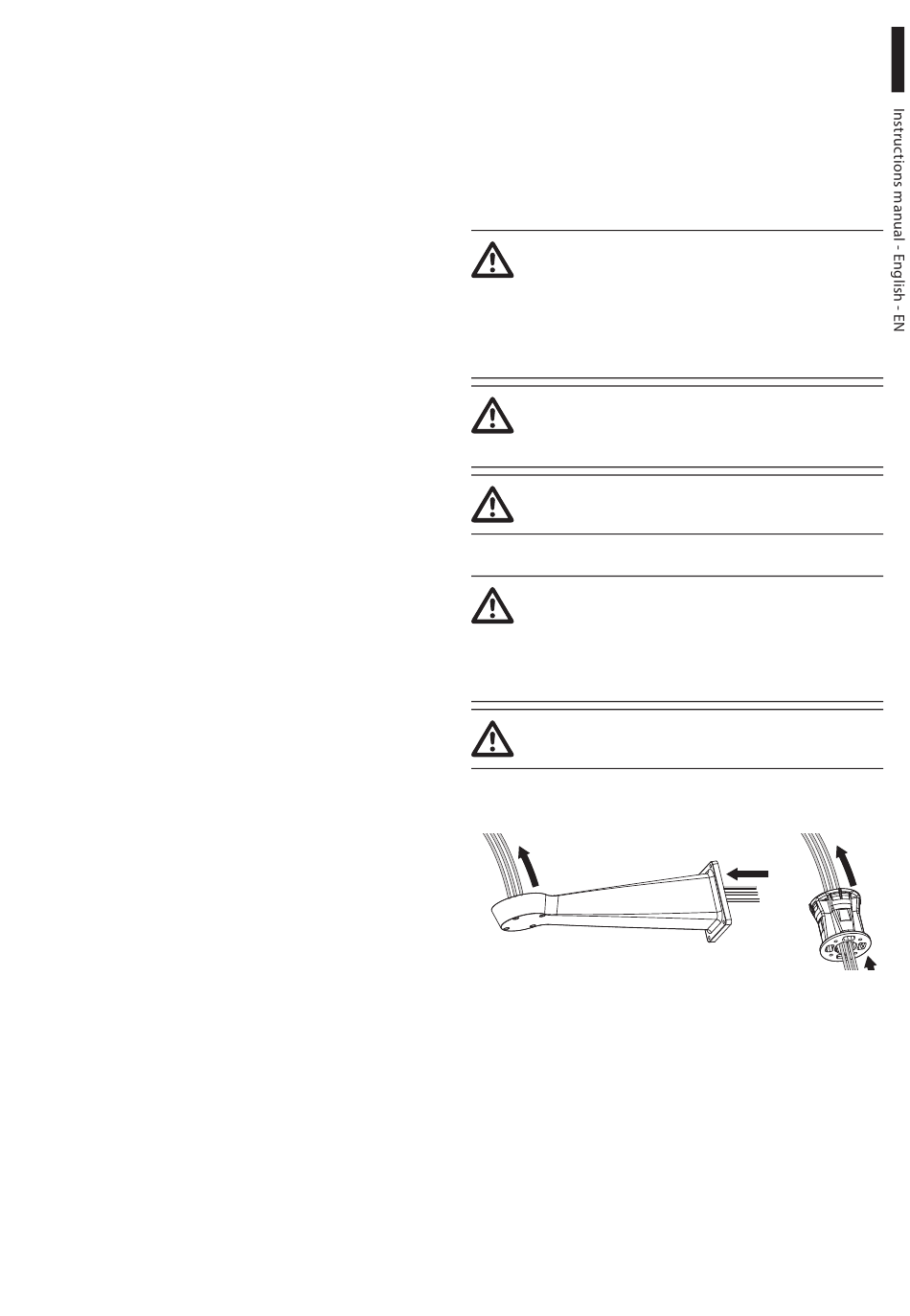

Insert the cables into the support so that they
protrude by about 50cm.
50cm
Fig. 6
50cm
11
