3 Commissioning of an easyTRX2S
transceiver
3.1

Turning-on of an easyTRX2S

After the easyTRX2S Transceiver is connected according point 3 to the
12V supply and is switched on, all eight visible LED on the top of the
unit will illuminate once for a period of one second. Subsequently
every 2nd LED flashes for one second and after that the remaining LED
will be illuminated for one second.
Weatherdock AG

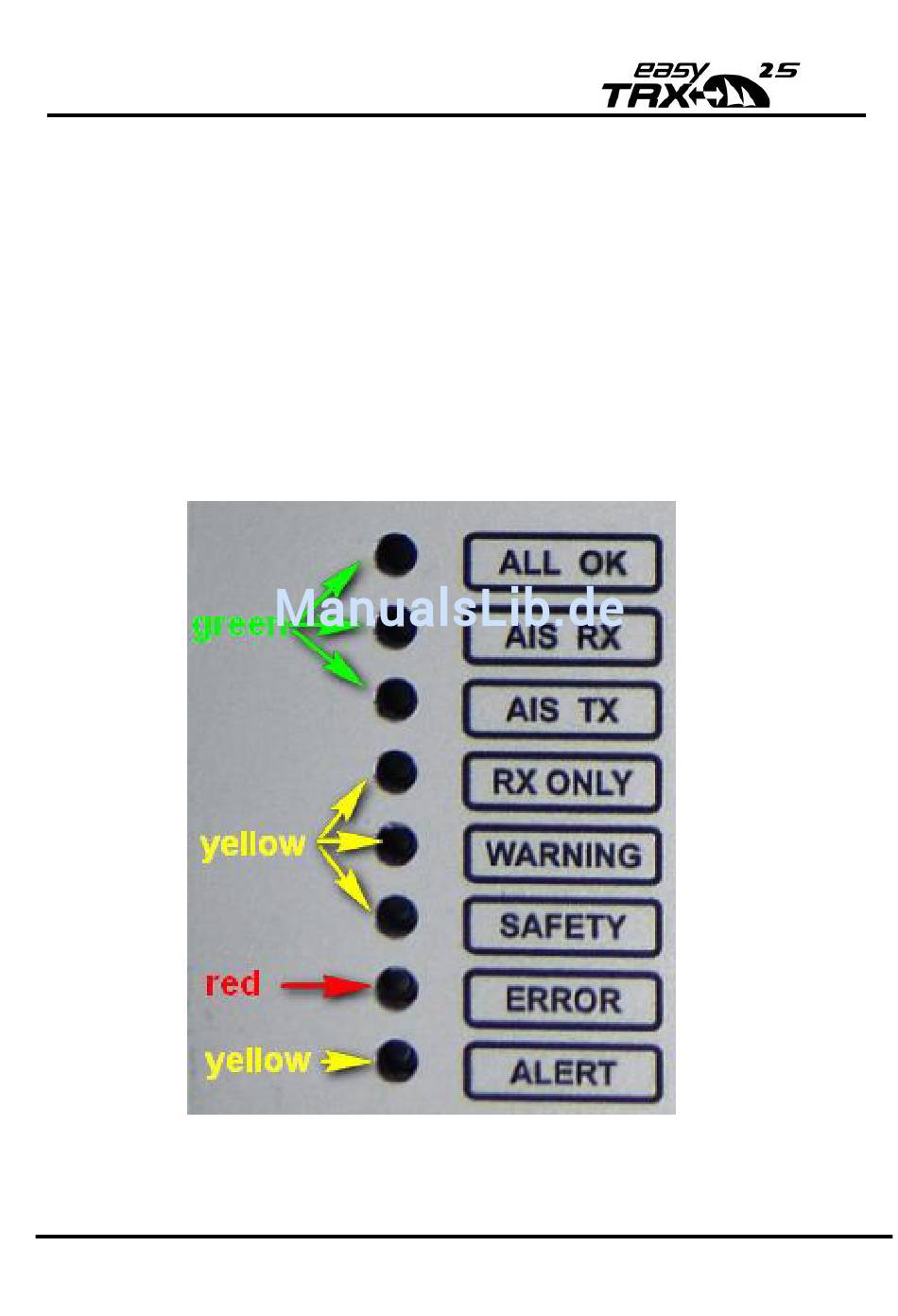

Abbildung 22-LED colours
