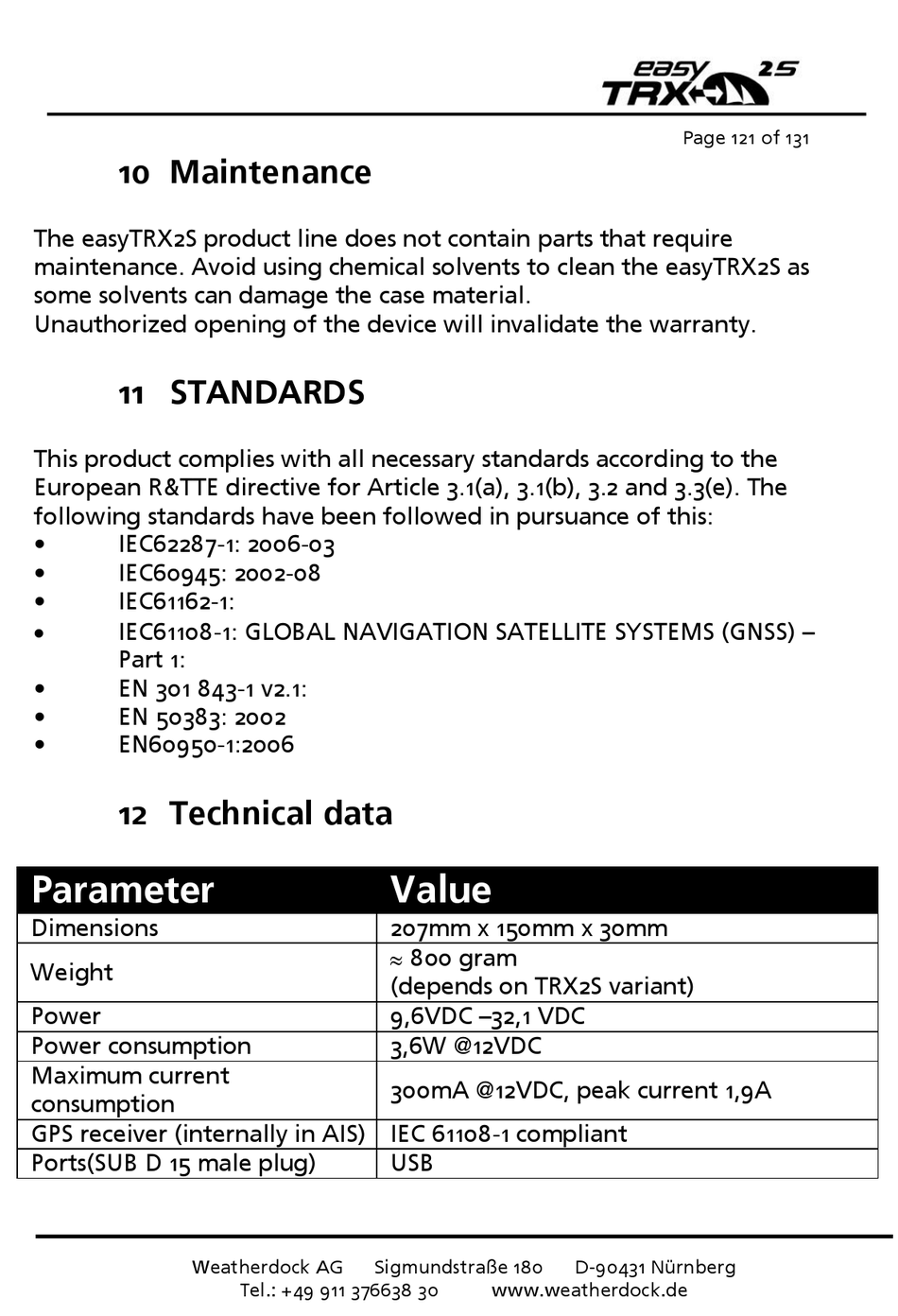

10 Maintenance

The easyTRX2S product line does not contain parts that require
maintenance. Avoid using chemical solvents to clean the easyTRX2S as
some solvents can damage the case material.
Unauthorized opening of the device will invalidate the warranty.

11 STANDARDS

This product complies with all necessary standards according to the
European R&TTE directive for Article 3.1(a), 3.1(b), 3.2 and 3.3(e). The
following standards have been followed in pursuance of this:
• IEC62287-1: 2006-03
• IEC60945: 2002-08
• IEC61162-1:

IEC61108-1: GLOBAL NAVIGATION SATELLITE SYSTEMS (GNSS) –
Part 1:
• EN 301 843-1 v2.1:
• EN 50383: 2002
• EN60950-1:2006

12 Technical data

Parameter
Dimensions
Weight
Power
Power consumption
Maximum current
consumption
GPS receiver (internally in AIS) IEC 61108-1 compliant
Ports(SUB D 15 male plug)
Weatherdock AG
Value
207mm x 150mm x 30mm
 800 gram
(depends on TRX2S variant)
9,6VDC –32,1 VDC
3,6W @12VDC
300mA @12VDC, peak current 1,9A
USB
