Received frequencies from the VHF antenna will be divided and then
amplified. So you can receive DVBT on your DVBT receiver together
with your board antenna. Also you can connect a car radio to it.
Amplification in DVB-T range:
350 – 870 MHz @ 20dB +- 3 dB
Amplification in FM range:
150-500 kHz @ ~10dB
1-108MHz @ >= 13dB
Compatibility to DVB-T2:
As the latest standard of DVB-T2 is within 470-690MHz we are also
amplifying this band. Therefore with our DVB-T add-on of the
easyTRX2S you also can receive this latest standard.
Please check your DVB-T receiver is it is able to receive this signal.
7.3.1

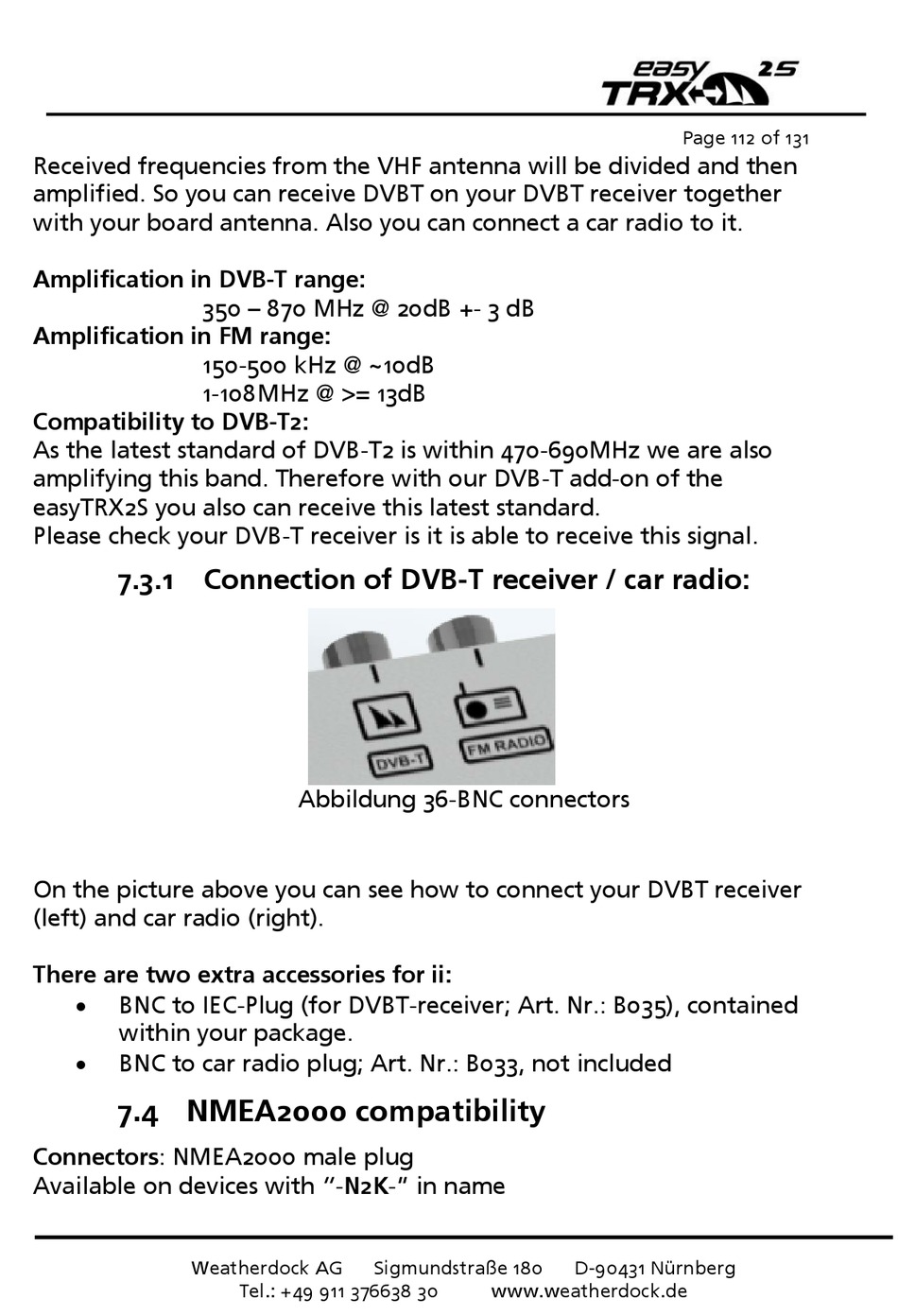

On the picture above you can see how to connect your DVBT receiver
(left) and car radio (right).
There are two extra accessories for ii:

BNC to IEC-Plug (for DVBT-receiver; Art. Nr.: B035), contained
within your package.

BNC to car radio plug; Art. Nr.: B033, not included

7.4 NMEA2000 compatibility

Connectors: NMEA2000 male plug
Available on devices with "-N2K-" in name
Weatherdock AG

Connection of DVB-T receiver / car radio:

Abbildung 36-BNC connectors
