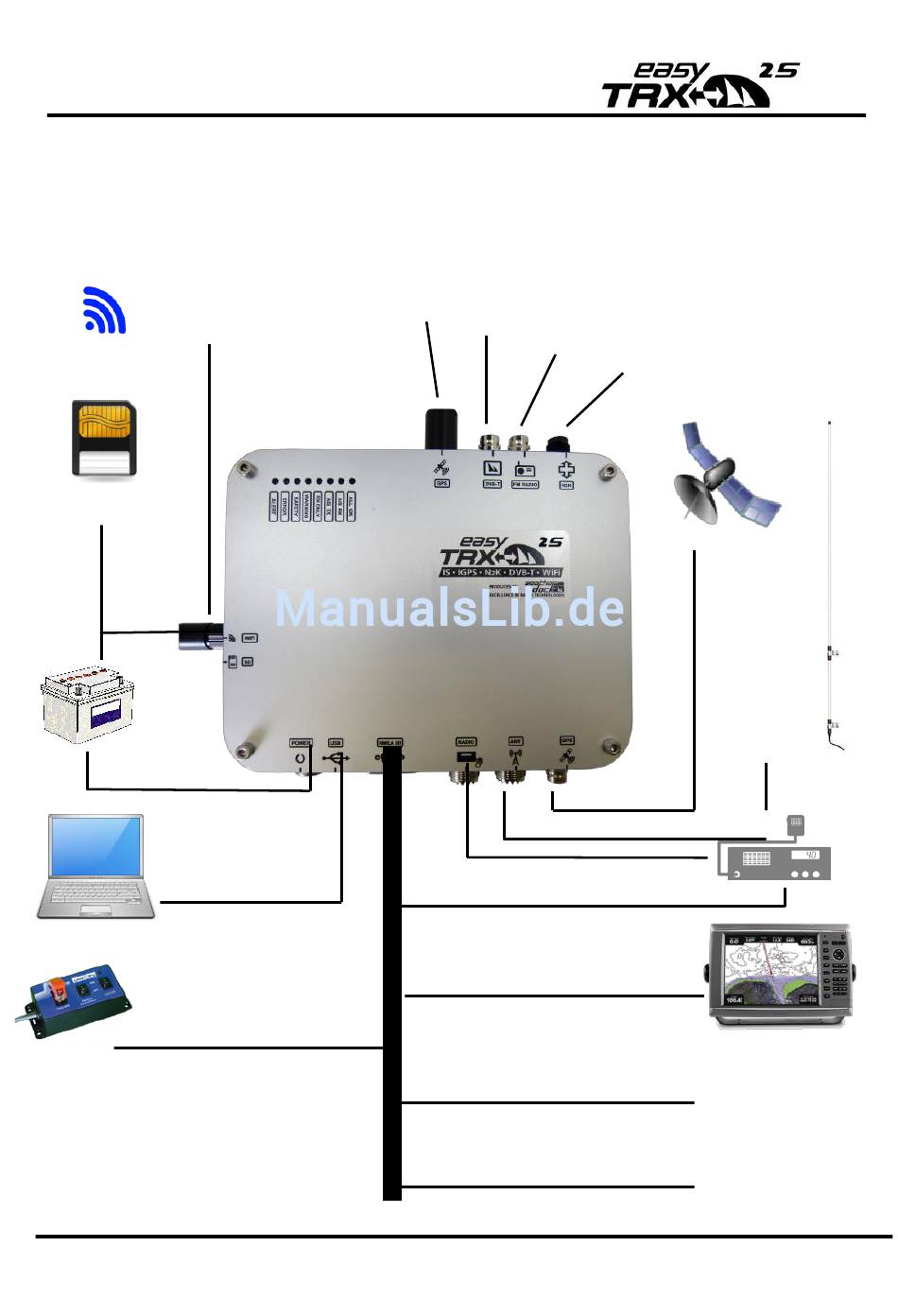

4 Mechanic and electric installation
recommendations
WiFi Antenna
(only with appendix „WiFi"
SD Karte
Max 32GB
Power supply: 9 – 32 VDC
(red/black)
USB< => Laptop/PC
All data & programing
External switch
(not included)
For PAN PAN Function a „BUTTON"
has to be used!
green/white: PAN PAN Taster
brown/yellow: ANKER orSILENT MODE
(Function can be defined by
software)
Weatherdock AG
SUB D 15 plug for data
and switch functionalities
Sigmundstraße 180
Tel.: +49 911 376638 30
GPS Antenna – only with „IGPS"
DVBT – only with „IDVBT" (BNC)
FM-Radio – only with „IDVBT" (BNC)
UKW/VHF radio (SO 239)
NMEA OUT 4800 oder 38400 Baud (grey/yellow)
NMEA OUT to chart plotter
38400 Baud (green/white)
Out to external buzzer
Power consumtion & max. 200mA
CPA and AIS S.A.R.T. Alert (brown/white)
NMEA IN 4800 oder 38400 Baud (brown/yellow)
Multiplexer-input
www.weatherdock.de
Page 80 of 131
NMEA2000 – only with „N2K"
GPS Antenna (BNC)
UKW/VHF Antenna
D-90431 Nürnberg
(SO 239)
