7.1

WiFi-Function

Available on devices with "-WiFi-" in name.
Read under 6.8 how to setup the WiFi.
All these units do have a built-in WLAN module. This creates a
"hotspot" on which PC, laptop, iPad, iPhone, Android smartphones or
tablets can be connected to.
All data which are forwarded to chart plotter will be forwarded 1:1 to
the used mobile device.
7.1.1
Fix the contained WiFi antenna to the RP-SMA plug on the units left
side.

7.1.2 Checking the connection

The programming tool contains a hidden window where you can check
the data packages running on the connection.
To open this window click on the below marked area.
Weatherdock AG

Connection of WiFi-Antenna

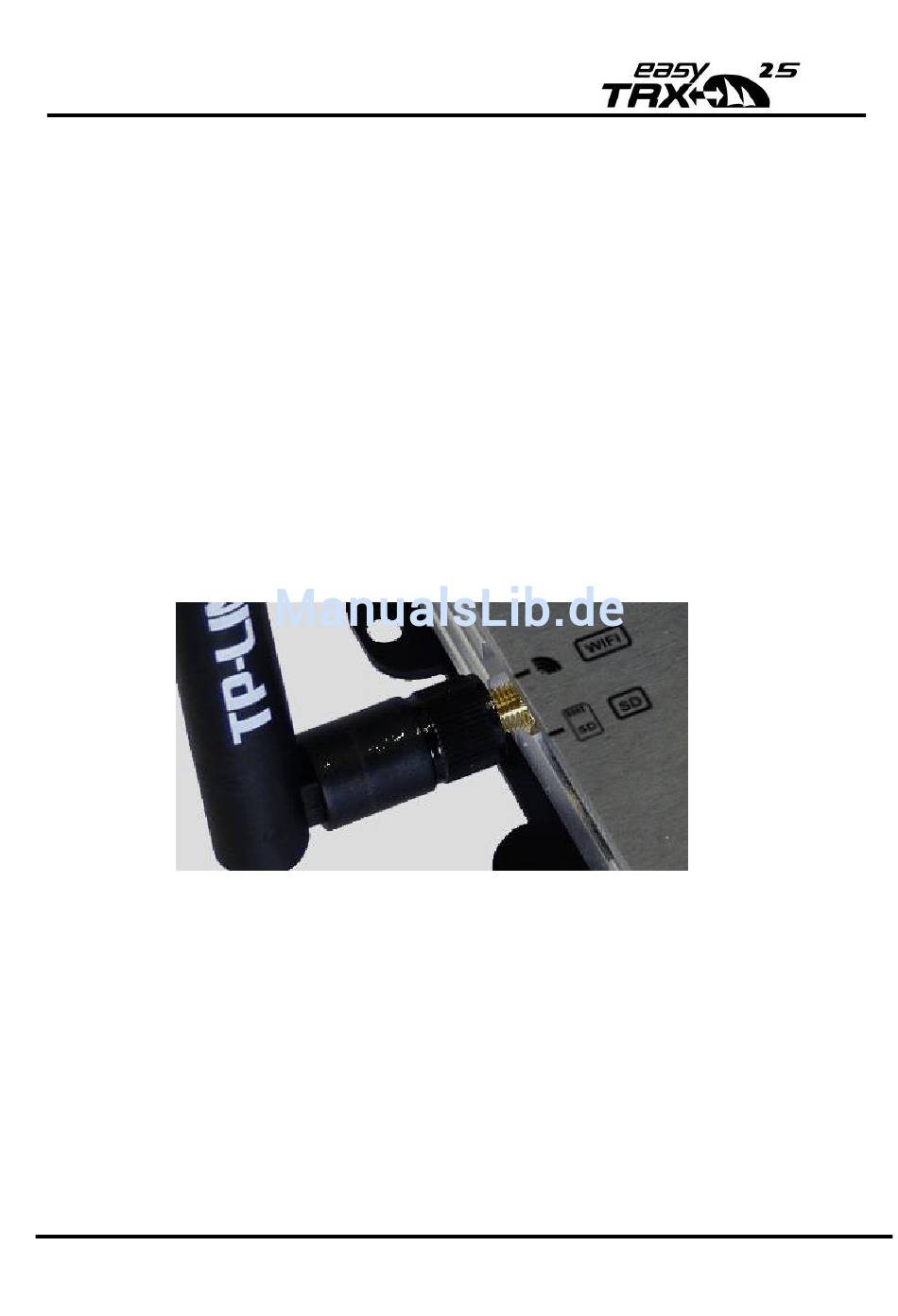

Abbildung 34-WiFi antenna
