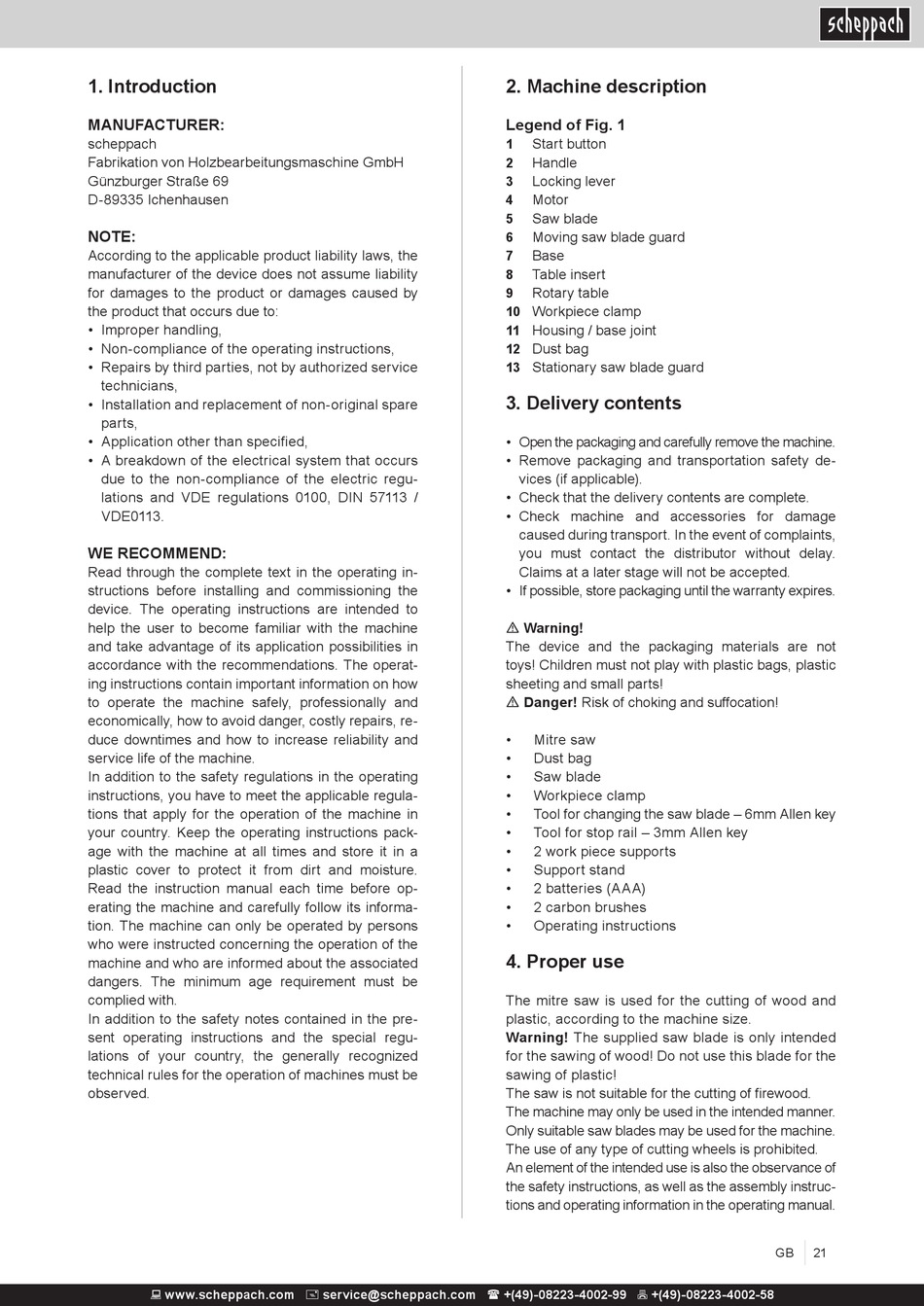

1. Introduction

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
NOTE:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regu-
lations and VDE regulations 0100, DIN 57113 /
VDE0113.
WE RECOMMEND:
Read through the complete text in the operating in-
structions before installing and commissioning the
device. The operating instructions are intended to
help the user to become familiar with the machine
and take advantage of its application possibilities in
accordance with the recommendations. The operat-
ing instructions contain important information on how
to operate the machine safely, professionally and
economically, how to avoid danger, costly repairs, re-
duce downtimes and how to increase reliability and
service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture.
Read the instruction manual each time before op-
erating the machine and carefully follow its informa-
tion. The machine can only be operated by persons
who were instructed concerning the operation of the
machine and who are informed about the associated
dangers. The minimum age requirement must be
complied with.
In addition to the safety notes contained in the pre-
sent operating instructions and the special regu-
lations of your country, the generally recognized
technical rules for the operation of machines must be
observed.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58

2. Machine description

Legend of Fig. 1
Start button
1
Handle
2
3 Locking lever
4 Motor
Saw blade
5
Moving saw blade guard
6
Base
7
Table insert
8
Rotary table
9
10 Workpiece clamp
11 Housing / base joint
Dust bag
12
Stationary saw blade guard
13

3. Delivery contents

• Open the packaging and carefully remove the machine.
• Remove packaging and transportation safety de-
vices (if applicable).
• Check that the delivery contents are complete.
• Check machine and accessories for damage
caused during transport. In the event of complaints,
you must contact the distributor without delay.
Claims at a later stage will not be accepted.
• If possible, store packaging until the warranty expires.
m Warning!
The device and the packaging materials are not
toys! Children must not play with plastic bags, plastic
sheeting and small parts!
m Danger! Risk of choking and suffocation!
• Mitre saw
• Dust bag
• Saw blade
• Workpiece clamp
• Tool for changing the saw blade – 6mm Allen key
• Tool for stop rail – 3mm Allen key
• 2 work piece supports
• Support stand
• 2 batteries (AAA)
• 2 carbon brushes
• Operating instructions

4. Proper use

The mitre saw is used for the cutting of wood and
plastic, according to the machine size.
Warning! The supplied saw blade is only intended
for the sawing of wood! Do not use this blade for the
sawing of plastic!
The saw is not suitable for the cutting of firewood.
The machine may only be used in the intended manner.
Only suitable saw blades may be used for the machine.
The use of any type of cutting wheels is prohibited.
An element of the intended use is also the observance of
the safety instructions, as well as the assembly instruc-
tions and operating information in the operating manual.
GB 21
