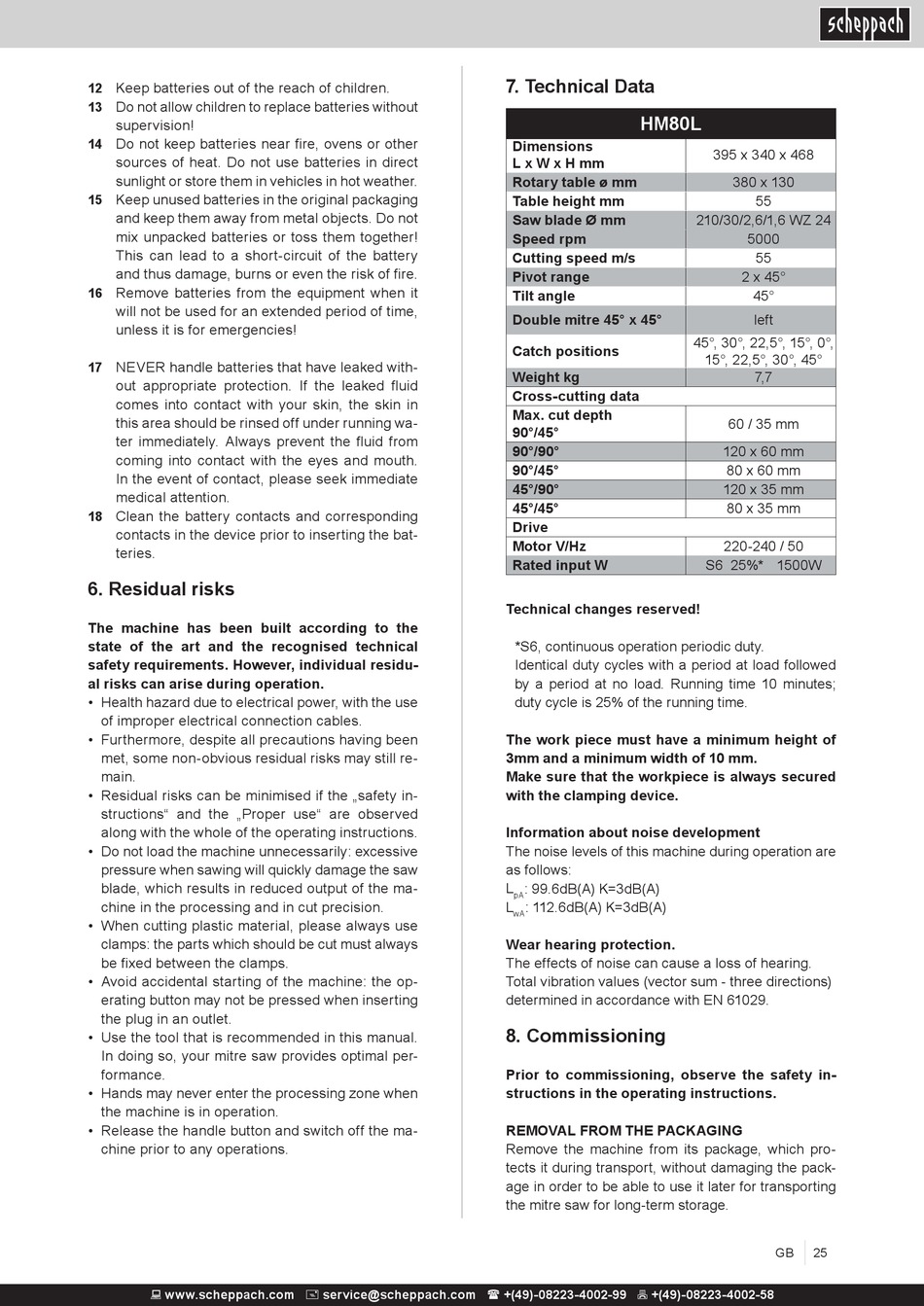

12 Keep batteries out of the reach of children.
Do not allow children to replace batteries without
13
supervision!
Do not keep batteries near fire, ovens or other
14
sources of heat. Do not use batteries in direct
sunlight or store them in vehicles in hot weather.
15 Keep unused batteries in the original packaging
and keep them away from metal objects. Do not
mix unpacked batteries or toss them together!
This can lead to a short-circuit of the battery
and thus damage, burns or even the risk of fire.
Remove batteries from the equipment when it
16
will not be used for an extended period of time,
unless it is for emergencies!
NEVER handle batteries that have leaked with-
17
out appropriate protection. If the leaked fluid
comes into contact with your skin, the skin in
this area should be rinsed off under running wa-
ter immediately. Always prevent the fluid from
coming into contact with the eyes and mouth.
In the event of contact, please seek immediate
medical attention.
Clean the battery contacts and corresponding
18
contacts in the device prior to inserting the bat-
teries.

6. Residual risks

The machine has been built according to the
state of the art and the recognised technical
safety requirements. However, individual residu-
al risks can arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed
along with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the op-
erating button may not be pressed when inserting
the plug in an outlet.
• Use the tool that is recommended in this manual.
In doing so, your mitre saw provides optimal per-
formance.
• Hands may never enter the processing zone when
the machine is in operation.
• Release the handle button and switch off the ma-
chine prior to any operations.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58

7. Technical Data

HM80L
Dimensions
L x W x H mm
Rotary table ø mm
Table height mm
Saw blade Ø mm
Speed rpm
Cutting speed m/s
Pivot range
Tilt angle
Double mitre 45° x 45°
Catch positions
Weight kg
Cross-cutting data
Max. cut depth
90°/45°
90°/90°
90°/45°
45°/90°
45°/45°
Drive
Motor V/Hz
Rated input W
Technical changes reserved!
*S6, continuous operation periodic duty.
Identical duty cycles with a period at load followed
by a period at no load. Running time 10 minutes;
duty cycle is 25% of the running time.
The work piece must have a minimum height of
3mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Information about noise development
The noise levels of this machine during operation are
as follows:
L : 99.6dB(A) K=3dB(A)
pA
L : 112.6dB(A) K=3dB(A)
wA
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three directions)
determined in accordance with EN 61029.

8. Commissioning

Prior to commissioning, observe the safety in-
structions in the operating instructions.
REMOVAL FROM THE PACKAGING
Remove the machine from its package, which pro-
tects it during transport, without damaging the pack-
age in order to be able to use it later for transporting
the mitre saw for long-term storage.
395 x 340 x 468
380 x 130
55
210/30/2,6/1,6 WZ 24
5000
55
2 x 45°
45°
left
45°, 30°, 22,5°, 15°, 0°,
15°, 22,5°, 30°, 45°
7,7
60 / 35 mm
120 x 60 mm
80 x 60 mm
120 x 35 mm
80 x 35 mm
220-240 / 50
S6 25%* 1500W
