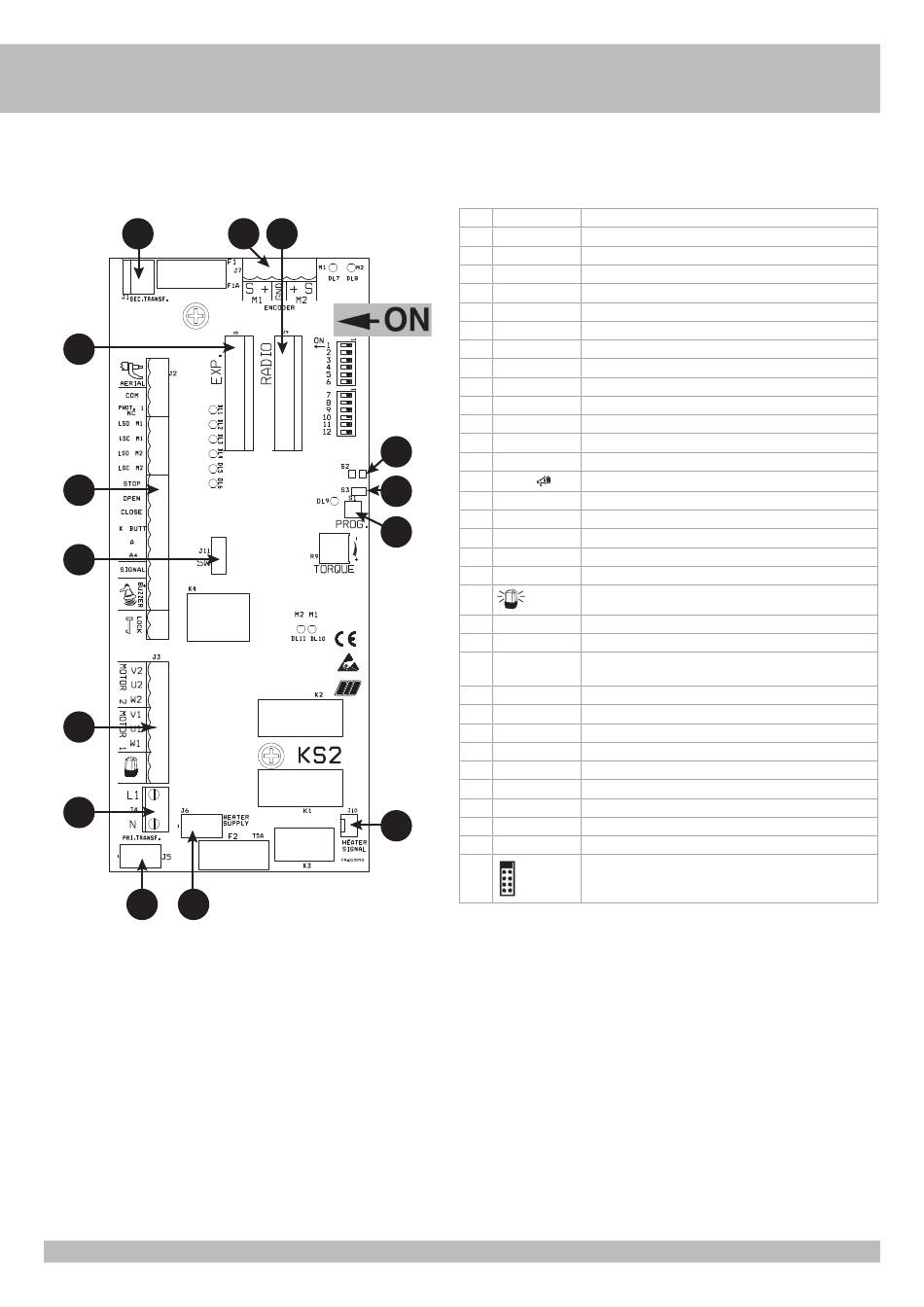

A - CONNEXIONS
J1
J8
J2
J11
J3
J4
J5 J6
J7 J9
S2
S3
S1
J10
J1 SEC.TRANSF. Secondary transformer connector
J2 AERIAL Radio antenna
COM Common contact unit
PHOT.1 NC Photocell contact (NC)
LSO Stop opening limit switch M1 (NC)
LSC Stop closing limit switch M1 (NC)
LSO Stop opening limit switch contact M2 (NC)
LSC Stop closing limit switch contact M2 (NC)
STOP Stop button contact (NC)
OPEN Opening button contact (NO)
CLOSE Closing button contact (NO)
K BUTT. Single pulse contact (NO)
A*A Accessory power supply at 24Vac
SIGNAL Gate open light 12Vdc
Wiring acoustic warning (12Vdc max 200 mA)
BUZZER
LOCK Electric lock connection (Max 15W 12V)
J3 U - MOTOR 2 MOTOR 2 COMMON CONNECTION UNIT
V-W - MOTOR 2 MOTOR 2 INVERTER AND CAPACITOR CONNECTION
U - MOTOR 1 MOTOR 1 COMMON CONNECTION UNIT
V-W - MOTOR 1 MOTOR 1 INVERTER AND CAPACITOR CONNECTION
BLINKER (max 40W )
J4 L1 - N Power supply 230Vac 50/60Hz (on request 120V/60Hz)
J5 PRI.TRANSF. Connector for transformer primary connection
J6 HEATER SUPPLY Connector for heater supply board (Optional - DO NOT TOUCH
THE GUARD! )
J7 ENCODER Terminal board for Encoder M1 and M2 connection
S-M1 Encoder M1 signal
+ M1 Encoder M1 power positive sign
GND Encoder M1 and M2 power negative sign
+ M2 Encoder M2 power positive sign
S-M2 Encoder M2 signal
J8 EXP. Connector for EXPANDER board
J9 RADIO Connector for 24Vac radio receiver
J10 HEATER Connector for heater board control
J11 DO NOT TOUCH THE JUMPER !
IF IT IS REMOVED THE OPERATOR DOESN'T MOVE !
NOTE: IF THE ELECTRIC LIMIT SWITCHES ARE NOT USED, THERE IS NO NEED TO BYPASS
THEM OUT WITH A JUMPER. THEY CAN BE BYPASSED IF JUMPER S3 IS OPEN.
