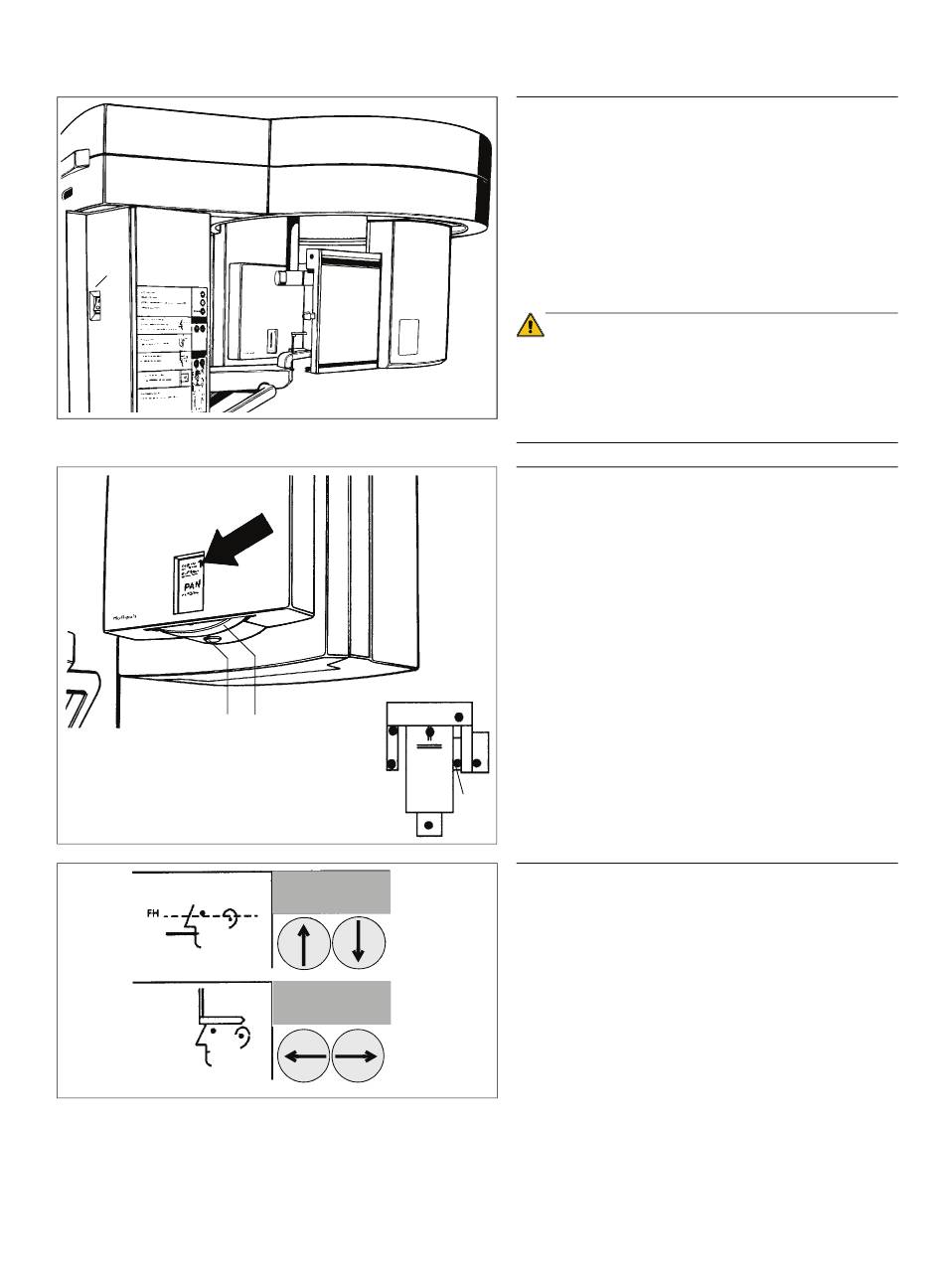

Switching ON the Unit

• Depress the main switch (1) into the I position and
wait 1 minute.
• The LED in the upper left corner of the Multitimer will
light up.
• The unit adjusts itself automatically:
• The rotating unit moves a little to the right and left.
• The forehead support moves to basic position 10.0.
• The cassette carriage moves to the initial position.
CAUTION
When switching on the unit, there must not be a patient
positioned in the unit.
If a fault occurs which requires switching the unit off and
then back on again, the patient must be taken out of the
unit at the latest before switching it on again!

Primary Diaphragm

Depending on the exposure program selected, dia-
phragm 1 or 2 is required. Diaphragm 2 is preferred for
children.
Adjust diaphragm
by pressing button (11) and rotating the diaphragm
wheel (10) up to the stop.
The diaphragm number appears in the upper right cor-
ner of the window.
When the diaphragm moved into place is not suitable for
the program preselected on the Multitimer or when the
diaphragm is not correctly locked into place, Help LED
(18) for diaphragm setting flashes on control panel A.
Lock correct diaphragm into place, the LED (18) extin-
guishes.

Digital Displays

At the control panel A
• The mm value of height adjustment between 000
and 640 from the last patient.
• The basic forehead support value of 10.0 mm.
• or a help message H3... or an error message E... is
displayed, same as on the Multitimer
(see page 41 and page 44).
