3. Using a 65-mm (2.5") core drill, drill a hole in
the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor
end of the hole is lower than the indoor end
by about 12mm (0.5"). This will ensure proper
water drainage (See Fig. 6.4). Place the pro-
tective wall cuff in the hole. This protects the
edges of the hole and will help seal it when
you finish the installation process.
Outdoor
=12mm/0.5 inch
NOTE: When drilling the hole in the wall,
make sure to avoid wires, plumbing, and oth-
er sensitive components.
4. Pass the drain hose through the hole.
Make sure the water drains to a safe location
where it will not cause water damage or a
slippage.
NOTE: The drainpipe outlet should be at least
5cm (1.9") above the ground. If it touches the
ground, the unit may become blocked and
malfunction. If you discharge the water direct-
ly into a sewer, make sure that the drain has a
U or S pipe to prevent unwanted odors from
entering the house.
◄ Page 18 ►
Wall
Indoor

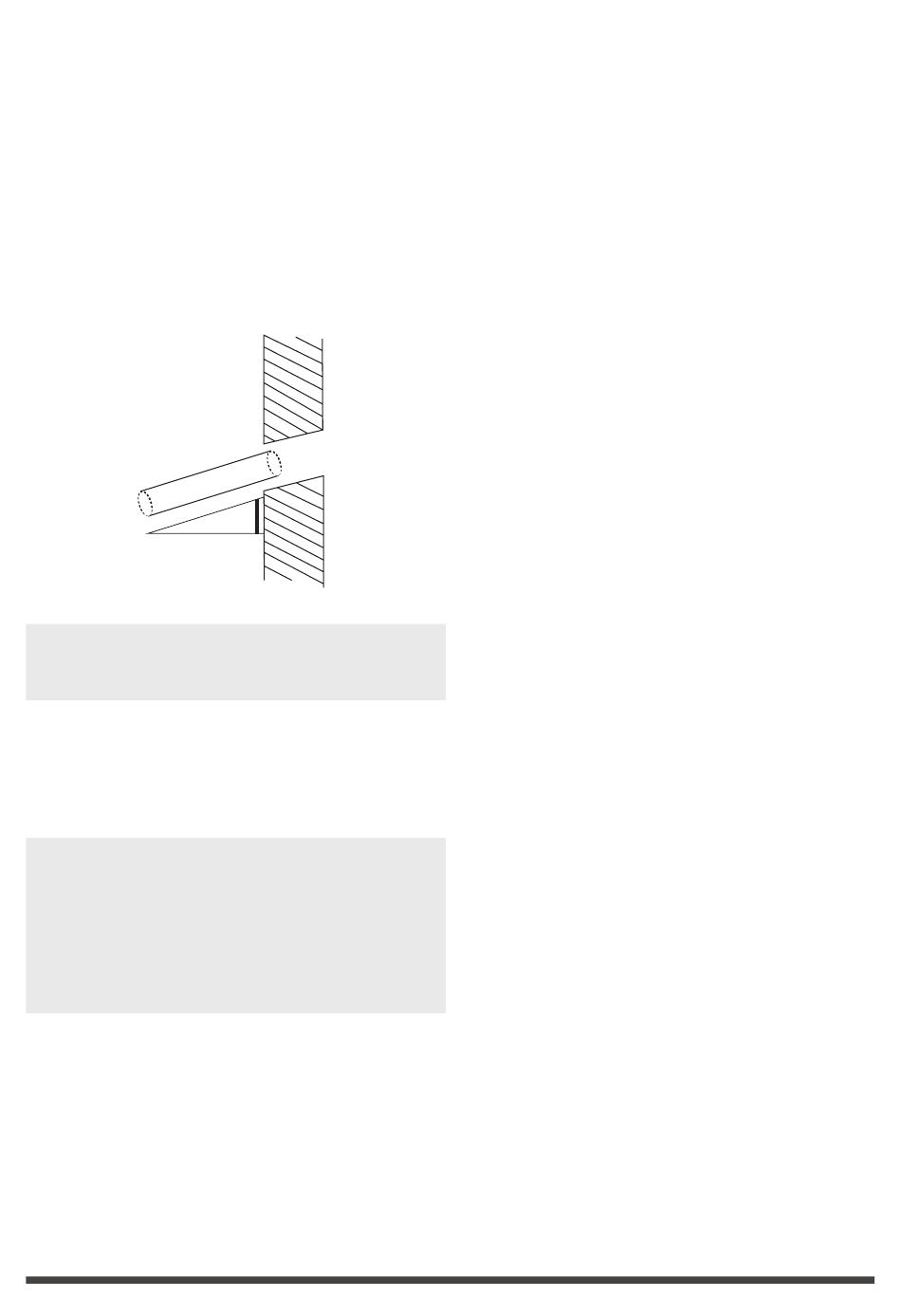

Fig. 6.4
