Ceiling Installation - INVENTOR V5MKI32-18WiFiR/U5MRS32-18 Installationshandbuch

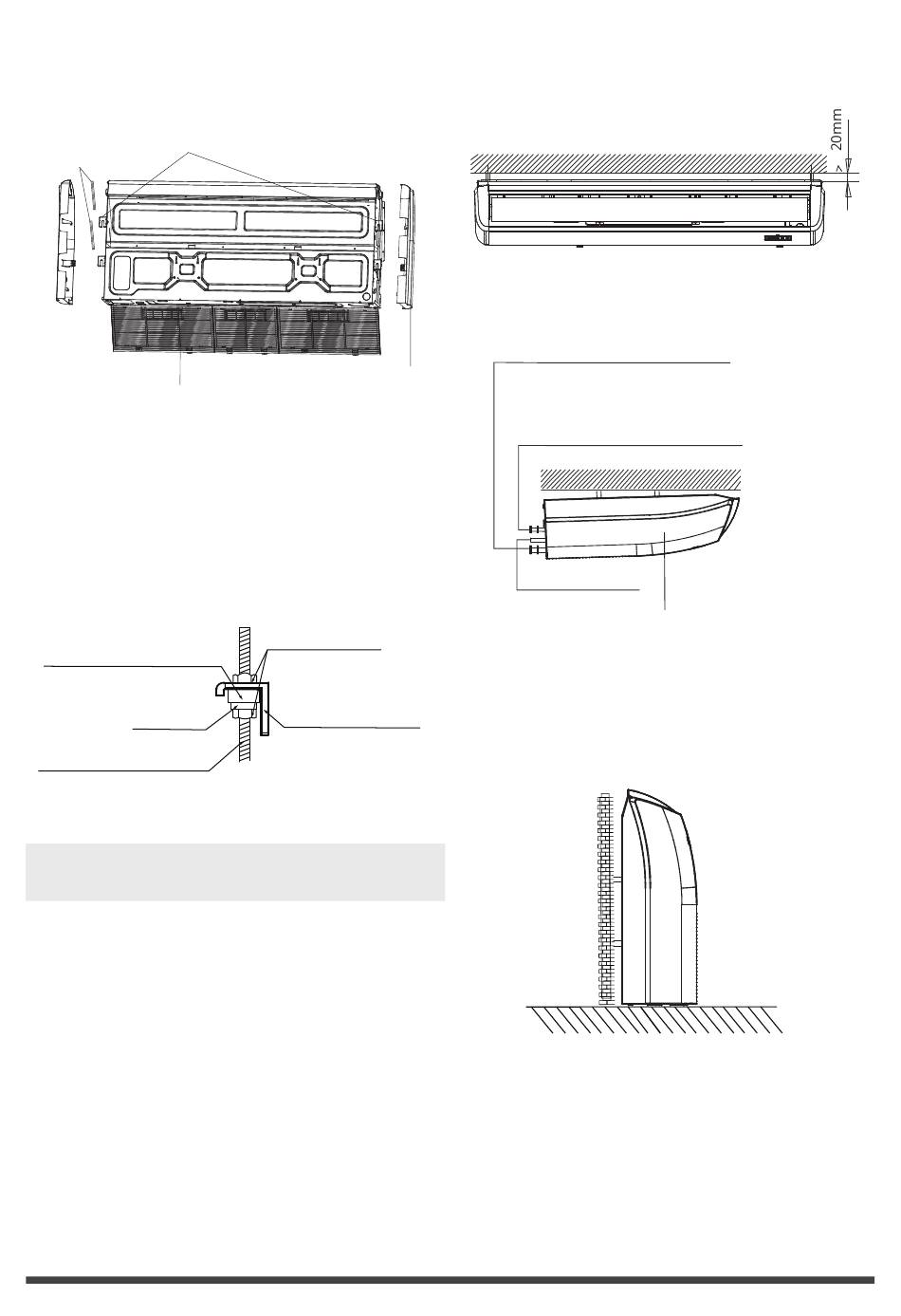

9. Remove the side board and the grille.
(See Fig. 4.10).
Hanging Hanging arm
screw bolt
Grille
10. Mount the indoor unit onto the hanging
screw bolts with a block.
Position the indoor unit on a flat level by us-
ing a level to prevent leaks.
(See Fig. 4.11).
Shockproof cushion
Washer
Hanging screw bolt
NOTE: Confirm the minimum drain tilt is
1/100 or more.
Side board
Fig. 4.10
Screw nut
Overhang part
Fig. 4.11

Ceiling Installation

D. Refrigerant pipe connection
(D.gas side)
E. Refrigerant pipe connection
(E. Liquid side)
Drain point
Downward slope between(1-2)/100
Wall Mounting Installation
Fig. 4.12
Fig. 4.13
Fig. 4.14
