The Manual
Pointek CLS 200 is available in two models, analog and digital, and the manual is in 4 parts:
I. Pointek CLS 200 analog/digital introduction: information common to all models
• safety notes, instrument description, installation instructions, and maintenance
II. Pointek CLS 200 analog model:
• temperature specifications, wiring, setup and operating instructions
III. Pointek CLS 200 digital model, standalone unit:
• temperature specifications, wiring, setup and operating instructions
IV. Pointek CLS 200, digital model, unit installed on a PROFIBUS network:
• temperature specifications, wiring, setup and operating instructions
Pointek CLS 200 (analog/digital)
Note: Pointek CLS 200 is to be used only in the manner outlined in this manual, otherwise
protection provided by the equipment may be impaired.
Pointek CLS 200 is a versatile capacitance switch with a high level of chemical resistance;
ideal for level detection of interfaces, solids, liquids, slurries, and foam, and for simple pump
control.

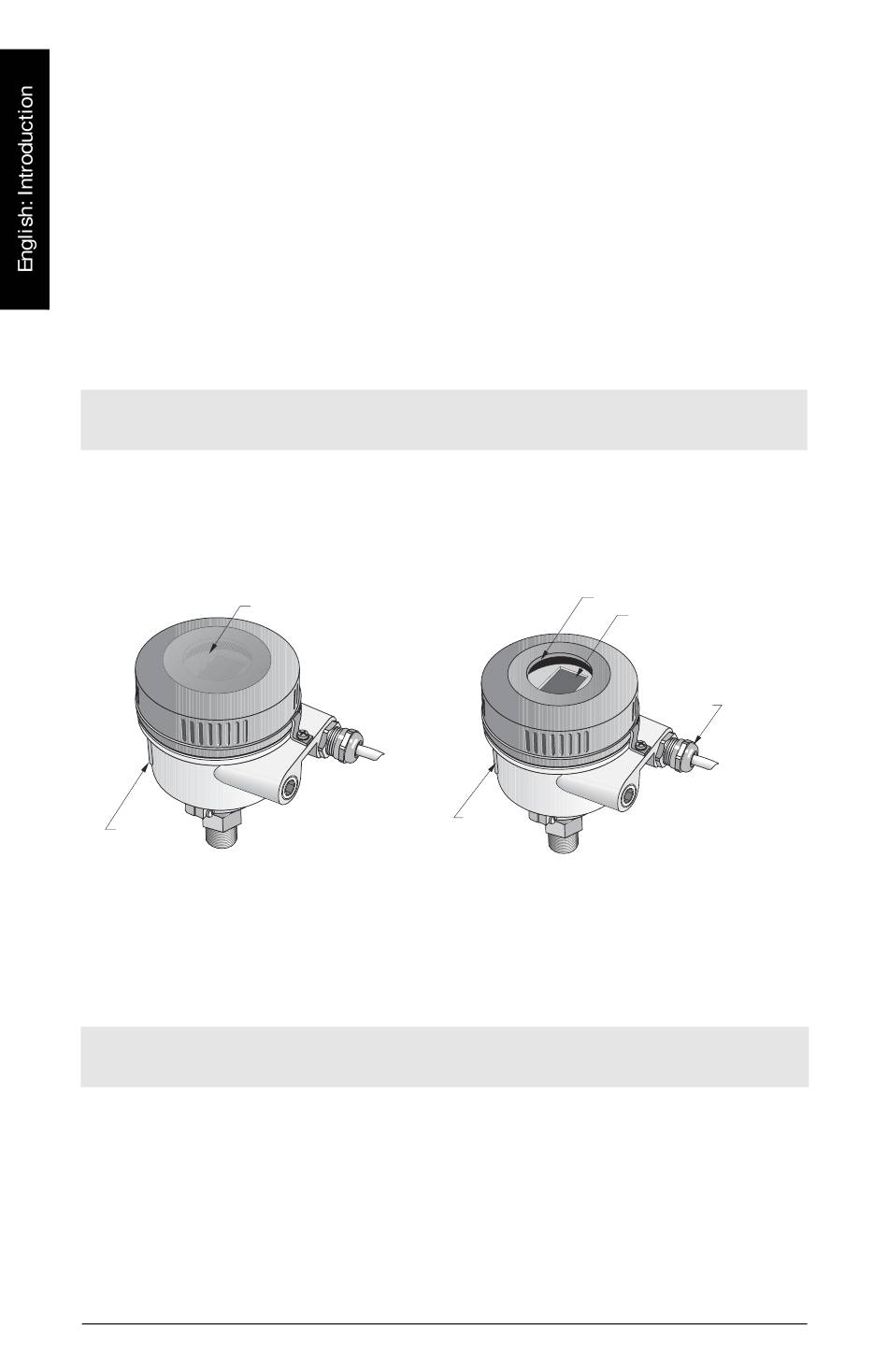

analog version
device
nameplate
Approvals (verify against device nameplate)
• CE, CSA , FM, ATEX, 3A
NRTL/C
• Vlarem, WHG
• Lloyd's Register of Shipping, categories ENV1, ENV2, and ENV5
Note: The use of approved watertight conduit hubs/glands is required for Type 4 / NEMA 4,
Type 6 / NEMA 6, IP68 (outdoor applications).
Page EN-2 Pointek CLS 200 (analog/digital) – QUICK START MANUAL
lid without window
digital version
lid with window
integral digital display
device
nameplate
optional M12 plug
available
7ML19985QE81
