ROBO Compact W600
6.1 Setting up and connecting torch neck and cable assembly

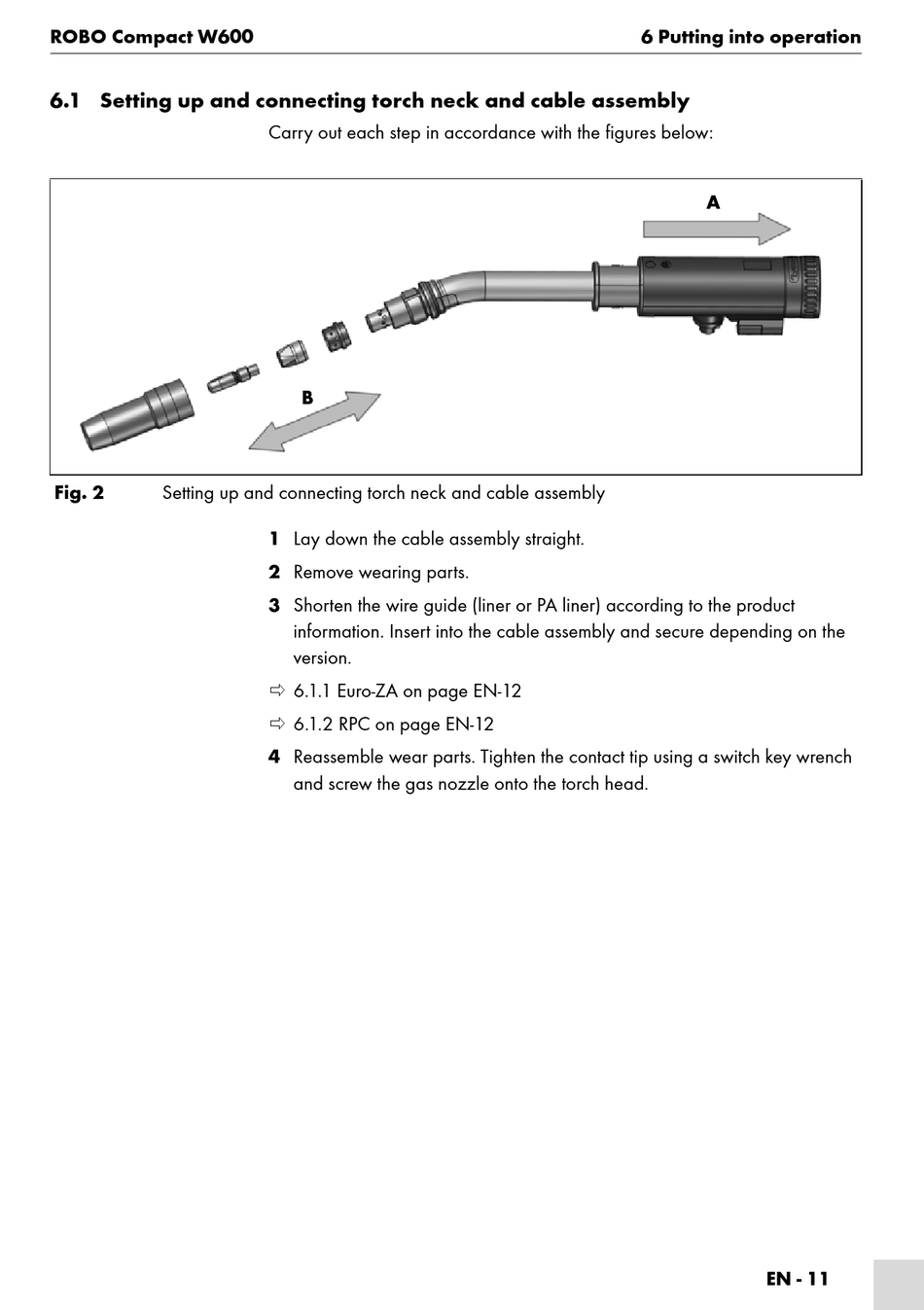

Fig. 2 Setting up and connecting torch neck and cable assembly
Carry out each step in accordance with the figures below:
B
1 Lay down the cable assembly straight.
2 Remove wearing parts.
3 Shorten the wire guide (liner or PA liner) according to the product
information. Insert into the cable assembly and secure depending on the
version.
 6.1.1 Euro-ZA on page EN-12
 6.1.2 RPC on page EN-12
4 Reassemble wear parts. Tighten the contact tip using a switch key wrench
and screw the gas nozzle onto the torch head.
