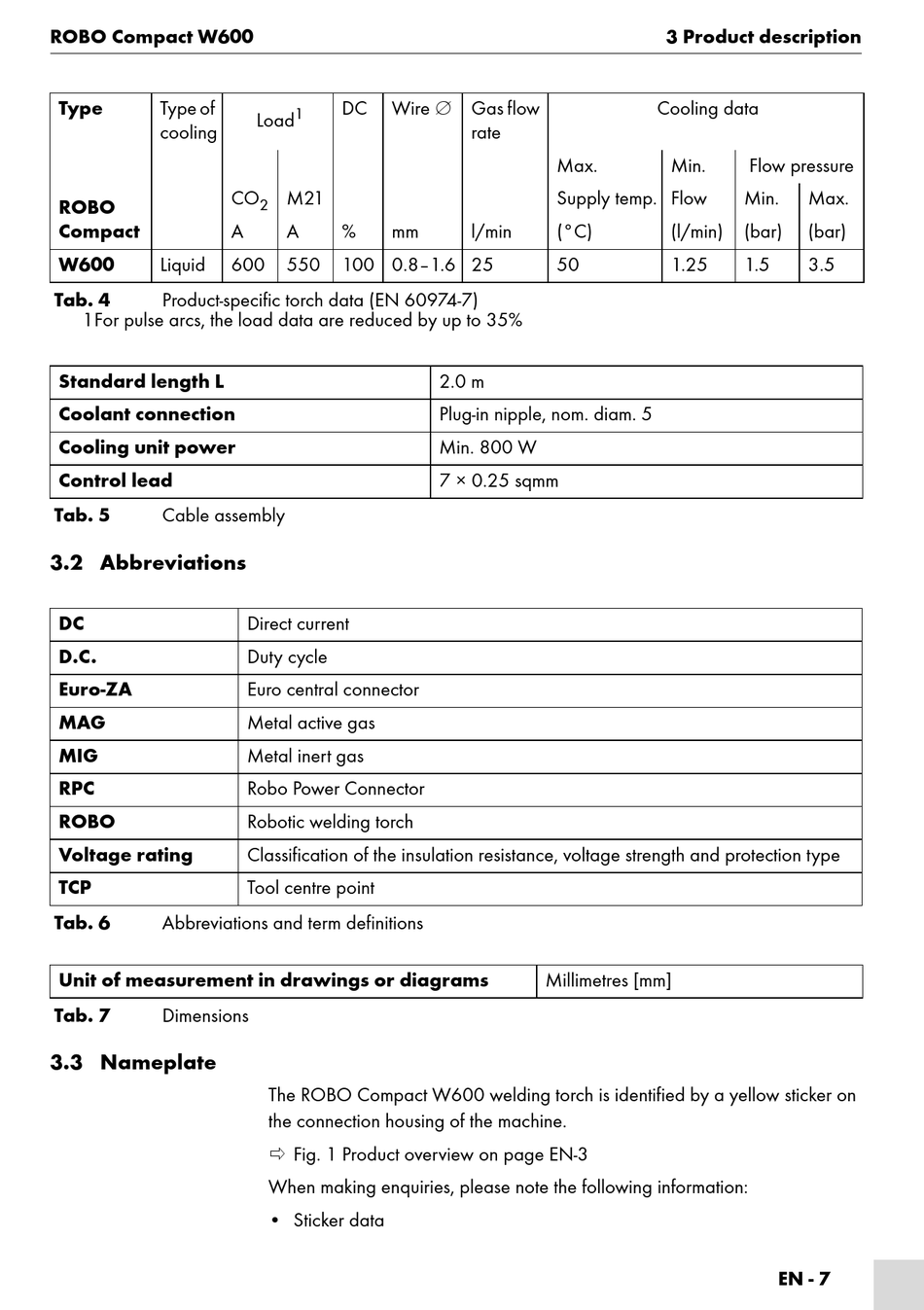

ROBO Compact W600
Type Type of
cooling
ROBO
Compact
W600
Liquid
Tab. 4 Product-specific torch data (EN 60974-7)
1For pulse arcs, the load data are reduced by up to 35%
Standard length L
Coolant connection
Cooling unit power
Control lead
Tab. 5 Cable assembly
3.2 Abbreviations
DC
D.C.
Euro-ZA
MAG
MIG
RPC
ROBO
Voltage rating
TCP
Tab. 6 Abbreviations and term definitions
Unit of measurement in drawings or diagrams
Tab. 7 Dimensions
3.3 Nameplate
Wire  Gas flow
DC
1
Load
CO M21
2
A A % mm
600 550 100 0.8–1.6 25
Direct current
Duty cycle
Euro central connector
Metal active gas
Metal inert gas
Robo Power Connector
Robotic welding torch
Classification of the insulation resistance, voltage strength and protection type
Tool centre point
The ROBO Compact W600 welding torch is identified by a yellow sticker on
the connection housing of the machine.
 Fig. 1 Product overview on page EN-3
When making enquiries, please note the following information:
• Sticker data
rate
Max.
Supply temp. Flow
l/min (°C)
50
2.0 m
Plug-in nipple, nom. diam. 5
Min. 800 W
7 × 0.25 sqmm
Millimetres [mm]
3 Product description
Cooling data
Min. Flow pressure
Min. Max.
(l/min) (bar) (bar)
1.25 1.5 3.5
