Mechanical installation

3.1

Drilling the holes into the mounting plate

Assembly space
Left/right of other controllers
Left/right of a non-heat-conducting wall
Top/bottom
Comply with the clearances given to ensure a sufficient cooling of the controller. When
using an air lock, different clearances apply (see Mounting Instructions for the air lock).
b
Fig.8-1
1. Mark the bore holes on the mounting plate according to the figure.
2. Drill the holes into the mounting plate.
EDKVF9383 DE/EN/FR 1.0
Tip!
Lenze recommends to install an air lock. The air lock serves to dissipate the
ƒ
heated cooling air directly from the control cabinet.
– Order no. E93ZWL2
A drilling jig for marking the bore holes is available as dxf-file in the
ƒ
Internet in the "Download" area under www.Lenze.de.
a
a1
a2
a3
d
a2
a1

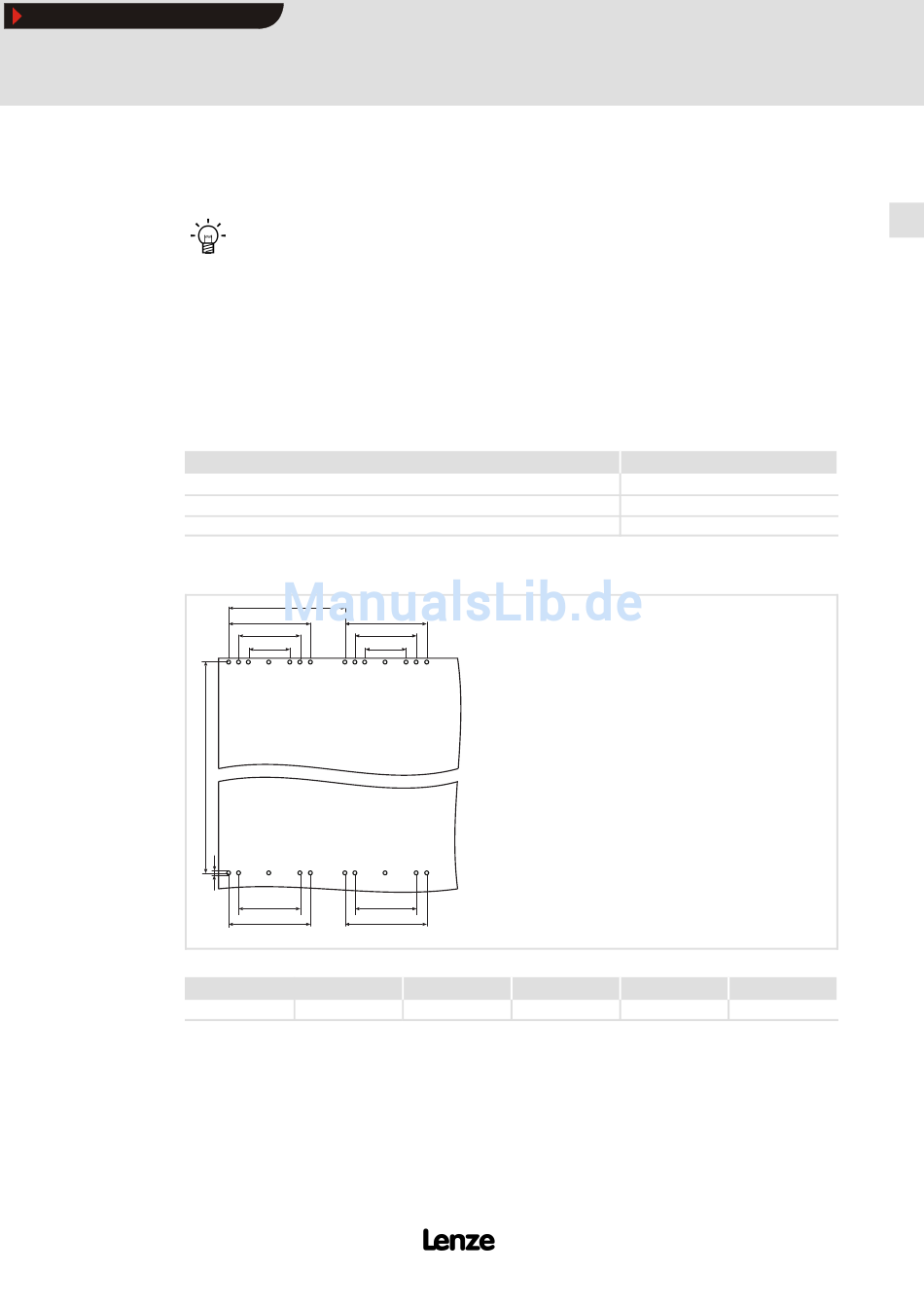

Bore holes in the mounting plate for fixing the controller
O a1
550 mm 450 mm
Mechanical installation
Drilling the holes into the mounting plate
a1
a2
a3
a2
a1
a2 a3
340 mm 225 mm
Minimum clearance
30 mm
100 mm
200 mm
B d
1005 mm 9 mm (24x)
