mectron COMPACT PIEZO LED Installationshandbuch Seite 12

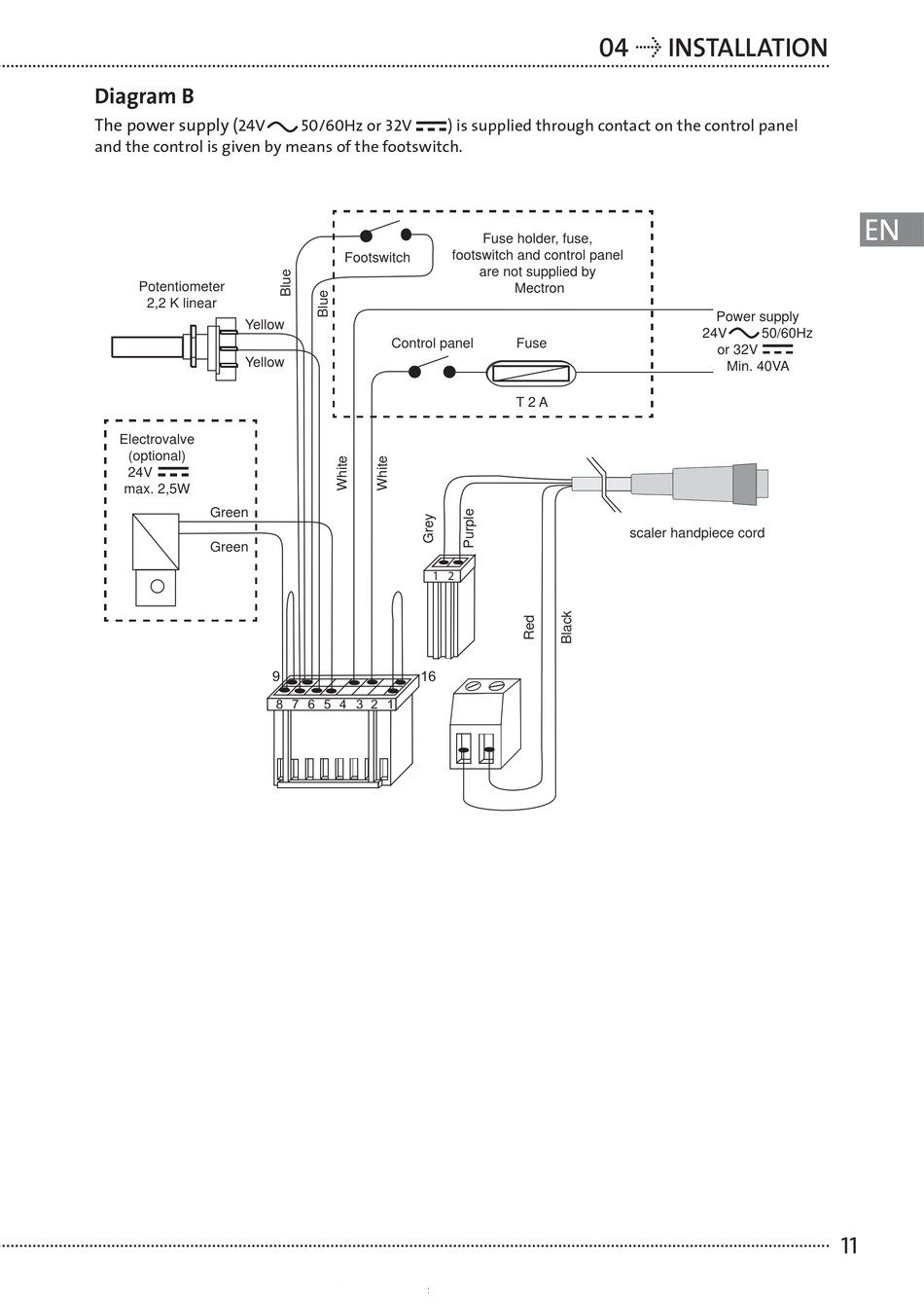

Diagram B
24V
The power supply (
and the control is given by means of the footswitch.
Potentiometer
2,2 K linear
Yellow
Yellow
Electrovalve
(optional)
24V
max. 2,5W
Green
Green
50/60Hz or 32V
Footswitch
Control panel
1 2
9 16
8 7 6 5 4 3 2 1
04 Û INSTALLATION
) is supplied through contact on the control panel
Fuse holder, fuse,
footswitch and control panel
are not supplied by
Mectron
Fuse
T 2 A
Power supply
24V 50/60Hz
or 32V
Min. 40VA
scaler handpiece cord
EN
11
