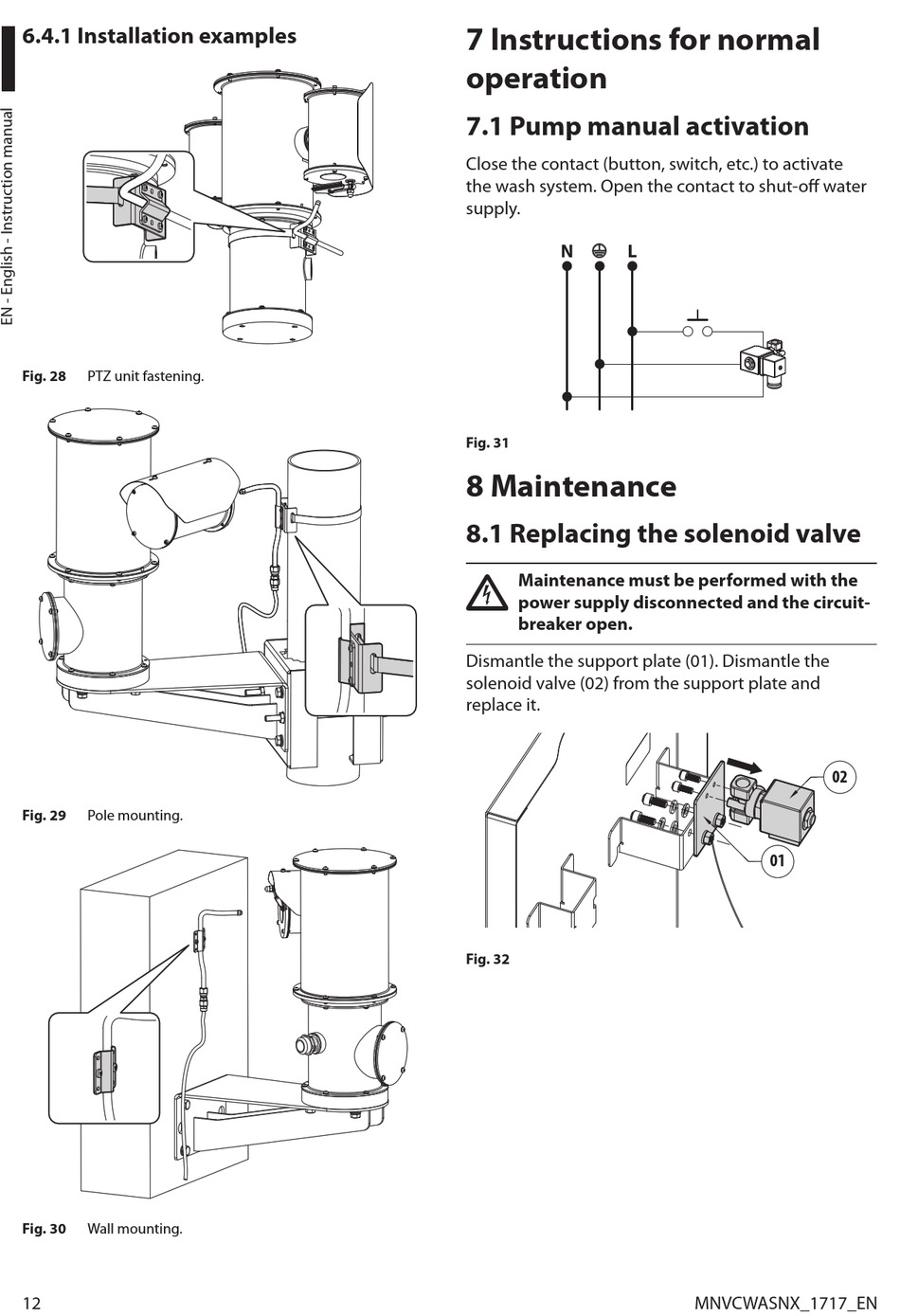

6.4.1 Installation examples

Fig. 28 PTZ unit fastening.
Fig. 29 Pole mounting.
Fig. 30 Wall mounting.
12
7 Instructions for normal
operation

7.1 Pump manual activation

Close the contact (button, switch, etc.) to activate
the wash system. Open the contact to shut-off water
supply.
N L
a
Fig. 31

8 Maintenance

8.1 Replacing the solenoid valve

Maintenance must be performed with the
power supply disconnected and the circuit-
breaker open.
Dismantle the support plate (01). Dismantle the
solenoid valve (02) from the support plate and
replace it.
Fig. 32
02
01
