6.2.3 Connection of the solenoid valve

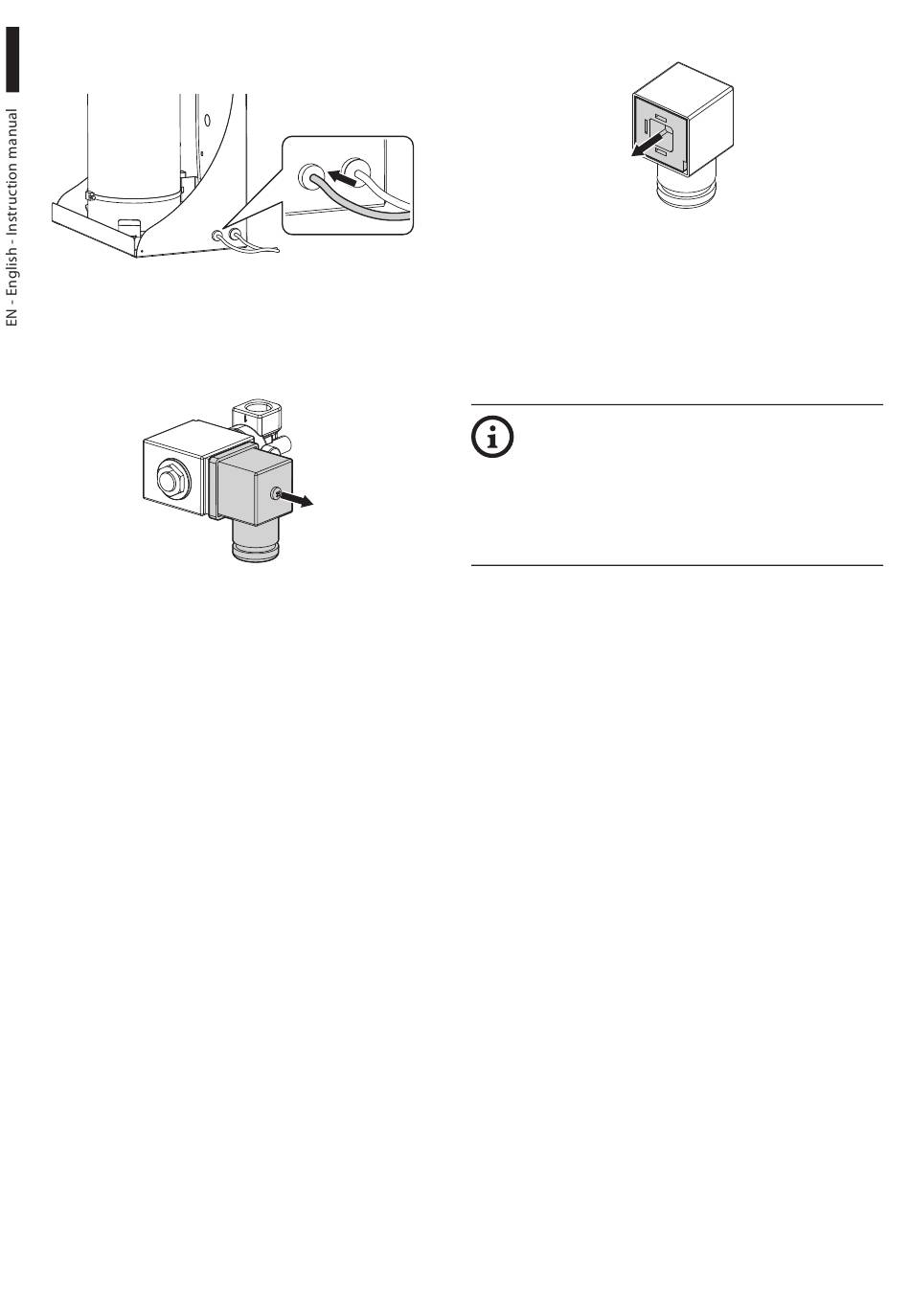

Pass the power supply cable through the sealing ring.
Fig. 18
Connect the power supply cable to the connector as
described below.
Unscrew the screw and remove the connector.
Fig. 19
10
Remove the terminal block from the connector hood.
Fig. 20
Unscrew and remove the cable gland. Insert the
power supply cable and connect it to the terminal
block.
Re-insert the terminal block in the connector and
tighten the cable gland. Connect the connector to
the solenoid valve and screw in the screw.
Use cables with the characteristics outlined
below.
• Diameter: from 6mm (0.24in) up to 8mm
(0.3in).
• Section (single conductor): 1.5mm²
(15AWG) max.

6.3 Product closure

After installation and wiring, close the product again.
