6.4 Washer installation (NXPTZ
range)

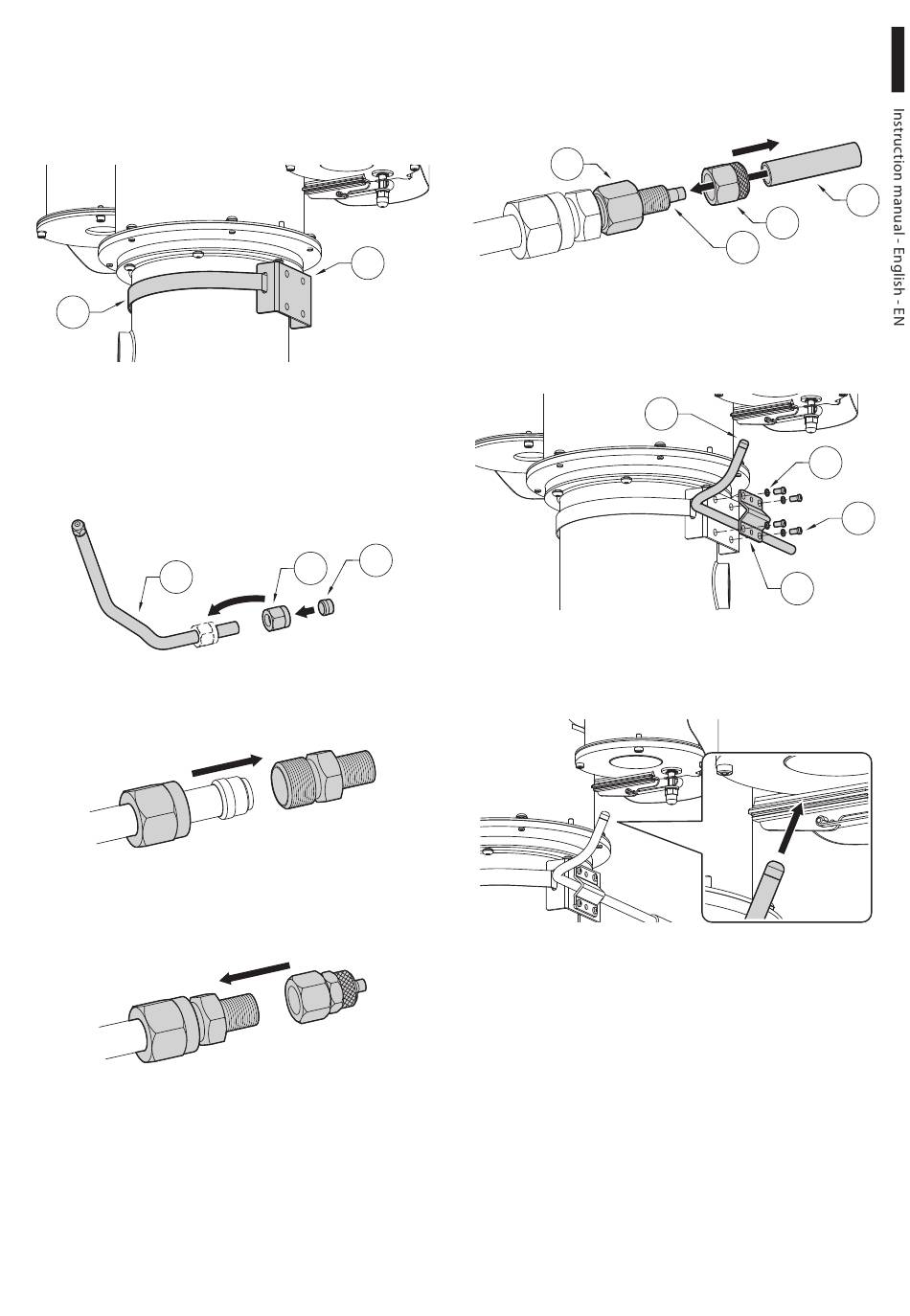

Fasten the support (01) onto the PTZ unit body with
the metal clip (02) provided.
02
Fig. 21
Shorten the semi-rigid washer pipe (01) as needed.
Unscrew the nut (02) from the joint and slide it along
the pipe. Insert the end of the pipe into the ogive
(03).
01
Fig. 22
Lock the nut to the coupling.
Fig. 23
Tighten the delivery joint.
Fig. 24
MNVCWASNX_1717_EN
Unscrew the knurled nut (01) from the delivery joint
(02). Insert the knurled nut on the delivery pipe (03).
Insert the end of the delivery pipe into the spinner
(04). Lock the nut to the coupling.
01
Fig. 25
Fasten the semi-rigid pipe (01) to the washer support
using the plate (02), the screws (03) and the washers
(04) supplied.
03
02
Fig. 26
To calibrate the jet, orientate the nozzle towards the
window of the housing.
Fig. 27
02
01
03
01
04
04
03
02
