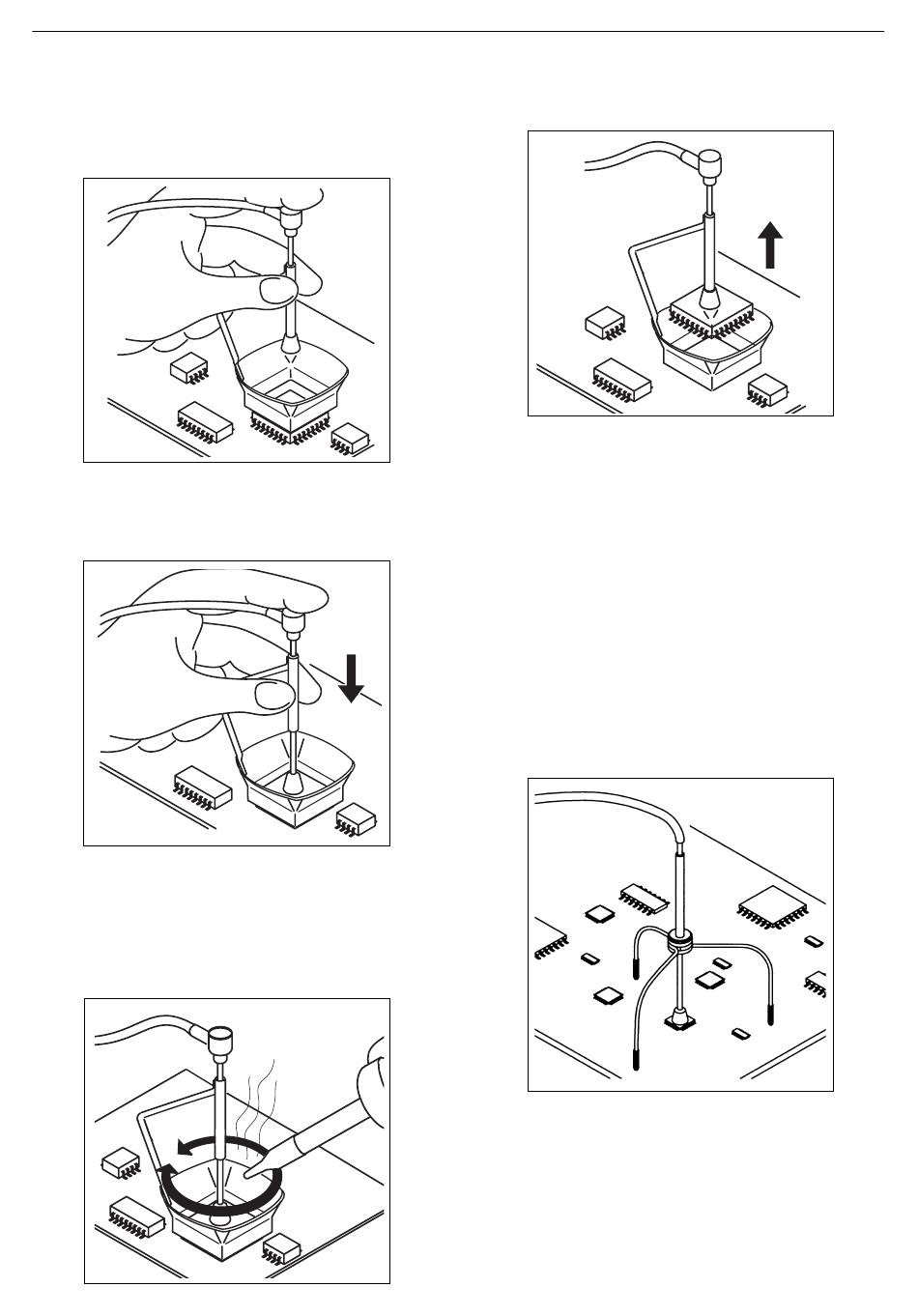

B) Extractor:
- Select extractor size in function of the IC to
be desoldered. Use the SUCTION button to
start the pump.
- Place the extractor and press the suction cup
until it sticks onto the component.
- Use the pedal or the HEAT button to start the
self-contained hot-air pump, directing it with a
circular movement at the component terminals
and taking care to distribute the heat evenly.
- When the soldering flux turns liquid the
extractor will automatically lift the component.
There are different models of protectors and
extractors as accessories.
The measurements of all the extractors and
protectors are given on page 68 of instructions
manual.
C) Tripod:
For small components for which an extractor
cannot be used, we recommend use of 20 tripod
Ref. 0932050, as shown in the figure.
Use the 40 tripod Ref. 0932250 for larger integrated
circuits.
