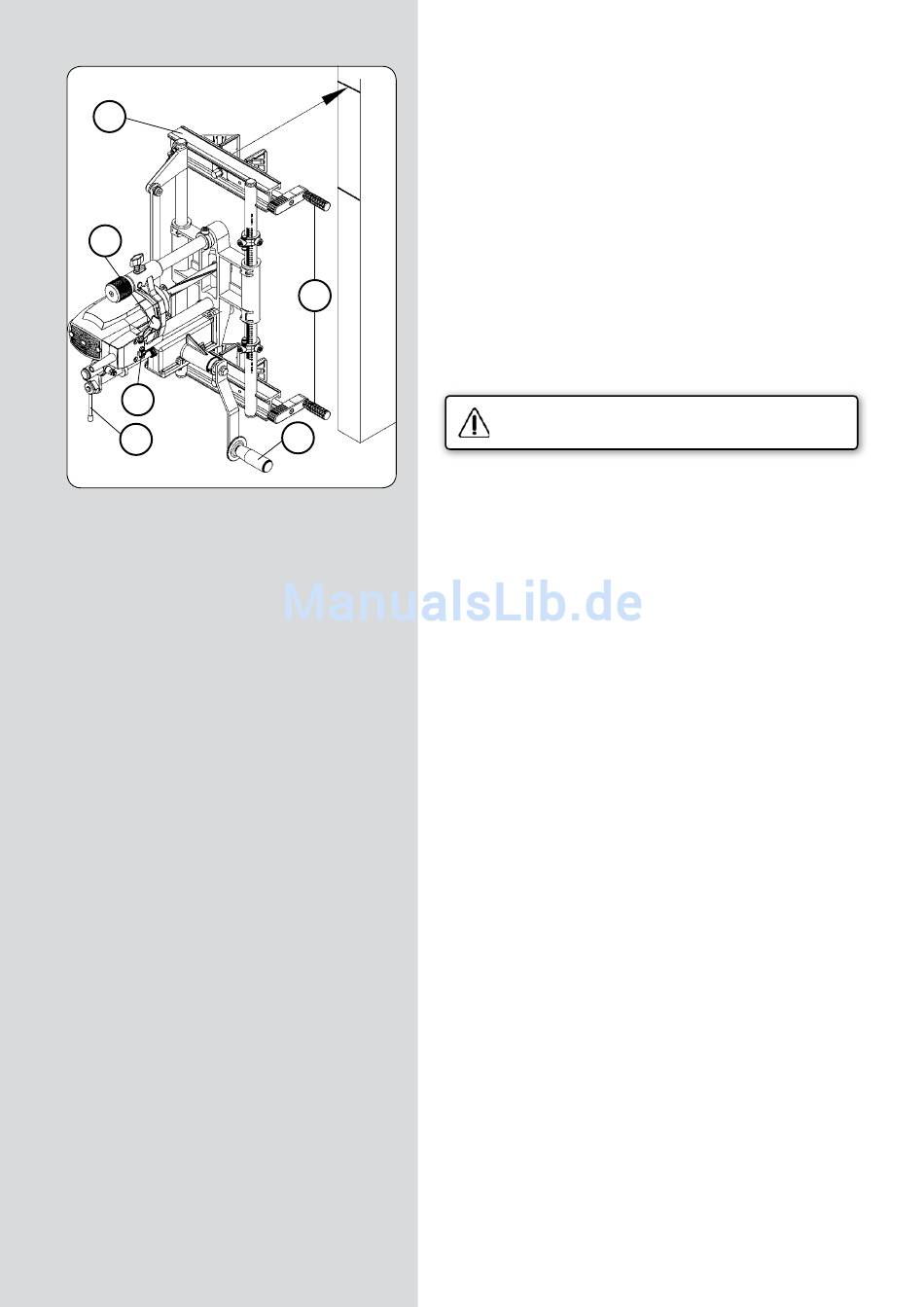

(Figure 10)

TRIMMING THE BOX FITTING

"rs"
• Hold the machine against the door, aligning the upper edge
of the crossbeam "V" (Fig. 10) with the upper reference tracing
"rs" (Fig. 10) and firmly fix the clamps with crank handles "K"
(Fig. 10).
• Check that the advance crank handle "A" (Fig. 7) is able to turn
"c"
freely over the whole path.
• Turn locking bar "J" (Fig. 10) to the vertical position to gear the
trimming depth advance mechanism.
• Connect the machine to the mains, switch on the motor, pres-
sing the lever "Y" (Fig. 10) and set the safety "Z" (Fig. 10).
K
• Turn the advance crank handle "A" (Fig. 10) repeatedly to
effect a synchronised tool advance, both lengthways and in
depth, to the end of the path as fixed in section 10.
• Stop the machine by activating lever "Y" (Fig. 10).
A
• Turn the locking bar "J" (Fig. 10) to the horizontal position,
completely freeing the advance mechanism of the tool and the
motor goes back to the end of the stretch.
Disconnect the trimmer from the mains.
