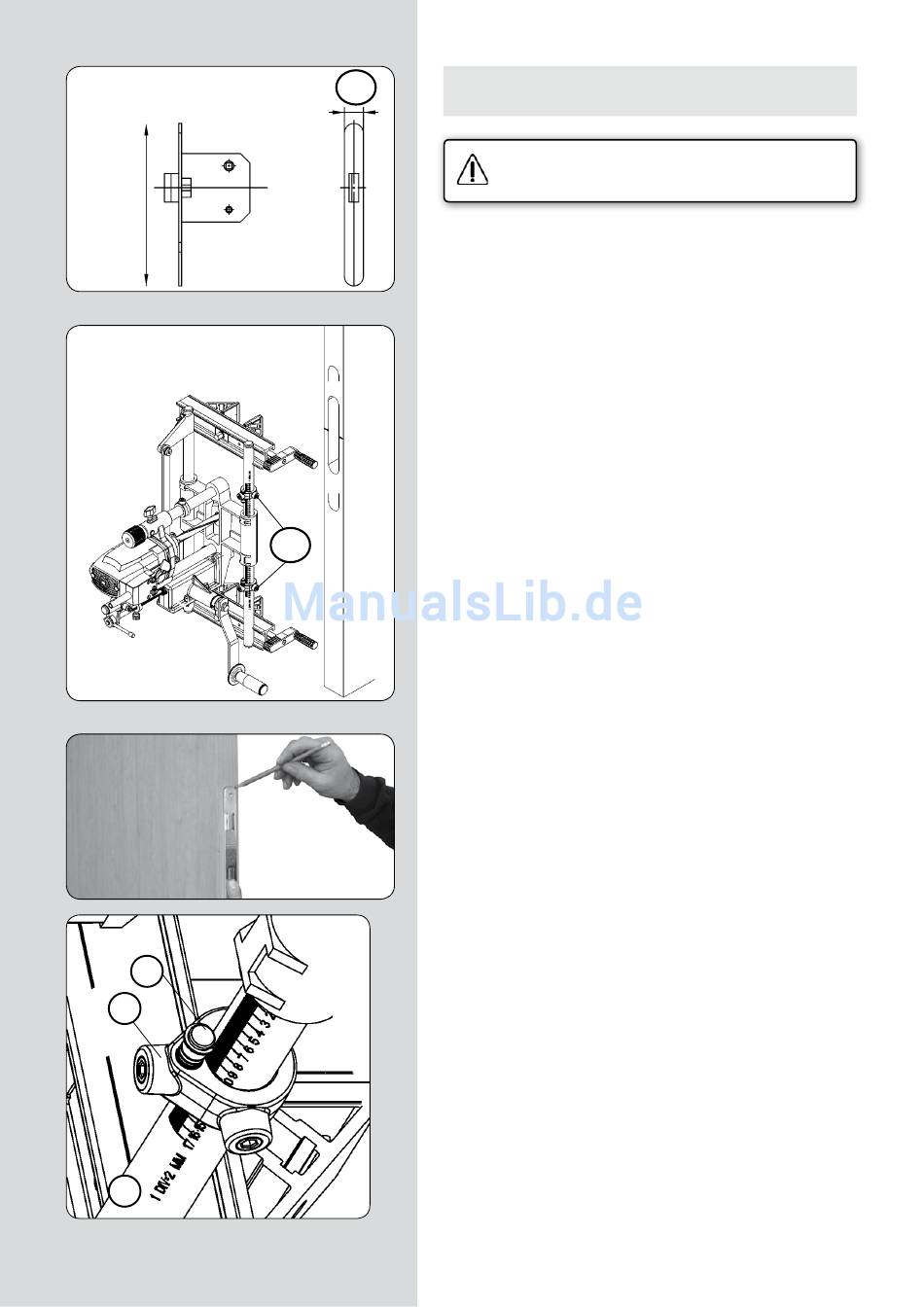

"Nt"
(Figure 11.2)
(Figure 12.2)
S2
S1
S
(Figure 14.2)
26 - FC116U / Operating instructions

12.2. TRIMMING THE FITTING FOR THE FRONT PLATE OF

N1

THE LOCK FOR AN "Nt" OF MORE THAN 170 mm

CHANGING THE TRIMMING

• • Measure the width "N1" (Fig. 11.2) of the front of the lock
and attach a mortising bit of the correct size to the machine,
following the instructions in section 6 of the manual.

MEASURING AND MARKING

• Position the lock inside the fitting made for the box and mark
the two ends of the front plate on the edge of the door (Fig.
12.2 and 13.2)
S1

ADJUST THE TRIMMING PATH

• Adjust the length of the trim on the connecting rod to 170
mm, as explained in section 9 (Fig. 6) of this manual.
• Fix the two longitudinal stops "S1" (Fig. 12.2 and 14.2) on the
division corresponding to 160 mm using the scale on the guide
column "S" (Fig. 14.2).

ADJUSTING THE DEPTH OF THE TRIM

(Figure 13.2)
• Adjust the depth of the trim as explained in section 12.1 above.
Check that the trimmer is disconnected from the
mains.
