OPERATING
GB

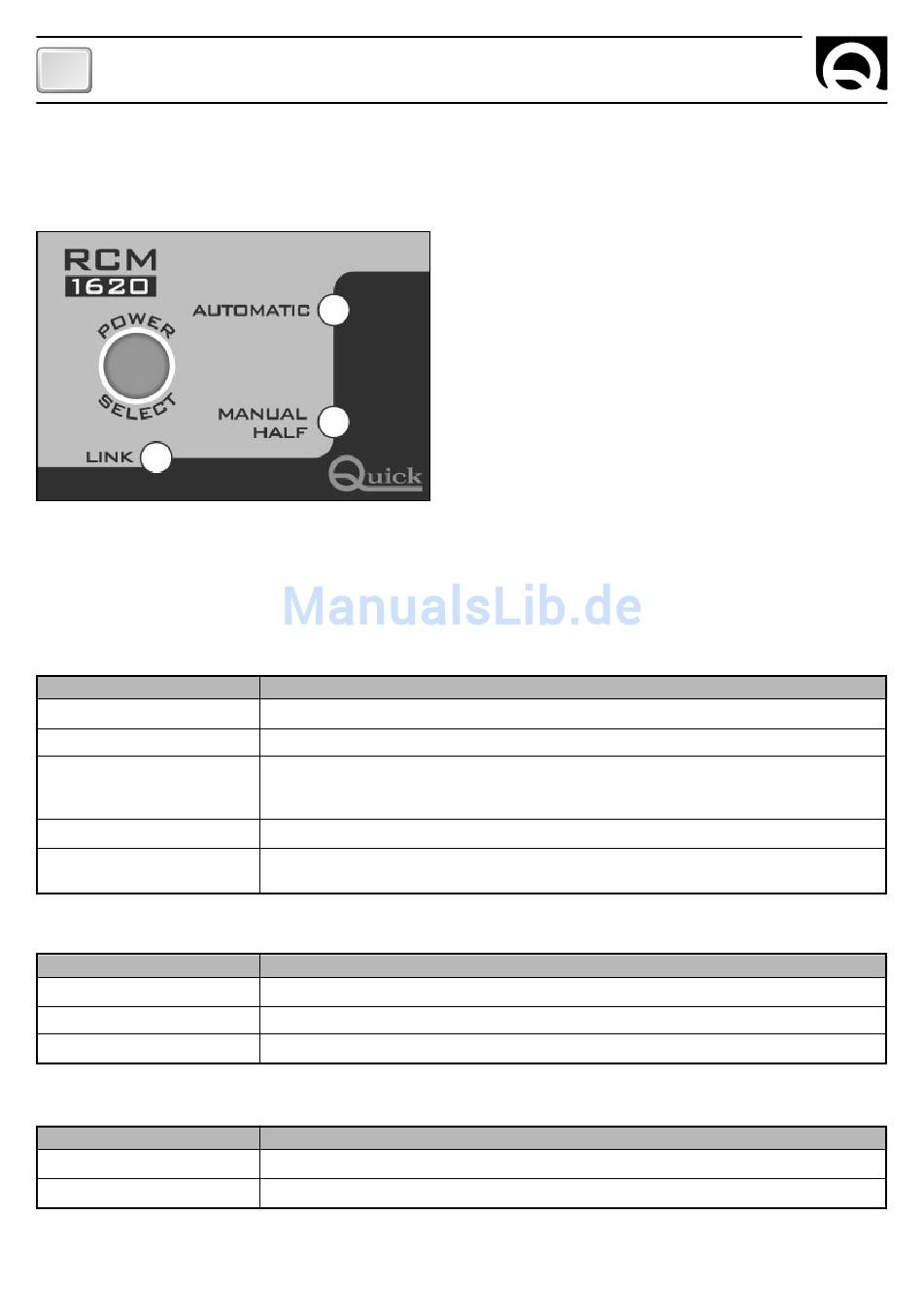

CONTROL PANEL

The control panel is composed of 3 leds and one button:
led LINK, led AUTOMATIC, led MANUAL HALF and POWER SELECT button.
POWER SELECT button:
this button activates or deactivates the manual half power mode.
The information supplied by the LEDS are listed as below:
LED LINK
LED STATUS
Off
Always on
Led flashes slowly
Led flashes quickly
The led goes off for a short period.
LED AUTOMATIC
LED STATUS
Off
Always on
Led flashes
LED MANUAL HALF
LED STATUS
Off
Always on
18
DESCRIPTION
The RCM 1620 instrument is off.
Link present.
Link not present. If the battery charger is off or in programming mode, this signal is correct.
If the battery charger is turned on, check the data transmission cable connection, the group
configuration, the priority and CAN termination.
Dip-switch in wrong position.
The battery charger of the group is off or not present. If even only one battery charger in the group
is off, this signal is correct. Check the programming by means of the dip-switches.
DESCRIPTION
The battery charger is not in this mode.
The battery charger is in automatic half power mode.
The battery charger is in automatic mode.
DESCRIPTION
The battery charger is not in this mode.
The battery charger is in manual half power mode.
RCM 1620 - REV003A
