Instrument Operation - Quick RCM 1620 Benutzerhandbuch

NOTE:
if the instrument is part of a CAN network in which there are several battery charges inside a single group,
enable the priorities of all the battery charges in the group by means of the dip switch on the instrument.
FACTORY SETTING:
A
GROUP
1
PRIORITY DEACTIVATED
2
PRIORITY DEACTIVATED
3
PRIORITY DEACTIVATED
CAN TERMINATION DEACTIVATED

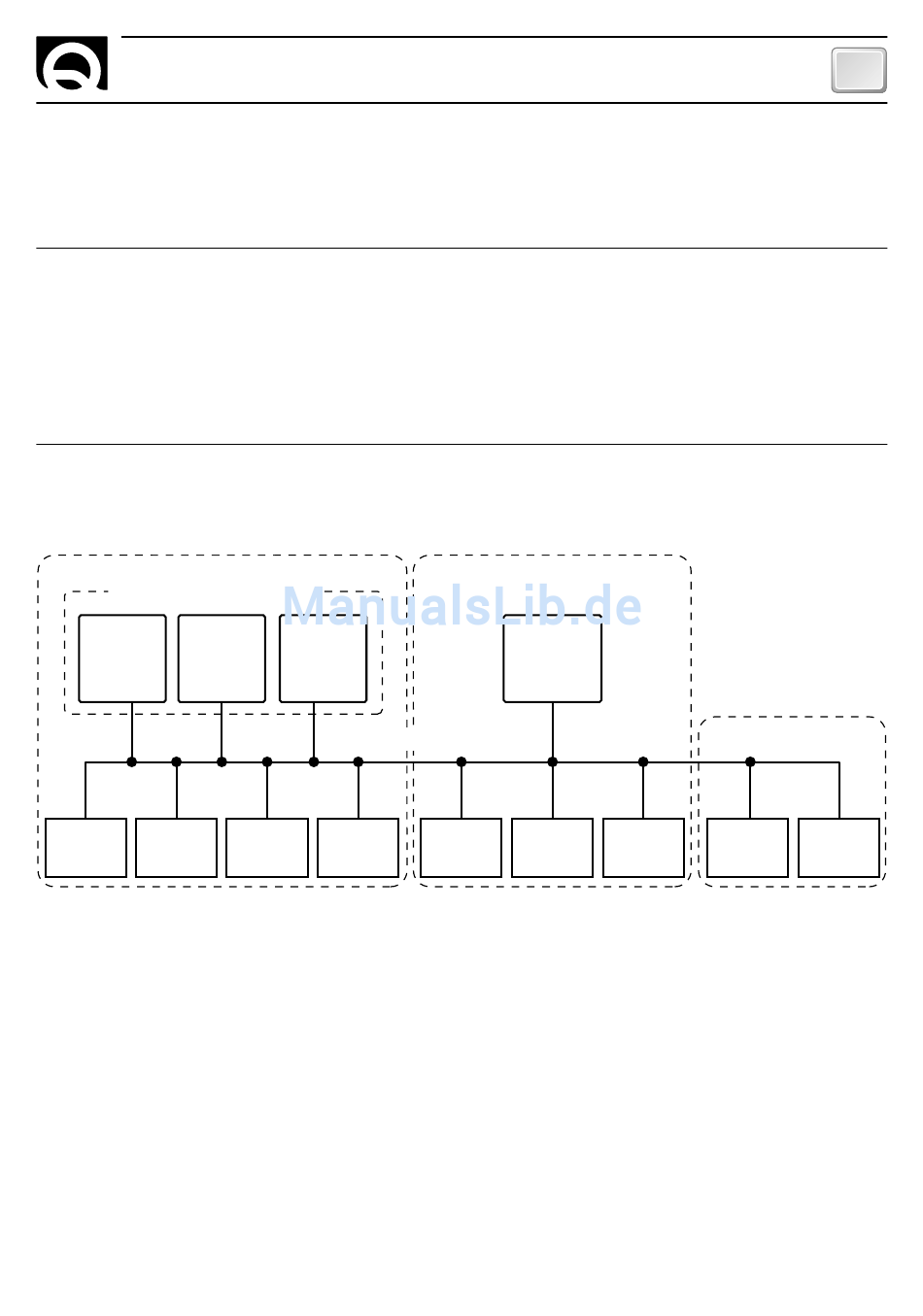

A possible CAN network is illustrated below:
GROUP A
UNITS IN PARALLEL
SBC 1950
SBC 1950
ADVANCED
ADVANCED
PLUS
PLUS
(PRIORITY 1)
(PRIORITY 2)
RCM 1620 KTB4
For more information about battery charger configuration, consult the User's manual for the battery charger
used.

INSTRUMENT OPERATION

Before switching on power to the Instrument, check that the dip-switch configuration is correct.
After connecting the power to the Instrument, all the leds come on for two seconds. If the connections are cor-
rect, the led LINK will remain on and the instrument will display the power mode of the battery charger status.
RCM 1620 - REV003A
SBC 1950
ADVANCED
PLUS
(PRIORITY 3)
CAN NETWORK
RDS 1540 RDS 1520
GROUP B
SBC 1100
ADVANCED
PLUS
(PRIORITY 1)
RDS 1540 RCM 1620
OPERATING
GROUP U
INTERFACE
RDS 1520
GSM
GB
LCD
TERMINAL
