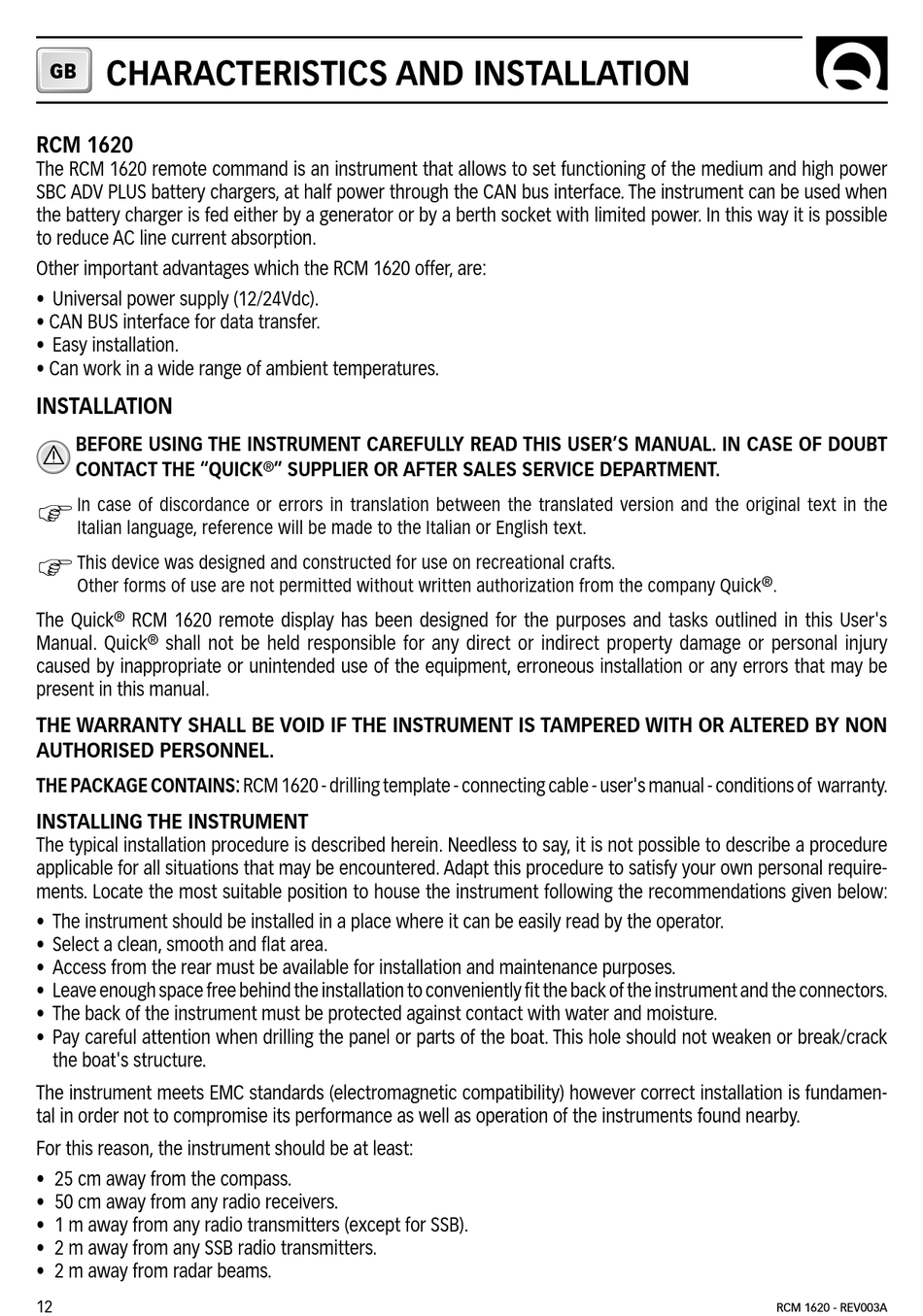

CHARACTERISTICS AND INSTALLATION
GB
RCM 1620
The RCM 1620 remote command is an instrument that allows to set functioning of the medium and high power
SBC ADV PLUS battery chargers, at half power through the CAN bus interface. The instrument can be used when
the battery charger is fed either by a generator or by a berth socket with limited power. In this way it is possible
to reduce AC line current absorption.
Other important advantages which the RCM 1620 offer, are:
• Universal power supply (12/24Vdc).
• CAN BUS interface for data transfer.
• Easy installation.
• Can work in a wide range of ambient temperatures.
INSTALLATION
BEFORE USING THE INSTRUMENT CAREFULLY READ THIS USER'S MANUAL. IN CASE OF DOUBT
CONTACT THE "QUICK
F
In case of discordance or errors in translation between the translated version and the original text in the
Italian language, reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
®
The Quick RCM 1620 remote display has been designed for the purposes and tasks outlined in this User's
®
Manual. Quick shall not be held responsible for any direct or indirect property damage or personal injury
caused by inappropriate or unintended use of the equipment, erroneous installation or any errors that may be
present in this manual.
THE WARRANTY SHALL BE VOID IF THE INSTRUMENT IS TAMPERED WITH OR ALTERED BY NON
AUTHORISED PERSONNEL.
THE PACKAGE CONTAINS: RCM 1620 - drilling template - connecting cable - user's manual - conditions of warranty.
INSTALLING THE INSTRUMENT
The typical installation procedure is described herein. Needless to say, it is not possible to describe a procedure
applicable for all situations that may be encountered. Adapt this procedure to satisfy your own personal require-
ments. Locate the most suitable position to house the instrument following the recommendations given below:
• The instrument should be installed in a place where it can be easily read by the operator.
• Select a clean, smooth and flat area.
• Access from the rear must be available for installation and maintenance purposes.
• Leave enough space free behind the installation to conveniently fit the back of the instrument and the connectors.
• The back of the instrument must be protected against contact with water and moisture.
• Pay careful attention when drilling the panel or parts of the boat. This hole should not weaken or break/crack
the boat's structure.
The instrument meets EMC standards (electromagnetic compatibility) however correct installation is fundamen-
tal in order not to compromise its performance as well as operation of the instruments found nearby.
For this reason, the instrument should be at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any SSB radio transmitters.
• 2 m away from radar beams.
12
®
" SUPPLIER OR AFTER SALES SERVICE DEPARTMENT.
®
.
