ACTIVATING THE TERMINATORS
Activate the termination at the first and last device connected to the network. To activate the termination, see
fig. 2 and paragraph SETTING UP THE INSTRUMENT.
An example showing network connection is given below:
FIG. 2
ON
1 2 3 4 5 6
DIP-SWITCH

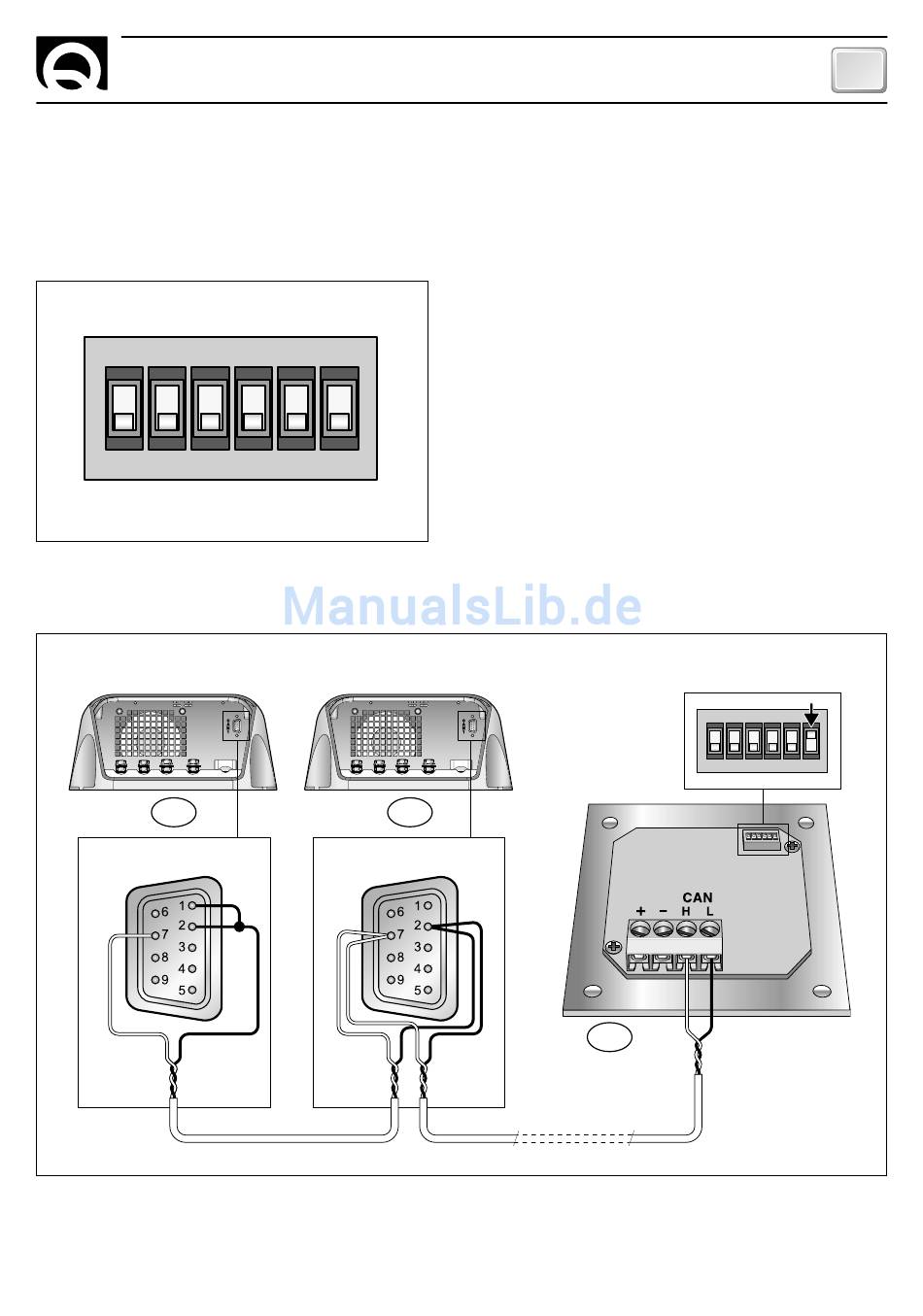

A possible CAN network is illustrated below:
SBC ADV PLUS
1
DB9 TERMINATION ACTIVED
RCM 1620 - REV003A
SBC ADV PLUS
2
DB9
OPERATING
DIP-SWITCH
1 2 3 4
20
CAN DEVICES
DA 3 A 19
GB
TERMINATION
ACTIVED
