Changing the blade
1. Turn off the tile saw and pull out the plug from the wall socket.

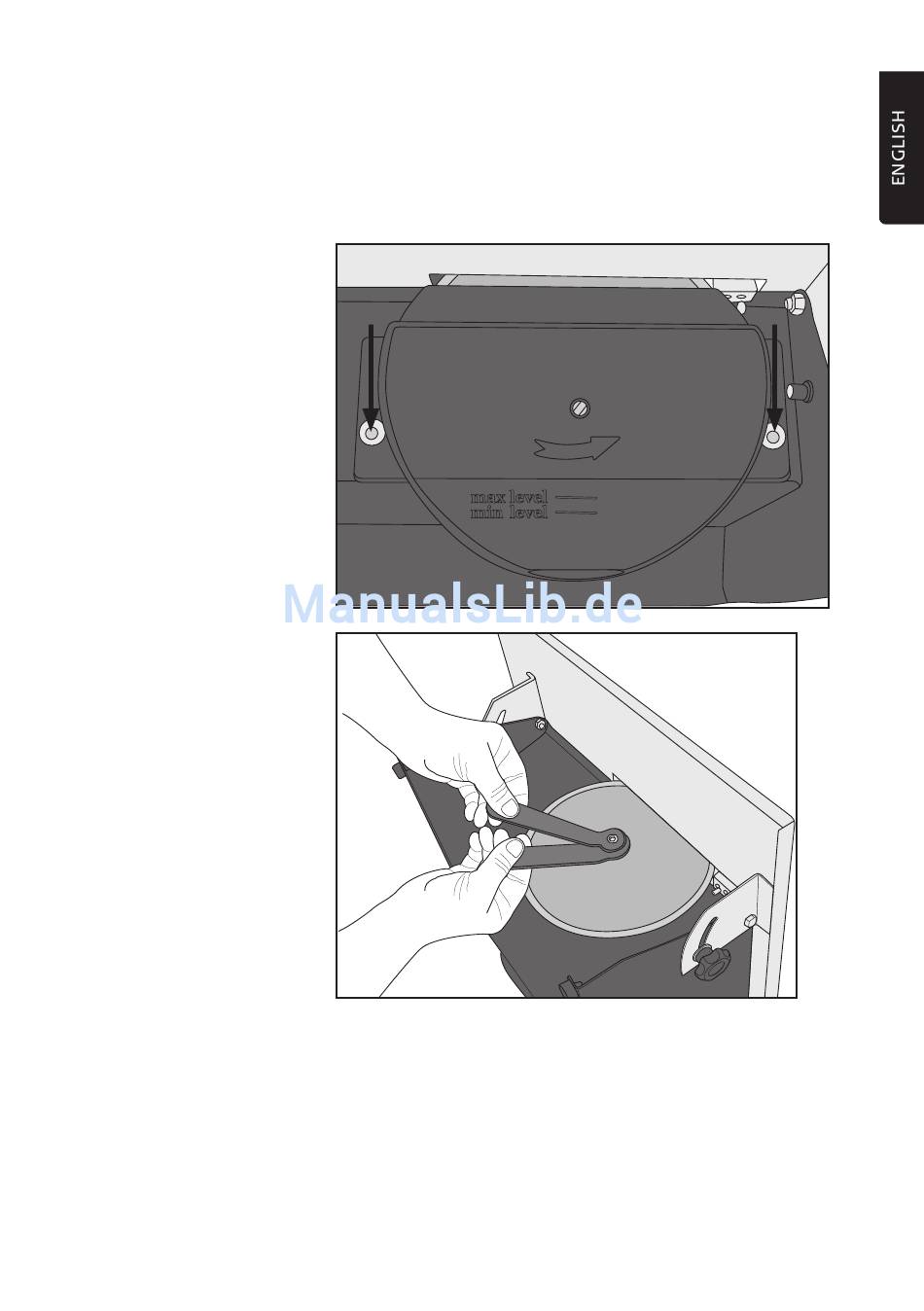

2. Remove the water tray.
3. Remove the blade
guard using
a crosshead
screwdriver.
4. Unscrew the blade
lock nut from
the spindle and
remove the outer
flange washer using
the two provided
spanners. The inner
flange washer should
be left on the spindle.
5. Slide the new blade onto the spindle, observing the direction of rotation arrow,
and then replace the flange washer and lock nut.
6. Tighten the nut properly, but do not overtighten it.
9
