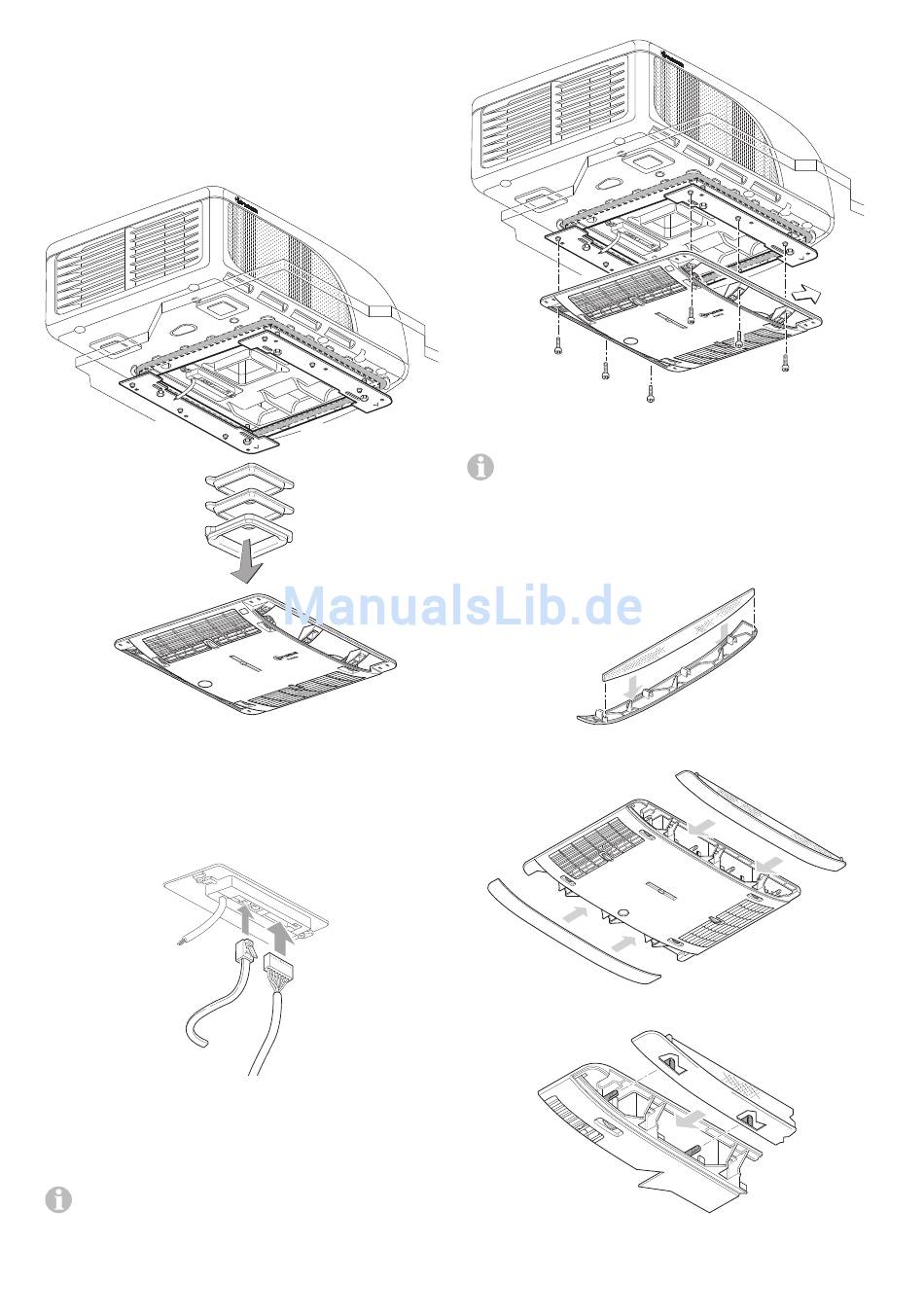

Use of roof thickness adapters

Slide in the base ring (1) and, depending on the thickness of
the roof, the roof thickness adapters (2 or 2+3 included in
scope of delivery) for roof thicknesses of 25 to 50 mm into the
air distributor as far as they will go. If the roof is thicker, use
additional 10 mm roof thickness adapters (see Accessories).
Maximum roof thickness 110 mm
3
2
1
Figure 25
Securing the air distributor
Connect the cable from the air distributor and the control panel
cable to the control unit.
Figure 26
Screw air distributor (arrow in direction of travel) to brackets
with 6 screws M6 x 12 mm.
Torque 1.8 Nm. If the torque is too great, the air distributor
can be damaged or its function impaired.
The covering tape that is available as an accessory can
be used to compensate for the gap between the air dis-
tributor and the roof.
26 EN
25 – 30 mm = 1
31 – 40 mm = 1+2
41 – 50 mm = 1+2+3
Figure 27
If the screws are used more than once (e.g. after remov-
al) they must be coated with low-strength screw sealant
again (e.g. Loctite) or the screws provided as spare parts used.

Insert the filter into the air distributor

Insert filters into panels and attach to the air distributor.
Figure 28
Figure 29
Figure 30
1.8 Nm
