Preparation for power cable connection and
control panel cable
Provide the lead-through to the connection point for the
mains cable and control panel cable, e.g. in the false ceiling.

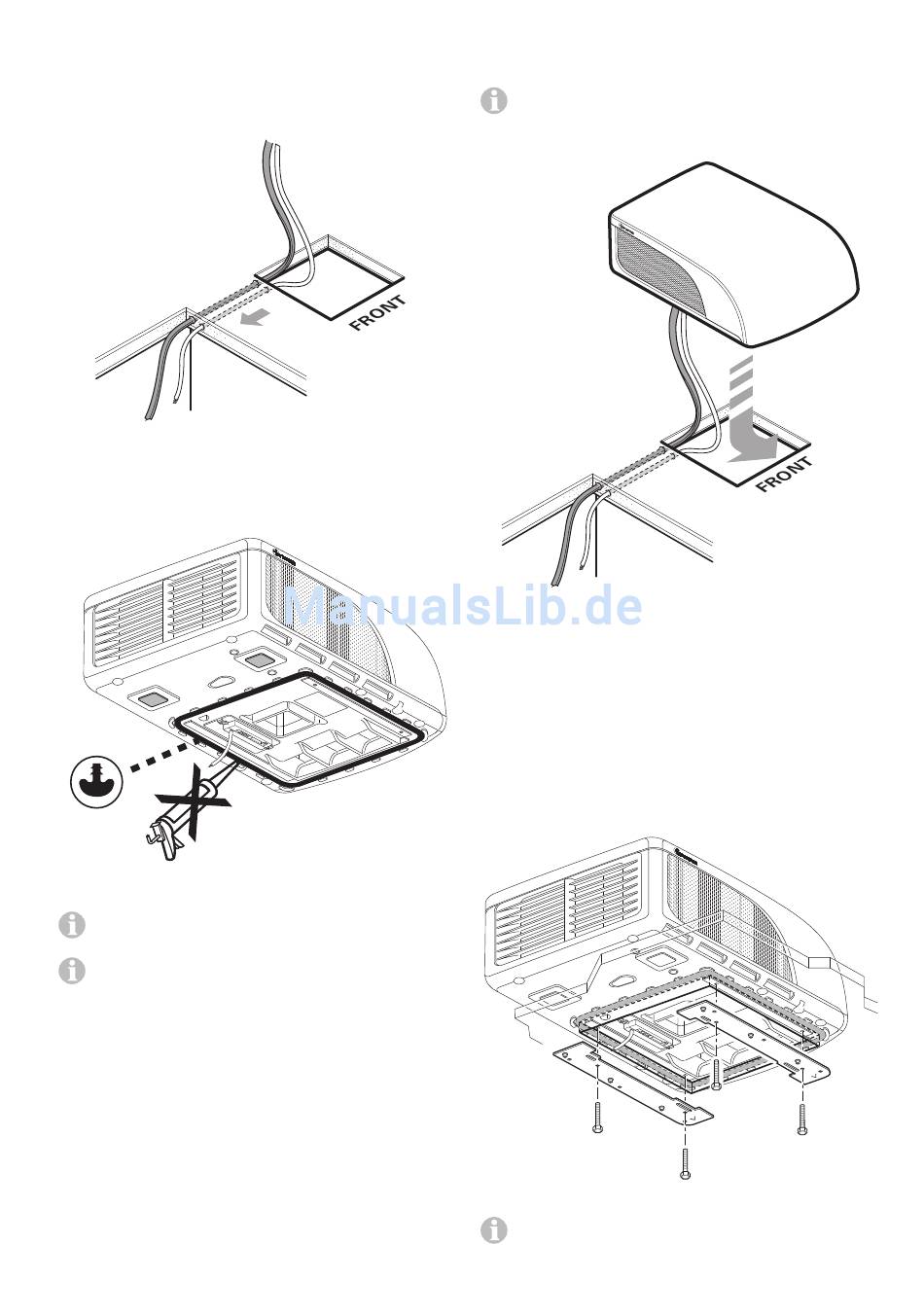

Figure 21
Move the appliance to the roof in a horizontal position and
insert into cut-out. The arrow should point in the direction of
travel.
Figure 22
Do not apply additional sealant between the air condi-
tioning system and the roof.
If the appliance has been turned over or is not horizon-
tal, you must wait for 2 hours before switching on the
device.
Push device forwards in cut-out as far as it will go.
Remove protective film from the appliance.
Route the power cable and control panel cable to the connec-
tion point (lengthen the mains cable with the provided Wago
clamps if necessary).
If the lighting of the air distributor is also going to be
optionally operated using 12 V, the 12 V adapter that is
available as an accessory must now be connected. The instal-
lation instructions are provided with the 12 V adapter.
Figure 23

Securing the appliance

Screw the two brackets (marked with an arrow in the direction
of travel) to the appliance using the 4 provided M6 x 70 screws
(with screw sealant).
Torque 1.8 Nm
If the roof is more than 50 mm thick, M6 screws
(length = roof thickness + 30 mm) with tensile strength of 8.8
must be used. The screws must be secured with low-strength
screw sealant (e.g. Loctite).
Figure 24
If the screws are used more than once (e.g. after removal)
they must be coated with low-strength screw sealant
again (e.g. Loctite) or the screws provided as spare parts used.
1.8 Nm
