c) Installing the Wings

Push the wing spar (1) into one half of the wing (2) as far as possible.
Connect the servo connection cables of the wing servos (1) to their respective
counterparts inside the fuselage (2).
Our advice: To prevent the plug connection from coming loose, use heat-shrink
tube or adhesive tape.
Verify the neutral position of the servo horn again as described under b) and
correct is as required.
Then push the wings together until the safety catch (3) engages.
When pushing together the two halves, ensure that none of the two servo cables
are squeezed!
d) Installing the Flight Battery
Switch on the transmitter and make sure that the motor speed control stick
(see fig. 2, item 10) is in the lowest position (motor off).
Connect the flight battery (1) to the flight controller connection cable (2). Now
the motor emits 3 audio signals.
Make sure to push the battery all the way forwards in the battery compartment.
Then attach the canopy. The magnets keep the canopy in place.
Attention!
Always remove the battery from the model for recharging. Never
recharge the battery directly in the model.
The heat generated by the recharging process can result in the
battery deforming and the model being severely damaged.

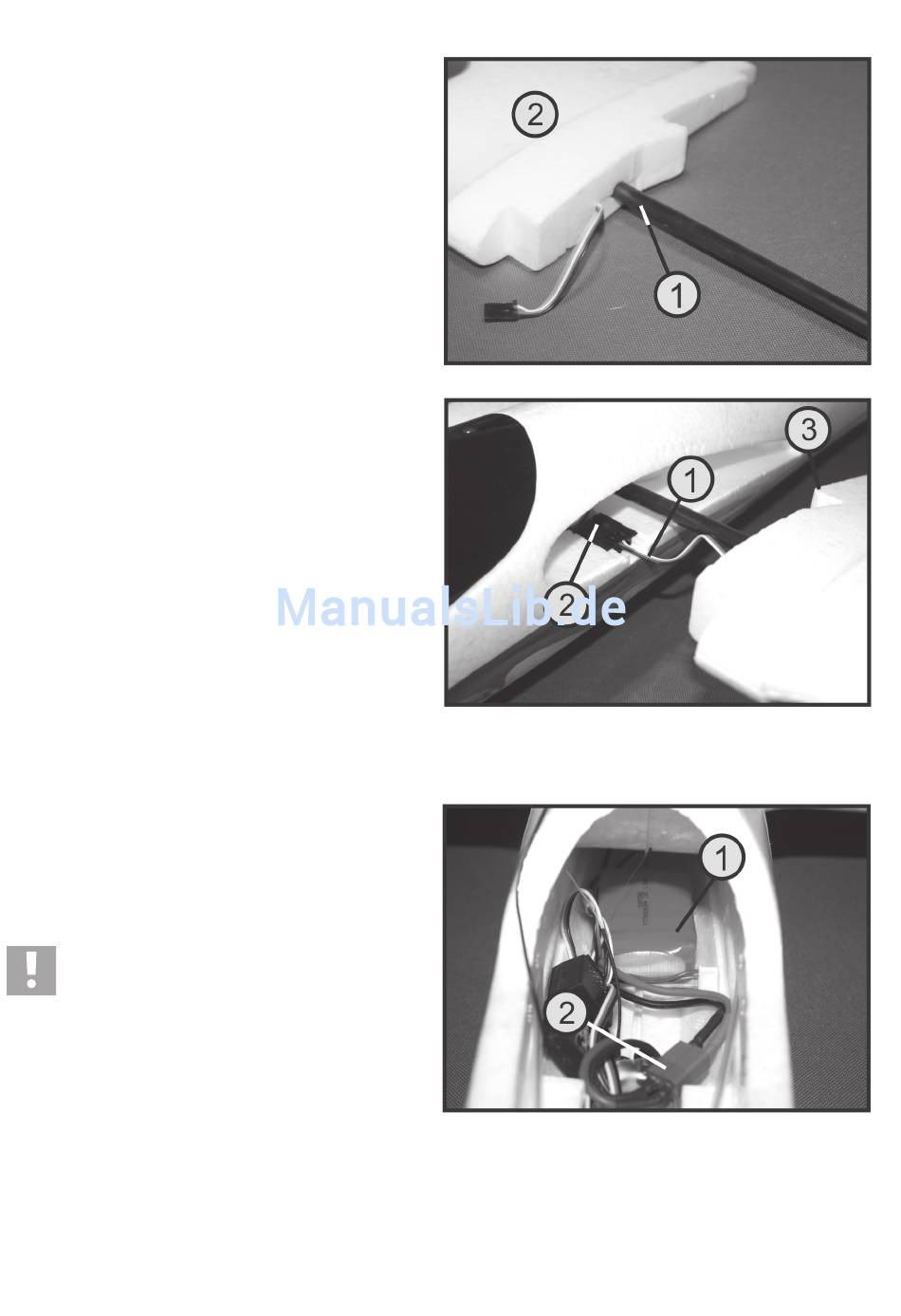

Figure 7a
