b) Linkage of the Tail Assembly

First switch on the transmitter and then the model (see chapter 10. g, "Inserting
the Flight Battery").
The rudder and elevator trim lever (see fig. 2, items 9 and 3) must be in their
centre positions. Ensure that the servo lever is in its neutral position. The servo
lever must be at a 90° angle to the longitudinal axis of the servo (version A).
If the servo lever is twisted on the servo (versions B or C), remove the small
screws in the middle of the servo lever, lift the servo lever off of the servo and
replace it in a 90° angle. Then reattach the servo lever with the servo screw.
Turn the clevis (1) to set the linkage rod length so that the rudder (2) is in its
neutral position.
When the rod is shortened properly, hook and attach the clevis to the medium
hole of the rudder horn (3).
Turn the clevis (1) to set the linkage rod length so that the elevator (2) is in its
neutral position.
When the rod is shortened properly, hook and attach the clevis to the medium
hole of the rudder horn (3).
32
B
A
SERVO SERVO
C
SERVO

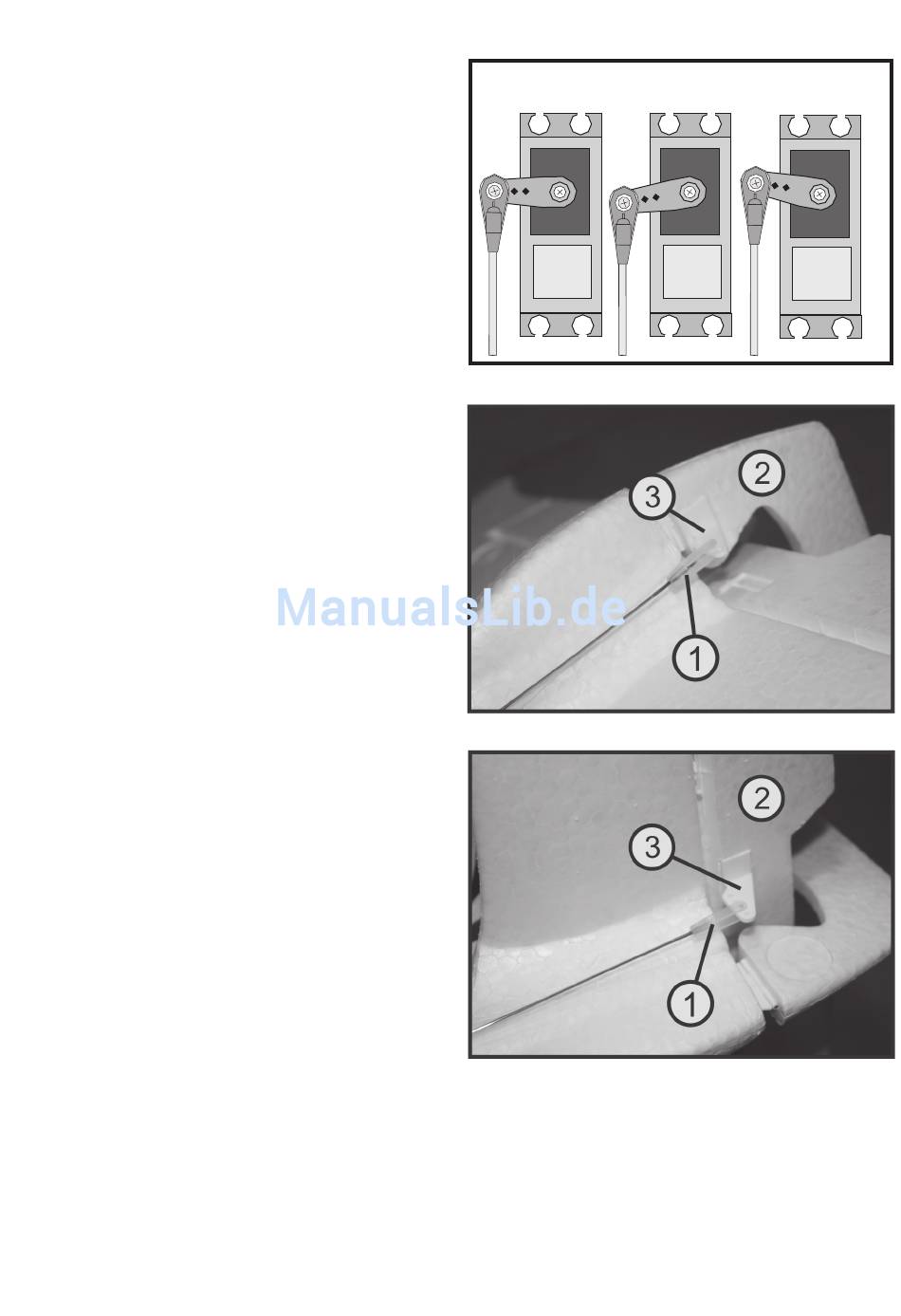

Figure 6a
Figure 6b
Figure 6c
