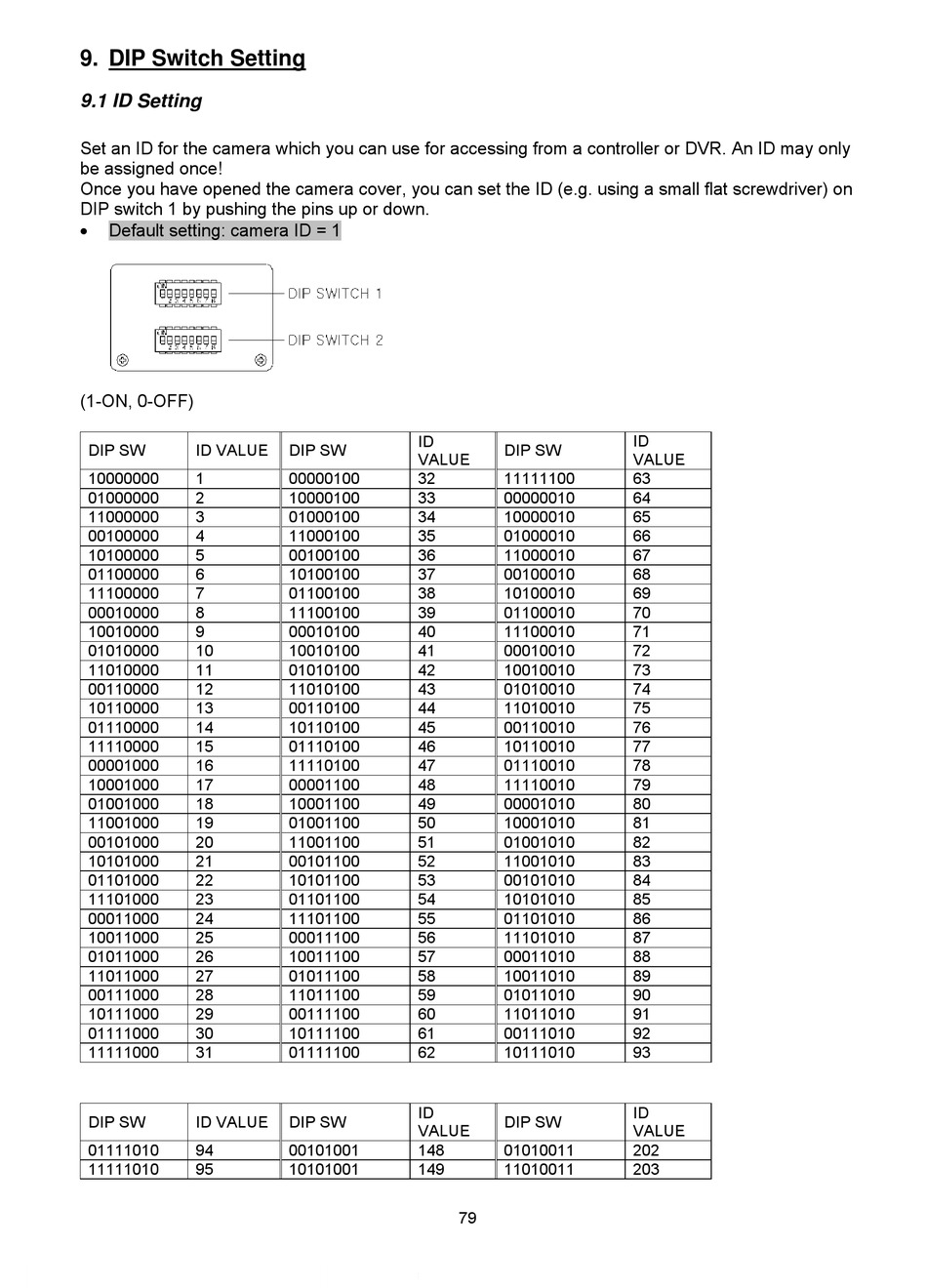

9. DIP Switch Setting

9.1 ID Setting

Set an ID for the camera which you can use for accessing from a controller or DVR. An ID may only
be assigned once!
Once you have opened the camera cover, you can set the ID (e.g. using a small flat screwdriver) on
DIP switch 1 by pushing the pins up or down.

Default setting: camera ID = 1
(1-ON, 0-OFF)
DIP SW ID VALUE
10000000 1
01000000 2
11000000 3
00100000 4
10100000 5
01100000 6
11100000 7
00010000 8
10010000 9
01010000 10
11010000 11
00110000 12
10110000 13
01110000 14
11110000 15
00001000 16
10001000 17
01001000 18
11001000 19
00101000 20
10101000 21
01101000 22
11101000 23
00011000 24
10011000 25
01011000 26
11011000 27
00111000 28
10111000 29
01111000 30
11111000 31
DIP SW ID VALUE
01111010 94
11111010 95
ID
DIP SW
VALUE
00000100 32
10000100 33
01000100 34
11000100 35
00100100 36
10100100 37
01100100 38
11100100 39
00010100 40
10010100 41
01010100 42
11010100 43
00110100 44
10110100 45
01110100 46
11110100 47
00001100 48
10001100 49
01001100 50
11001100 51
00101100 52
10101100 53
01101100 54
11101100 55
00011100 56
10011100 57
01011100 58
11011100 59
00111100 60
10111100 61
01111100 62
ID
DIP SW
VALUE
00101001 148
10101001 149
DIP SW
11111100
00000010
10000010
01000010
11000010
00100010
10100010
01100010
11100010
00010010
10010010
01010010
11010010
00110010
10110010
01110010
11110010
00001010
10001010
01001010
11001010
00101010
10101010
01101010
11101010
00011010
10011010
01011010
11011010
00111010
10111010
DIP SW
01010011
11010011
79
ID
VALUE
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
ID
VALUE
202
203
