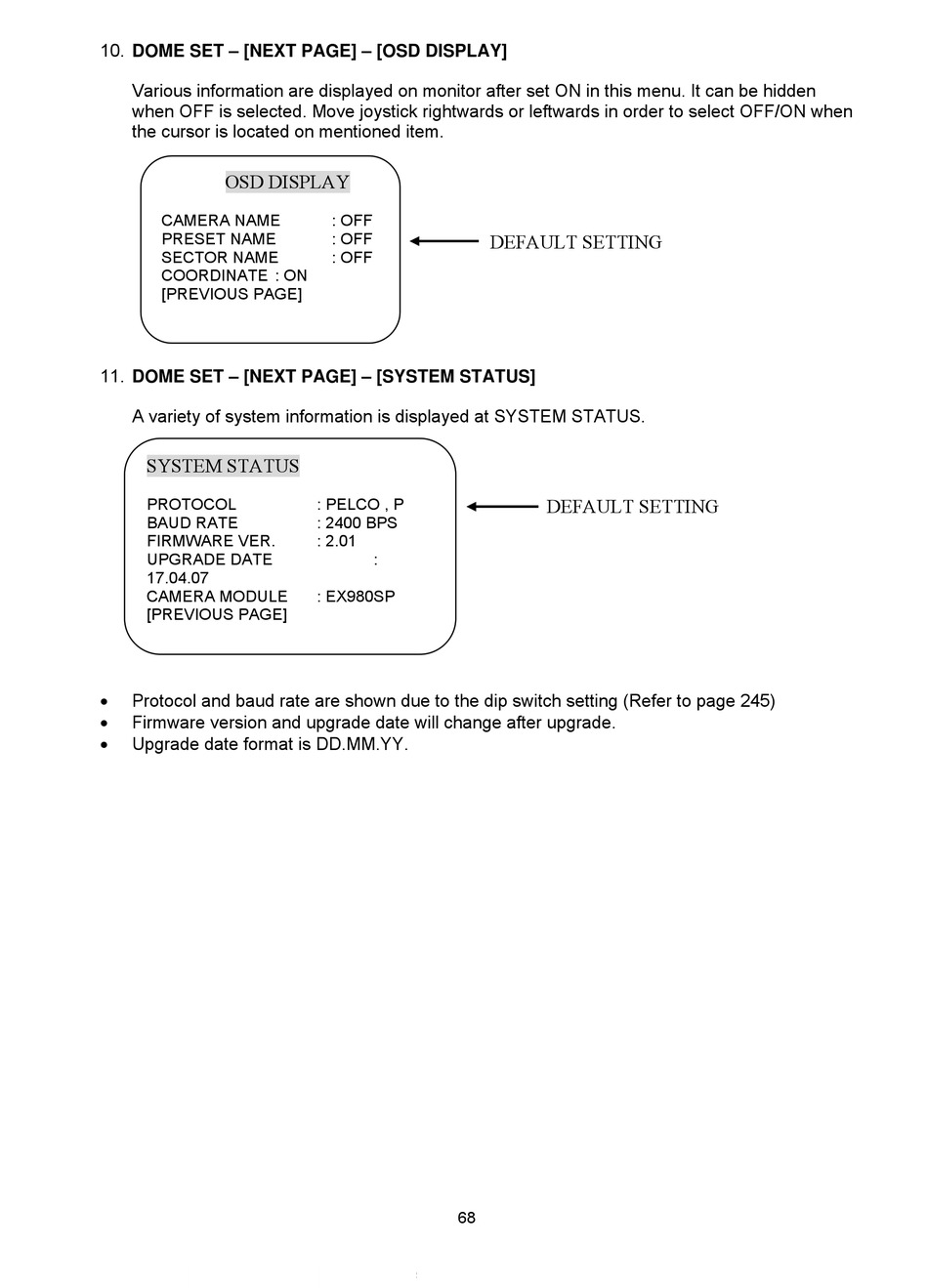

10. DOME SET – [NEXT PAGE] – [OSD DISPLAY]
Various information are displayed on monitor after set ON in this menu. It can be hidden
when OFF is selected. Move joystick rightwards or leftwards in order to select OFF/ON when
the cursor is located on mentioned item.
OSD DISPLAY
CAMERA NAME
PRESET NAME
SECTOR NAME
COORDINATE : ON
[PREVIOUS PAGE]
11. DOME SET – [NEXT PAGE] – [SYSTEM STATUS]
A variety of system information is displayed at SYSTEM STATUS.

SYSTEM STATUS

PROTOCOL
BAUD RATE
FIRMWARE VER.
UPGRADE DATE
17.04.07
CAMERA MODULE
[PREVIOUS PAGE]

Protocol and baud rate are shown due to the dip switch setting (Refer to page 245)

Firmware version and upgrade date will change after upgrade.

Upgrade date format is DD.MM.YY.
: OFF
: OFF
: OFF
: PELCO , P
: 2400 BPS
: 2.01
:
: EX980SP
68
DEFAULT SETTING
DEFAULT SETTING
