4. Installations Instructions

Connection Method

4.1
UNLOCK

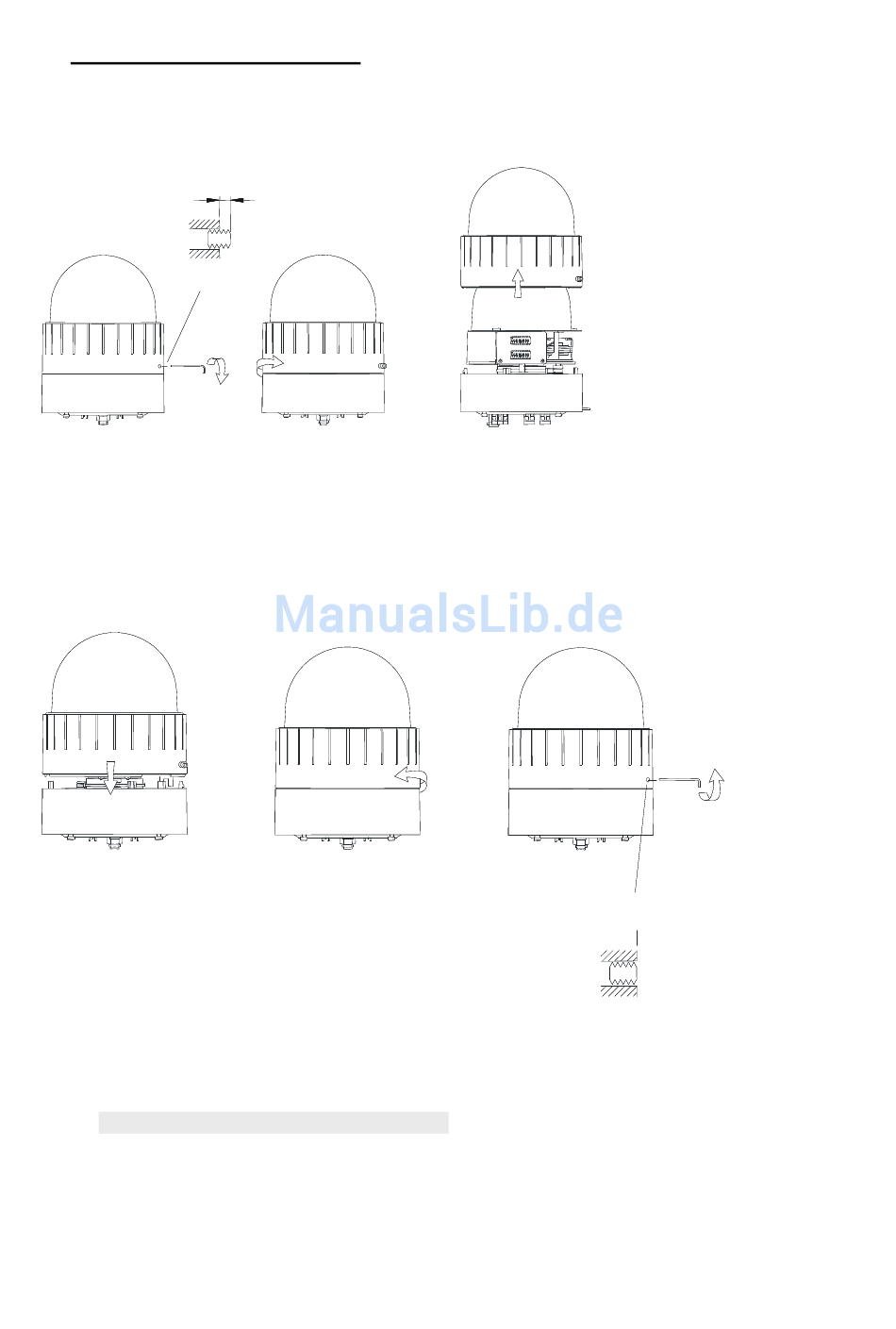

FIG.2
1. To separate camera body loosen Lock Screw (2 mm), turning the wrench counterclockwise.
(Don't pull the screw out) (FIG. 2)
Separate the upper body from the lower body by turning counterclockwise. (FIG. 3, 4)
2. After separating set DIP switches (Refer to the page 78)
FIG.5
3. To assemble camera body rotate the upper body clockwise to assemble both bodies.
(FIG. 5, 6). Screw up turning the wrench clockwise. (FIG. 7)
Don't screw to tight, it can cause defects.
2 mm
FIG.3
FIG.6
FIG.4
FIG.7
Screw up to flat with
the body surface
LOCK
