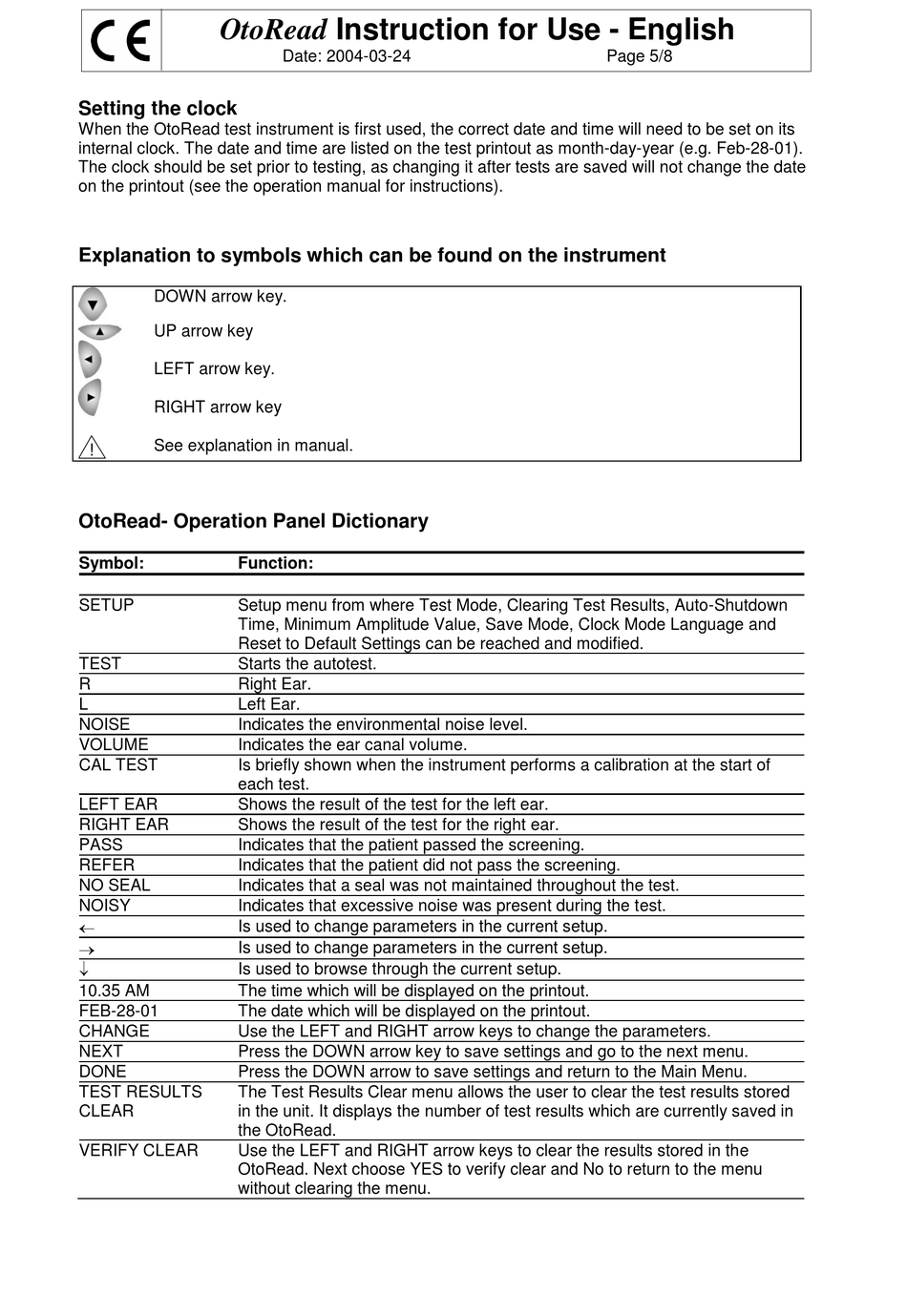

OtoRead Instruction for Use - English
Setting the clock
When the OtoRead test instrument is first used, the correct date and time will need to be set on its
internal clock. The date and time are listed on the test printout as month-day-year (e.g. Feb-28-01).
The clock should be set prior to testing, as changing it after tests are saved will not change the date
on the printout (see the operation manual for instructions).
Explanation to symbols which can be found on the instrument
DOWN arrow key.
UP arrow key
LEFT arrow key.
RIGHT arrow key
See explanation in manual.
!
OtoRead- Operation Panel Dictionary
Symbol: Function:
SETUP Setup menu from where Test Mode, Clearing Test Results, Auto-Shutdown
Time, Minimum Amplitude Value, Save Mode, Clock Mode Language and
Reset to Default Settings can be reached and modified.
TEST Starts the autotest.
R Right Ear.
L Left Ear.
NOISE Indicates the environmental noise level.
VOLUME Indicates the ear canal volume.
CAL TEST Is briefly shown when the instrument performs a calibration at the start of
each test.
LEFT EAR Shows the result of the test for the left ear.
RIGHT EAR Shows the result of the test for the right ear.
PASS Indicates that the patient passed the screening.
REFER Indicates that the patient did not pass the screening.
NO SEAL Indicates that a seal was not maintained throughout the test.
NOISY Indicates that excessive noise was present during the test.

Is used to change parameters in the current setup.

Is used to change parameters in the current setup.

Is used to browse through the current setup.
10.35 AM The time which will be displayed on the printout.
FEB-28-01 The date which will be displayed on the printout.
CHANGE Use the LEFT and RIGHT arrow keys to change the parameters.
NEXT Press the DOWN arrow key to save settings and go to the next menu.
DONE Press the DOWN arrow to save settings and return to the Main Menu.
TEST RESULTS The Test Results Clear menu allows the user to clear the test results stored
CLEAR in the unit. It displays the number of test results which are currently saved in
the OtoRead.
VERIFY CLEAR Use the LEFT and RIGHT arrow keys to clear the results stored in the
OtoRead. Next choose YES to verify clear and No to return to the menu
without clearing the menu.
Date: 2004-03-24 Page 5/8
